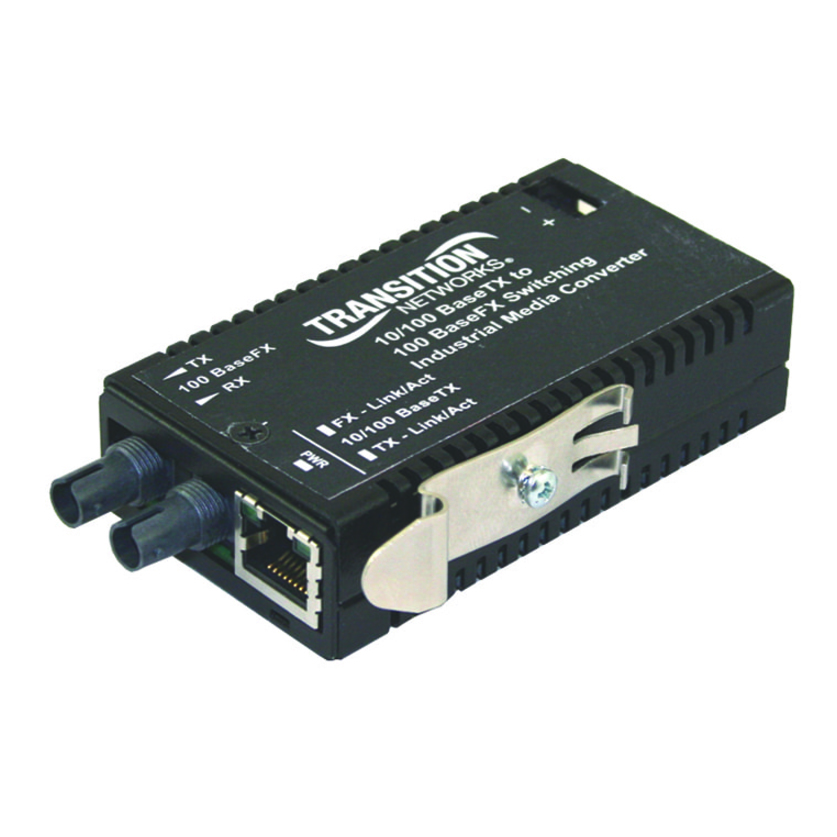

Lantronix M/E-ISW-FX-02 — M/E-ISW-02 Series ST Multimode Fast Ethernet Media Converter
$154.59$230.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100Base-TX (RJ-45) to 100Base-FX 1300nm multimode (ST) conversion with 2 km/1.2 mi. fiber reach
- 14.0 dB link budget for the M/E-ISW-FX-02 ST multimode configuration
- -40°C to 75°C operating temperature range for hardened or outdoor 10/100 environments
- 2-pin Terminal Block power input accepting 12-48 VDC and 24-36 VAC ± 10%
- Auto-Negotiation, Auto-MDI/MDIX, Link Pass Through, Automatic Link Restoration and Far-End-Fault (FEF)
- DIN Rail clip and velcro included; wall mount bracket sold separately
- 1.8” [46 mm] x 3.3” [85 mm] x 0.85” [22 mm] size for enclosures with space constraints
Lantronix M/E-ISW-FX-02 is a hardened Fast Ethernet Mini media converter for plug-and-play conversion between 10/100Base-TX copper and 100Base-FX fiber. This SKU provides a 1300nm multimode ST fiber interface with a listed 2 km/1.2 mi. reach and 14.0 dB link budget. The M/E-ISW-02 Series supports hardened or outdoor 10/100 environments with an operating temperature range of -40°C to 75°C. Its small mechanical size fits enclosures with space constraints. The converter uses a 2-pin Terminal Block power input and accepts 12-48 VDC and 24-36 VAC ± 10%. Unit and port LEDs provide quick status, and no configuration is required.
Ideal For
- Converting 10/100Base-TX copper to 100Base-FX fiber in hardened or outdoor 10/100 environments
- Extending Fast Ethernet over 1300nm multimode ST fiber up to 2 km/1.2 mi
- Adding fiber connectivity at the edge of the network where enclosure space is constrained
- Deploying media conversion in DIN Rail installations with terminal-block DC or AC power
Specifications
| MTBF | 41,680 hours (MIL‐HDBK‐217F); 114,580 hours (Bellcore7 V5.0) |
| Depth | 3.3” [85 mm] |
| Width | 1.8” [46 mm] |
| Height | 0.85” [22 mm] |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Standards | IEEE 802.3 |
| Link Budget | 14.0 dB |
| Power Input | 12-48 VDC and 24-36 VAC ± 10% |
| Certifications | FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark |
| Max Frame Size | 2,046 bytes |
| Power Connector | 2-pin Terminal Block |
| Media Conversion | 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (ST) [2 km/1.2 mi.] |
| Power Protection | Overload Current Protection; Reverse Polarity Protection |
| Included Mounting | DIN Rail clip and velcro |
| Power Consumption | 2.5 Watts |
| Included Accessory | Barrel connector pig-tail cable |
| Ingress Protection | IP20 |
| Ethernet Technology | Fast Ethernet |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40°C to 75°C |
Frequently Asked Questions
What copper and fiber interfaces does this SKU support?▾
The M/E-ISW-FX-02 converts 10/100Base-TX (RJ-45) to 100Base-FX 1300nm multimode (ST) with a listed fiber reach of 2 km/1.2 mi. and a 14.0 dB link budget.
What power input does the M/E-ISW-FX-02 use?▾
It accepts 12-48 VDC and 24-36 VAC ± 10% through a 2-pin Terminal Block. The power input includes Overload Current Protection and Reverse Polarity Protection.
Does this media converter require configuration?▾
No. The M/E-ISW-02 Series is listed as plug-and-play with no configuration required.
What mounting hardware is included?▾
DIN Rail clip and velcro are included. A wall mount bracket is sold separately.
