Lantronix M/E-ISW-02 Hardened Mini Fast Ethernet Media Converters
The M/E-ISW-02 Series is a hardened mini media converter that links 10/100Base-TX copper to 100Base-FX fiber in outdoor cabinets and industrial enclosures, rated from -40°C to 75°C with no configuration required.
From $224.00
Overview
About the Lantronix M/E-ISW-02 Series
Edge devices in traffic cabinets, kiosks and plant-floor enclosures often sit beyond copper's 100 m reach and in temperatures that office converters cannot handle. The M/E-ISW-02 Series (also written ME-ISW-FX-02) solves both: it converts 10/100Base-TX to 100Base-FX fiber, operates from -40°C to 75°C, and measures just 46 x 85 x 22 mm, so it fits enclosures with little spare room. It is plug-and-play, with auto-negotiation and Auto-MDI/MDIX on the copper port and fixed full duplex on fiber.
Power enters through a 2-pin terminal block that accepts 12 to 48 VDC or 24 to 36 VAC, with overload current and reverse polarity protection. A barrel connector pigtail is included for external adapters. Consumption is 2.5 W. Link Pass Through, Far-End-Fault and automatic link restoration help detect and recover from link failures, and the SFP model adds Active Link Pass Through and 10,240-byte frames.
Fiber options cover multimode with ST, SC or LC connectors and single-mode with SC, plus an open SFP slot for other optics. Three LEDs on the RJ-45 face show power, fiber link and activity, and copper link and activity. A DIN-rail clip and velcro are included, and the WMBM wall-mount bracket is sold separately. The housing is IP20 rated and the unit carries FCC Class A and CE marks.
Key capabilities
- -40°C to 75°C rated
- Operating range of -40°C to 75°C and storage to 85°C let the converter run in outdoor cabinets and unconditioned industrial spaces.
- Wide AC or DC input
- The terminal block accepts 12 to 48 VDC or 24 to 36 VAC, with overload and reverse polarity protection, matching common industrial and security power sources.
- Tiny footprint
- At 46 x 85 x 22 mm, the mini converter fits space-constrained enclosures and mounts with the included DIN-rail clip or velcro.
- No configuration needed
- Auto-negotiation, Auto-MDI/MDIX and fixed full-duplex fiber make installation plug-and-play, with unit and port LEDs for quick status checks.
- Fault propagation
- Link Pass Through and Far-End-Fault signal link loss to connected equipment, and automatic link restoration brings the link back when the fault clears.
How to choose the right M/E-ISW-02 Series part number
The fiber interface is the only difference between models. M/E-ISW-FX-02 (ST) and M/E-ISW-FX-02(SC) use 1300 nm multimode to 2 km with a 14.0 dB budget. M/E-ISW-FX-02(MMLC) is 1300 nm multimode with LC connectors to 2 km and an 11.0 dB budget. M/E-ISW-FX-02(SM) uses 1310 nm single-mode on SC to 20 km with a 19.0 dB budget. M/E-ISW-FX-02(SFP) has an open 100Base-FX SFP slot and supports jumbo frames to 10,240 bytes. For mains power, add the SPS-UA12DHT 12 VDC adapter or the 25165 DIN-rail supply.
Configure & order
Find your M/E-ISW-02 Series part number
Every orderable M/E-ISW-02 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
M/E-ISW-FX-02(SFP)
$224.00
Ships on backorder

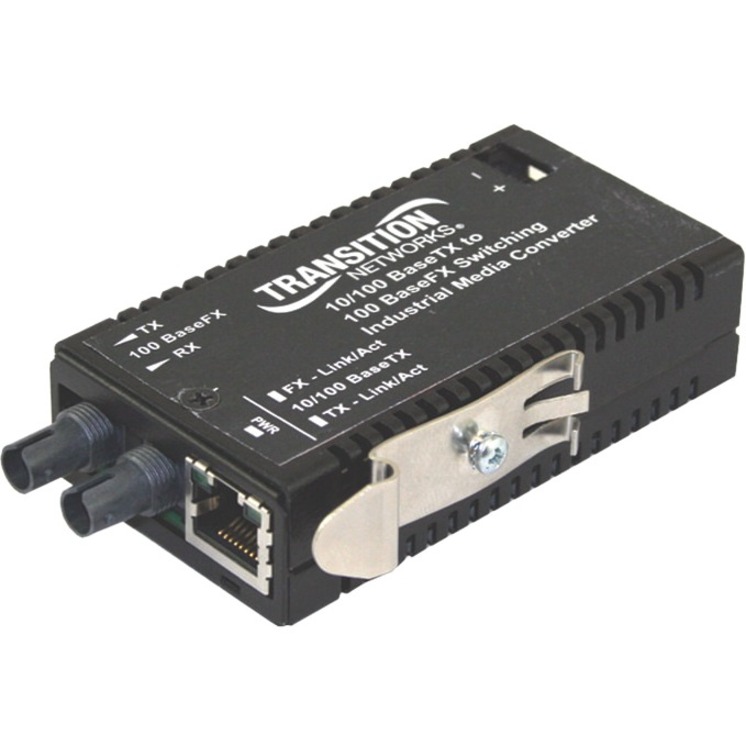

M/E-ISW-FX-02
$230.00
Ships on backorder

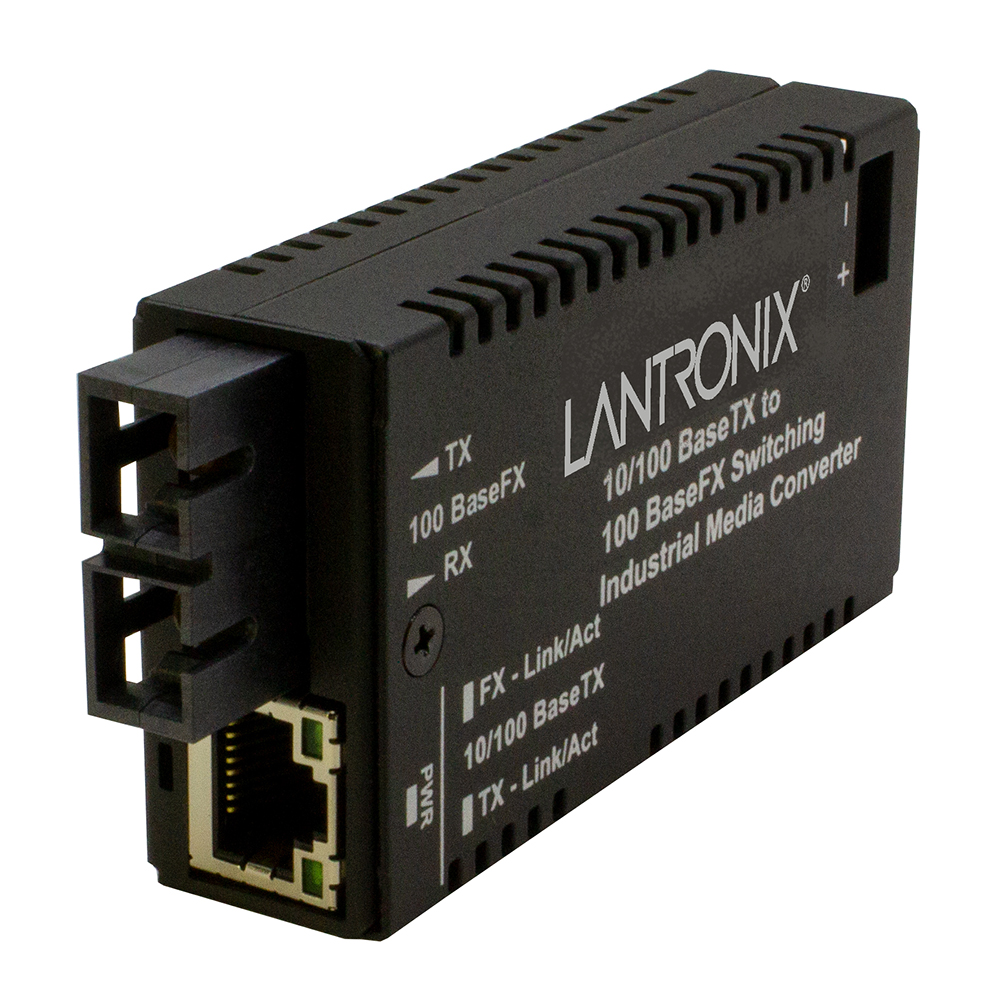

M/E-ISW-FX-02(SC)
$230.00
8 in stock

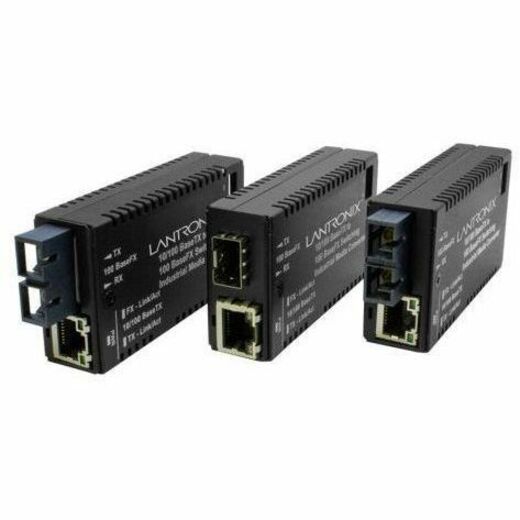

M/E-ISW-FX-02(MMLC)
$246.00
8 in stock

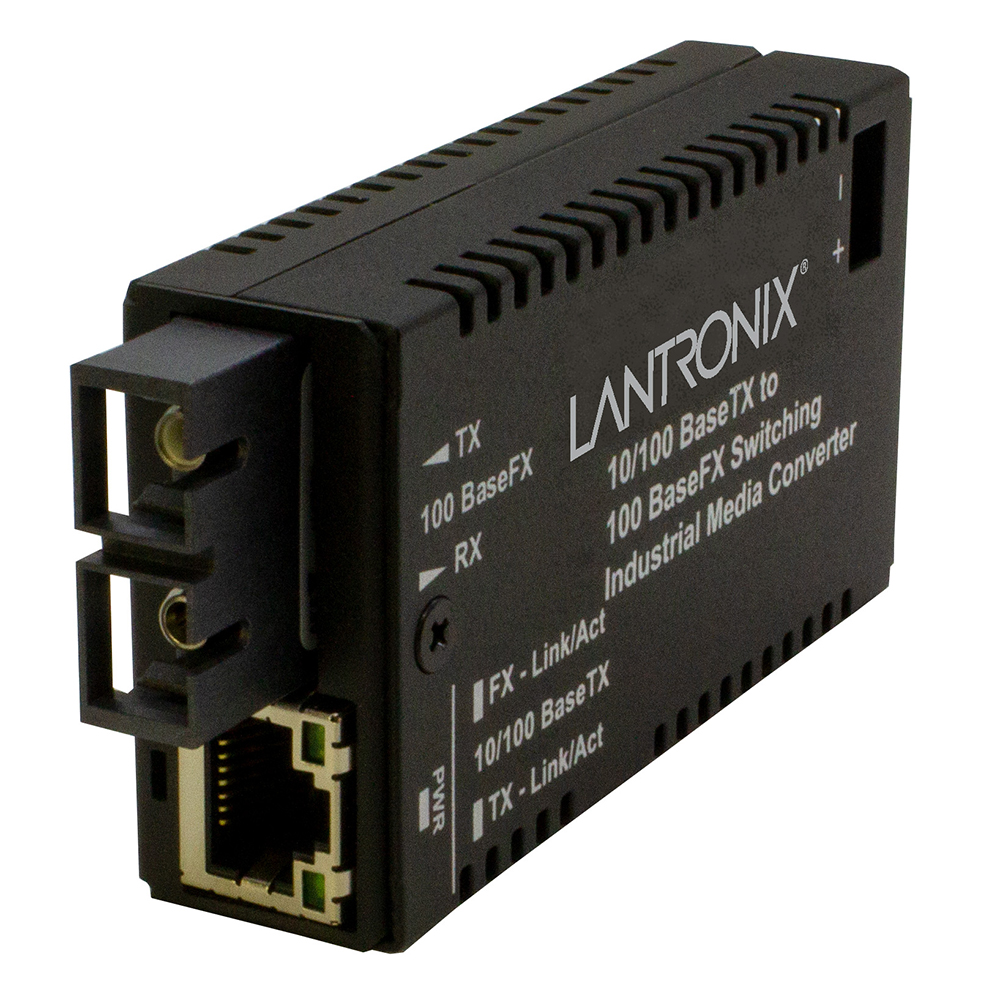

M/E-ISW-FX-02(SM)
$347.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the M/E-ISW-02 Series, organized by what it does — power, mounting & enclosures— each with why you'd add it.
Power
2 items
25165
25165
Industrial DIN rail mounted power supply with 12 V DC, 2 A output. It accepts 120 V AC or 230 V AC input and provides up to 24 W output power.
$65.00
Ships on backorder
SPS-UA12DHT
SPS-UA12DHT
AC power adapter with 90~264VAC input and 12VDC, 1.3A, 18 Watts output. It is listed with short circuit, overload, over voltage and overheating protection.
Mounting & enclosures
1 item
WMBM
WMBM
3.3” [84 mm] wall mount bracket kit for “Mini” Media Converters. It is listed as a compatible accessory for the M/GE-PSW-PSE-01 series.
$24.00
9 in stock
Compatibility taken from the Lantronix part-number tables for the M/E-ISW-02 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the M/E-ISW-02 Series is used
- Fiber links to IP cameras in outdoor enclosures
- Traffic and roadside cabinet device connectivity
- Plant-floor PLC and HMI links over fiber
- Copper-to-fiber conversion in space-constrained kiosks
M/E-ISW-02 Series datasheets & documentation
M/E-ISW-02 Series FAQ
What is the operating temperature of the M/E-ISW-02 media converter?
The M/E-ISW-02 Series operates from -40°C to 75°C and can be stored from -40°C to 85°C, at 5% to 95% non-condensing humidity. The housing is IP20 rated.
What power input does the M/E-ISW-FX-02 accept?
A 2-pin terminal block accepts 12 to 48 VDC or 24 to 36 VAC, plus or minus 10%. If your source does not match, the SPS-UA12DHT 12 VDC adapter or 25165 DIN-rail supply can be used, and a barrel connector pigtail is included.
Which M/E-ISW-02 model do I need for single-mode fiber?
M/E-ISW-FX-02(SM) is the fixed single-mode model, using 1310 nm on SC connectors to 20 km. For other single-mode distances or connectors, M/E-ISW-FX-02(SFP) accepts a 100Base-FX SFP of your choice.
Does the M/E-ISW-02 support jumbo frames?
Only the SFP version. M/E-ISW-FX-02(SFP) handles frames up to 10,240 bytes, while the fixed-fiber ST, SC, LC and single-mode models support a maximum frame size of 2,046 bytes.
How is the M/E-ISW-02 mounted?
A DIN-rail clip and velcro are included in the box. The WMBM wall-mount bracket, a 3.3-inch bracket that fits all Lantronix mini media converters, is sold separately. The compact 46 x 85 x 22 mm body suits crowded enclosures.
