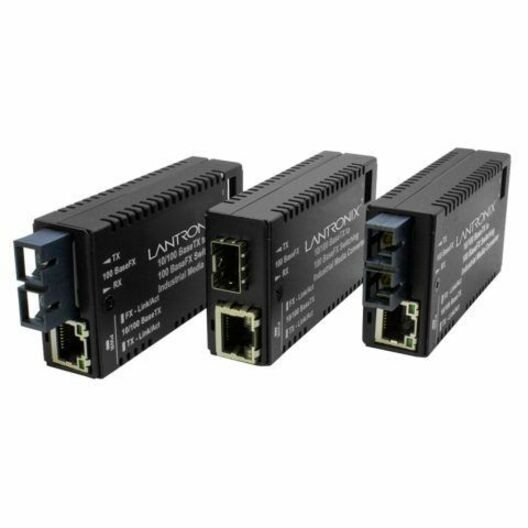

Lantronix M/E-ISW-FX-02(SC) — M/E-ISW-02 Series SC Multimode Media Converter
$230.00
Ships from and sold by A5 IT
%20%E2%80%94%20M%2FE-ISW-02%20Series%20SC%20Multimode%20Media%20Converter&mpn=M%2FE-ISW-FX-02(SC)&price=23000&image=https%3A%2F%2Fcontent.etilize.com%2FMain%2F1056489586.jpg&vendor=Lantronix){kind=link}
Free 2-3 Day Shipping within the United StatesArrives by Thursday, Oct 29
New, with full manufacturer warranty
Key Features
- 10/100Base-TX RJ-45 to 100Base-FX SC multimode conversion with 1300nm fiber, 2 km/1.2 mi. reach and 14.0 dB link budget
- -40°C to 75°C operating range for hardened or outdoor 10/100 environments
- 2-pin Terminal Block power input accepting 12-48 VDC and 24-36 VAC ± 10%
- Auto-Negotiation, Auto-MDI/MDIX, Link Pass Through, Automatic Link Restoration and Far-End-Fault (FEF)
- Unit and Port LEDs showing power, fiber link/activity and copper link/activity
- 1.8” [46 mm] x 3.3” [85 mm] x 0.85” [22 mm] size for enclosures with space constraints
- DIN Rail clip and velcro included; wall mount bracket sold separately
Lantronix M/E-ISW-FX-02(SC) is an M/E-ISW-02 Series hardened Fast Ethernet Mini media converter for 10/100Base-TX copper to 100Base-FX fiber conversion. This SKU uses 1300nm multimode SC fiber with 2 km/1.2 mi. reach and a 14.0 dB link budget. The converter is built for hardened or outdoor 10/100 environments, with an operating temperature range of -40°C to 75°C. Its 1.8” [46 mm] x 3.3” [85 mm] x 0.85” [22 mm] size helps fit enclosures with space constraints. No configuration is required. The M/E-ISW-02 Series provides Auto-Negotiation, Auto-MDI/MDIX, Link Pass Through, Automatic Link Restoration, Far-End-Fault (FEF), and unit and port LEDs for quick status.
Ideal For
- Converting 10/100Base-TX copper links to 100Base-FX fiber in hardened or outdoor 10/100 environments
- Extending Fast Ethernet connections to edge network devices over 1300nm multimode SC fiber
- Adding fiber conversion inside enclosures with space constraints
- Deploying no-configuration media conversion with DIN Rail clip and velcro mounting included
Specifications
| Depth | 3.3” [85 mm] |
| Width | 1.8” [46 mm] |
| Height | 0.85” [22 mm] |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Standards | IEEE 802.3 |
| Link Budget | 14.0 dB |
| Power Input | 12-48 VDC and 24-36 VAC ± 10% |
| Certifications | FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark |
| Max Frame Size | 2,046 bytes |
| Fiber Interface | 100Base-FX 1300nm multimode (SC) [2 km/1.2 mi.] |
| Power Connector | 2-pin Terminal Block |
| Copper Interface | 10/100Base-TX (RJ-45) [100 m/328 ft.] |
| MTBF Milhdbk217f | 41,680 hours |
| Power Consumption | 2.5 Watts |
| Ingress Protection | IP20 |
| MTBF Bellcore7 V50 | 114,580 hours |
| Ethernet Technology | Fast Ethernet |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40°C to 75°C |
Frequently Asked Questions
What copper and fiber interfaces does M/E-ISW-FX-02(SC) provide?▾
This SKU converts 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (SC) [2 km/1.2 mi.] with a 14.0 dB link budget.
What operating temperature range is listed for the M/E-ISW-02 Series?▾
The operating temperature range is -40°C to 75°C.
What power input does this media converter accept?▾
The unit accepts 12-48 VDC and 24-36 VAC ± 10% through a 2-pin Terminal Block.
What mounting hardware is included?▾
A DIN Rail clip and velcro are included. A wall mount bracket is sold separately.
