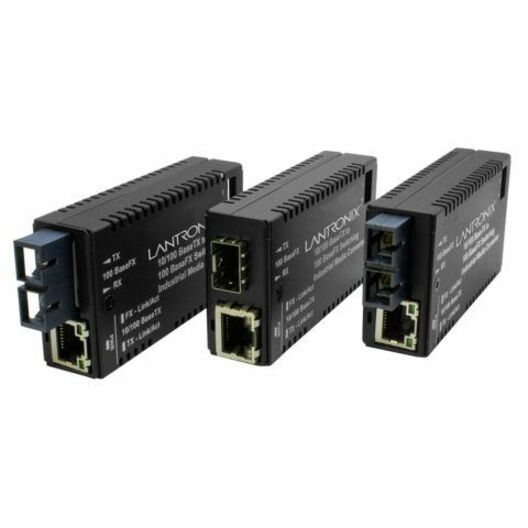

Lantronix M/E-ISW-FX-02(MMLC) — M/E-ISW-02 Series LC Multimode Media Converter
$165.35$246.00
Ships from and sold by A5 IT
%20%E2%80%94%20M%2FE-ISW-02%20Series%20LC%20Multimode%20Media%20Converter&mpn=M%2FE-ISW-FX-02(MMLC)&price=16535&image=https%3A%2F%2Fcontent.etilize.com%2FMain%2F1059824159.jpg&vendor=Lantronix){kind=link}
Free 2-3 Day ShippingArrives by Thursday, Oct 15
New, with full manufacturer warranty
Key Features
- 10/100Base-TX to 100Base-FX conversion from RJ-45 copper [100 m/328 ft.] to 1300nm multimode LC fiber [2 km/1.2 mi.]
- Hardened operation from -40°C to 75°C
- Plug-and-play setup with no configuration required
- Link monitoring with unit and port LEDs, Link Pass Through, Automatic Link Restoration, and Far-End-Fault (FEF)
- Flexible power input through a 2-pin Terminal Block for 12-48 VDC and 24-36 VAC ± 10%
- Compact enclosure measuring 1.8” [46 mm] x 3.3” [85 mm] x 0.85” [22 mm]
- Mounting options with DIN Rail clip and velcro included; wall mount bracket sold separately
Lantronix M/E-ISW-02 Series is a hardened Mini Fast Ethernet media converter for 10/100Base-TX to 100Base-FX conversion in hardened or outdoor 10/100 environments. This SKU converts RJ-45 copper [100 m/328 ft.] to 1300nm multimode LC fiber [2 km/1.2 mi.] with an 11.0 dB link budget. Unit and port LEDs provide quick status. Auto-Negotiation, Auto-MDI/MDIX, Link Pass Through, Automatic Link Restoration, and Far-End-Fault (FEF) are included, with fixed full-duplex on fiber. It operates from -40°C to 75°C and accepts 12-48 VDC and 24-36 VAC ± 10% through a 2-pin Terminal Block. A DIN Rail clip and velcro are included; a wall mount bracket is sold separately.
Ideal For
- Converting copper Ethernet to fiber in hardened or outdoor 10/100 environments
- Reaching edge devices over 100Base-FX 1300nm multimode LC fiber up to 2 km/1.2 mi
- Installing media conversion inside enclosures with space constraints
- Adding fiber links where unit and port LEDs, Link Pass Through, Automatic Link Restoration, and Far-End-Fault (FEF) are required
Specifications
| Series | M/E-ISW-02 Series |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Standards | IEEE 802.3 |
| Fiber Mode | Multimode |
| Link Budget | 11.0 dB |
| Input Voltage | 12-48 VDC and 24-36 VAC ± 10% |
| Certifications | FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark |
| Fiber Distance | 2 km/1.2 mi. |
| Max Frame Size | 2,046 bytes |
| Copper Distance | 100 m/328 ft |
| Fiber Connector | LC |
| Fiber Interface | 100Base-FX |
| Copper Interface | 10/100Base-TX (RJ-45) |
| Fiber Wavelength | 1300nm |
| Media Conversion | 10/100Base-TX to 100Base-FX |
| MTBF Milhdbk217f | 41,680 hours |
| Power Consumption | 2.5 Watts |
| Current Protection | Overload Current Protection |
| Ingress Protection | IP20 |
| MTBF Bellcore7 V50 | 114,580 hours |
| Power LED Location | Below RJ-45 |
| Polarity Protection | Reverse Polarity Protection |
| Storage Temperature | -40°C to 85°C |
| Dimensions W X D X H | 1.8” [46 mm] x 3.3” [85 mm] x 0.85” [22 mm] |
| Operating Temperature | -40°C to 75°C |
| Power Input Connector | 2-pin Terminal Block |
| Fx-link Act LED Location | Upper Left on RJ-45 |
Frequently Asked Questions
What copper and fiber interfaces does M/E-ISW-FX-02(MMLC) provide?▾
This SKU converts 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (LC) [2 km/1.2 mi.] with an 11.0 dB link budget.
Does this media converter require configuration?▾
No. The M/E-ISW-02 Series lists no configuration required.
What power input does it accept?▾
It accepts 12-48 VDC and 24-36 VAC ± 10% through a 2-pin Terminal Block. Overload Current Protection and Reverse Polarity Protection are included.
What mounting options are included?▾
A DIN Rail clip and velcro are included. The wall mount bracket is sold separately.
