Lantronix N-FXE-LC-02B — N-FXE-02B Series 100Base-FX PCIe LC NIC
$161.72$240.80
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 100Base-FX 1300nm multimode LC fiber with [2 km/1.2 mi.] distance and 13.0 dB Link Budget
- PCI-Express x1 Interface for PCIe systems
- Up to 200Mbps full-duplex bandwidth capacity for Fast Ethernet fiber networks
- IEEE 802.1Q VLAN tagging support with IEEE 802.3x Full-Duplex Flow Control
- PXE remote boot support with PXE Boot ROM
- Wake-on-LAN (WoL) power management
- Standard bracket attached, low-profile bracket included
- PCI-Express x1 Interface

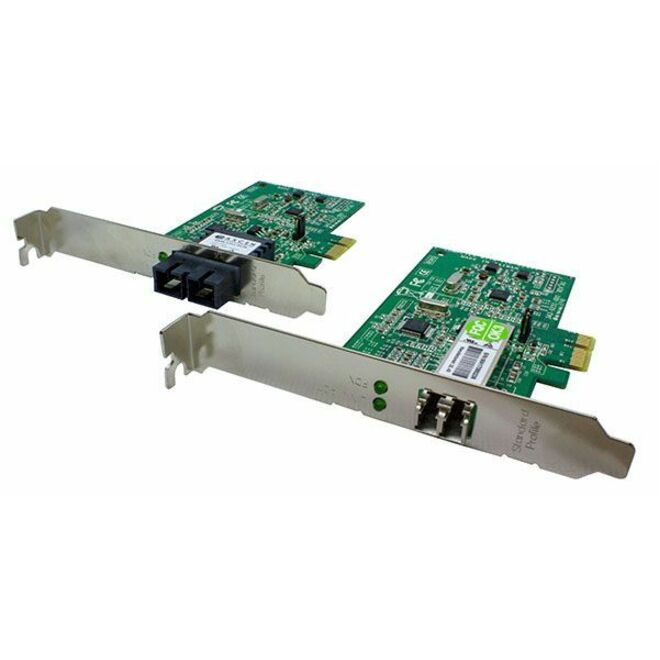

Lantronix N-FXE-LC-02B is an N-FXE-02B Series Fiber Fast Ethernet to PCI-Express bus adapter for 100Base-FX networks. This SKU provides 100Base-FX 1300nm multimode connectivity with an LC connector, [2 km/1.2 mi.] distance, and 13.0 dB Link Budget. The N-FXE-02B Series provides up to 200Mbps full-duplex bandwidth capacity and supports standards-based features including IEEE 802.3x Full-Duplex Flow Control and IEEE 802.1Q VLAN tagging. The PCI-Express design is built for PCI-Express systems that need to build or connect to Fast Ethernet fiber networks. The series also lists PXE remote boot support, Wake-on-LAN power management, Microsoft certified drivers, RoHS Compliance, and standard and low-profile bracket support.
Ideal For
- Connecting PCI-Express systems to Fast Ethernet fiber networks
- Adding LC multimode 100Base-FX optical fiber networking to a server
- Using PXE remote boot support on a fiber network interface card
- Deploying VLAN-tagged Fast Ethernet connections with IEEE 802.1Q support
Specifications
| Slot | PCIe 1.1 |
| Depth | 4.25” [108 mm] |
| Height | 2.70” [68.5 mm] |
| Series | N-FXE-02B Series |
| Weight | 1 lb. [0.45 kg] |
| Fdx LED | ON = Full-duplex link |
| Altitude | 0 – 10,000 ft |
| Distance | 2 km/1.2 mi. |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3u; IEEE 802.3x; IEEE 802.1P; IEEE 802.1Q |
| Warranty | Lifetime |
| Fiber Mode | Multimode |
| Wavelength | 1300nm |
| Link Budget | 13.0 dB |
| Power Input | +3.3 VDC @ 0.7A |
| Link Act LED | ON = communication link; FLASHING = activity on link |
| Certifications | EMI Standard, FCC Class B, CE Mark, RoHS |
| Host Interface | PCI-Express x1 Interface |
| Fiber Connector | LC |
| Software Support | Windows 2003, 2008, 2012, Windows XP, Vista, Linux 2.4.x, 2.6.x, Novell Netware 5.x, 6.x, Windows 7, 8, 10, 11 |
| Network Interface | 100Base-FX |
| Power Consumption | 1.2 Watts (max) |
| Bandwidth Capacity | Up to 200Mbps full-duplex bandwidth capacity |
| Boot Server Support | PXE Boot ROM |
| Storage Temperature | -15°C to 65°C |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What fiber connector does N-FXE-LC-02B use?▾
It uses 100Base-FX 1300nm multimode fiber with an LC connector and a listed [2 km/1.2 mi.] distance.
Does this PCIe fiber NIC support PXE remote boot?▾
Yes. The N-FXE-02B Series lists PXE remote boot support and Boot Server Support: PXE Boot ROM.
What host interface does this card use?▾
The series lists a PCI-Express x1 Interface and PCIe 1.1 slot support.
Is a low-profile bracket included?▾
Yes. The series lists standard bracket attached, low-profile bracket included.
