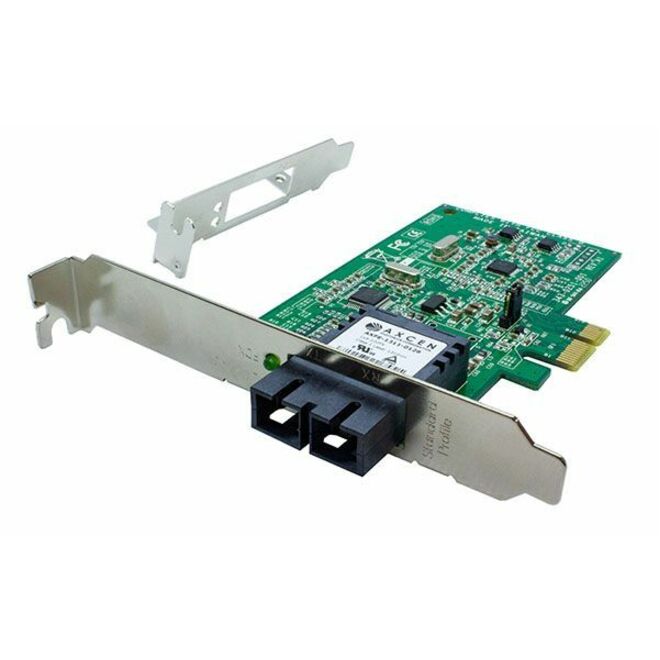

Lantronix N-FXE-SC-02B — N-FXE-02B Series 100Base-FX SC PCIe NIC
$127.94$190.40
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 100Base-FX 1300nm multimode SC fiber connection with 2 km/1.2 mi. reach
- PCI-Express x1 interface compliant with PCIe Rev 1.1
- 200Mbps full-duplex bandwidth capacity
- IEEE 802.1Q VLAN tagging and IEEE 802.3x full-duplex flow control
- PXE remote boot support with PXE Boot ROM
- Wake-on-LAN (WoL) power management
- Standard bracket attached with low-profile bracket included
- PCI-Express x1 Interface
The Lantronix N-FXE-SC-02B is the SC multimode model in the N-FXE-02B Series of PCIe Fast Ethernet Fiber Network Interface Cards. It connects PCI-Express systems to 100Base-FX fiber networks over 1300nm multimode fiber at 2 km/1.2 mi., with a 12.0 dB link budget. The N-FXE-02B Series provides up to 200Mbps full-duplex bandwidth capacity and supports VLAN filtering packet processing, IEEE 802.1Q VLAN tagging, IEEE 802.3x full-duplex flow control and IPv6. It includes PXE remote boot support, Wake-on-LAN power management, Microsoft certified drivers, a standard bracket attached and a low-profile bracket included.
Ideal For
- Building or connecting PCI-Express systems to Fast Ethernet fiber networks
- Adding 100Base-FX SC multimode connectivity with 2 km/1.2 mi. reach
- PXE remote boot deployments using PXE Boot ROM support
- Installations requiring a standard bracket or included low-profile bracket
Specifications
| Slot | PCIe 1.1 |
| Depth | 4.25” [108 mm] |
| Height | 2.70” [68.5 mm] |
| Series | N-FXE-02B Series |
| Weight | 1 lb. [0.45 kg] |
| Fdx LED | ON = Full-duplex link |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3u; IEEE 802.3x; IEEE 802.1P; IEEE 802.1Q |
| Warranty | Lifetime |
| Fiber Mode | Multimode |
| Link Budget | 12.0 dB |
| Link Act LED | ON = communication link; FLASHING = activity on link |
| Network Type | 100Base-FX |
| Certifications | EMI Standard, FCC Class B, CE Mark, RoHS |
| Fiber Distance | 2 km/1.2 mi. |
| Host Interface | PCI-Express x1 Interface |
| Fiber Connector | SC |
| Fiber Wavelength | 1300nm |
| Power Consumption | 1.2 Watts (max), +3.3 VDC @ 0.7A |
| Bandwidth Capacity | Up to 200Mbps full-duplex |
| Boot Server Support | PXE Boot ROM |
| Storage Temperature | -15°C to 65°C |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
Which fiber connector does N-FXE-SC-02B use?▾
N-FXE-SC-02B is the SC multimode version of the N-FXE-02B Series. The part row lists 100Base-FX 1300nm multimode (SC) with 2 km/1.2 mi. reach and a 12.0 dB link budget.
What host interface does this NIC use?▾
The N-FXE-02B Series uses a PCI-Express x1 interface and lists PCIe 1.1 under Slots.
Does it support PXE remote boot?▾
Yes. The N-FXE-02B Series lists PXE remote boot support and PXE Boot ROM.
Is a low-profile bracket included?▾
The series lists a standard bracket attached and a low-profile bracket included.
