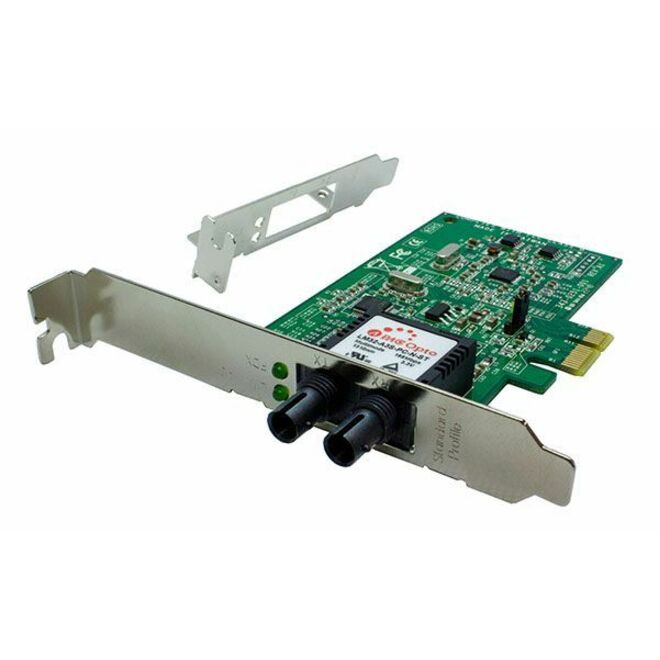

Lantronix N-FXE-ST-02B N-FXE-02B Series 100Base-FX PCIe fiber network interface card with ST multimode connector

Lantronix N-FXE-ST-02B — N-FXE-02B Series 100Base-FX PCIe Fiber NIC

Name: Lantronix N-FXE-ST-02B — N-FXE-02B Series 100Base-FX PCIe Fiber NIC
Brand: Lantronix
SKU: N-FXE-ST-02B
Price: 127.92 USD
Availability: BackOrder

Lantronix|

MPN: N-FXE-ST-02B

UPC: 783384255210

Available on Backorder

$127.92$190.40

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

100Base-FX 1300nm multimode ST fiber interface with 2 km/1.2 mi. reach and 12.0 dB link budget
PCI-Express x1 Interface for PCI-Express systems
Up to 200Mbps full-duplex bandwidth capacity
IEEE 802.1Q VLAN tagging support
PXE remote boot support with PXE Boot ROM
Standard bracket attached with low-profile bracket included
PCI-Express x1 Interface
IEEE 802.3x Full-Duplex Flow Control

Lantronix N-FXE-ST-02B is an N-FXE-02B Series Fiber Fast Ethernet to PCI-Express bus adapter for 100Base-FX networks. It provides up to 200Mbps full-duplex bandwidth capacity and complies with IEEE 802.3u and 100Base-FX standards. The adapter supports IEEE 802.3x Full-Duplex Flow Control, IEEE 802.1Q VLAN tagging, IPv6, Wake-on-LAN power management, Microsoft certified drivers, PXE remote boot support, UEFI when the PC platform BIOS supports it, MSI, MSI-X, TCP Segmentation Offload, Jumbo Frame and ACPI when the PC BIOS supports it. This SKU is the ST multimode configuration: 100Base-FX 1300nm multimode (ST) [2 km/1.2 mi.] with a 12.0 dB link budget. A standard bracket is attached, and a low-profile bracket is included.

Ideal For

Connecting PCI-Express systems to Fast Ethernet fiber networks
Adding 100Base-FX 1300nm multimode ST fiber connectivity
Deploying PXE remote boot with a PCIe fiber network adapter
Installing the same adapter in standard or low-profile chassis slots

Specifications

Slot	PCIe 1.1
Depth	4.25” [108 mm]
Height	2.70” [68.5 mm]
Series	N-FXE-02B Series
Weight	1 lb. [0.45 kg]
Fdx LED	ON = Full-duplex link
Altitude	0 – 10,000 ft
Humidity	5% to 95% (non-condensing)
Standard	IEEE 802.3u; IEEE 802.3x; IEEE 802.1P; IEEE 802.1Q
Warranty	Lifetime
Fiber Mode	Multimode
Wavelength	1300nm
Link Budget	12.0 dB
Link Act LED	ON = communication link; FLASHING = activity on link
Certification	EMI Standard; FCC Class B; CE Mark; RoHS
Link Distance	2 km/1.2 mi.
Host Interface	PCI-Express x1 Interface
Fiber Connector	ST
Software Support	Windows 2003, 2008, 2012, Windows XP, Vista, Linux 2.4.x, 2.6.x, Novell Netware 5.x, 6.x, Windows 7, 8, 10, 11
Network Interface	100Base-FX
Power Consumption	1.2 Watts (max), +3.3 VDC @ 0.7A
Data Transfer Rate	200 Mbit/s
Boot Server Support	PXE Boot ROM
Storage Temperature	-15°C to 65°C
Operating Temperature	0°C to 50°C

Documentation

Additional pdf1

Additional pdf2

Product Brief

N-FXE-02B Series User Guide Rev B

Frequently Asked Questions

Which fiber connector does N-FXE-ST-02B use?▾

N-FXE-ST-02B is the ST multimode version. The part row lists 100Base-FX 1300nm multimode (ST) with a 2 km/1.2 mi. link distance and 12.0 dB link budget.

Does this network interface card support PXE boot?▾

Yes. The N-FXE-02B Series features PXE remote boot support, and the technical specs list Boot Server Support as PXE Boot ROM.

Which operating systems are listed for software support?▾

The N-FXE-02B Series lists support for Windows 2003, 2008, 2012, Windows XP, Vista, Linux 2.4.x, 2.6.x, Novell Netware 5.x, 6.x, and Windows 7, 8, 10, 11.

Is a low-profile bracket included?▾

Yes. The series features state that the standard bracket is attached and the low-profile bracket is included.
