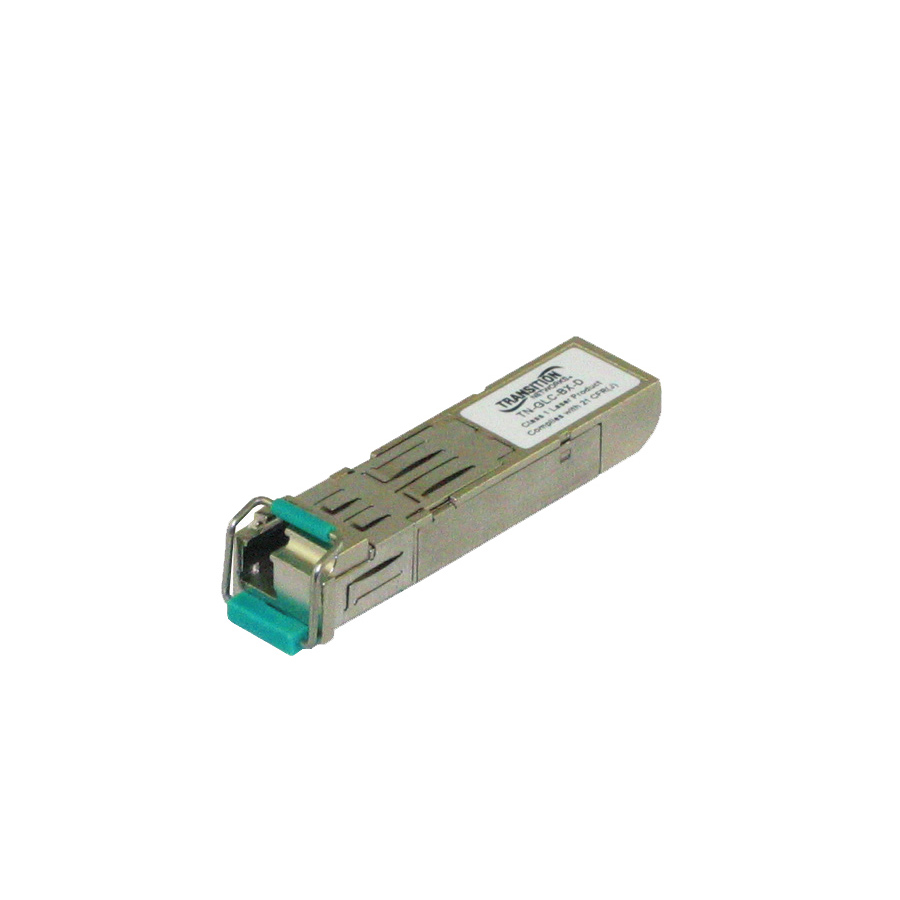

Lantronix TN-GLC-BX-D-20 — TN-GLC-BX Series 1000Base-BX SFP 20 km
$206.40$307.40
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-BX Gigabit Ethernet over single-mode optical fiber
- 1490nm TX/1310nm RX wavelength pairing for the D-20 configuration
- 20 km/12.4 mi. distance with 11.0 dB link budget
- 1 LC 1000Base-BX network interface for single fiber single mode connections
- DMI support listed for this SKU
- 3.3V power input with 0.66 Watts power consumption
- 0°C to 70°C operating temperature range
Lantronix TN-GLC-BX-D-20 is a Cisco compatible TN-GLC-BX Series SFP module for 1000Base-BX Gigabit Ethernet over single fiber single mode optical fiber. It uses an LC interface with 1490nm TX/1310nm RX optics and DMI. This D-20 configuration is listed for 20 km/12.4 mi. links with an 11.0 dB link budget. It operates from 0°C to 70°C and uses 3.3V power input with 0.66 Watts power consumption. The TN-GLC-BX Series is listed to IEEE 802.3. This SKU is UL Listed and carries a Lifetime warranty.
Ideal For
- 1000Base-BX Gigabit Ethernet optical network connections
- Data networking over single-mode optical fiber
- Single fiber single mode LC links using 1490nm TX/1310nm RX optics
- 20 km/12.4 mi. SFP connections with DMI
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Warranty | Lifetime |
| Standards | IEEE 802.3 |
| Link Budget | 11.0 dB |
| Power Input | 3.3V |
| Product Type | SFP (mini-GBIC) |
| Certification | UL Listed |
| TAA Compliant | Yes |
| Connector Type | LC |
| Product Series | TN-GLC-BX |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-BX |
| Receive Wavelength | 1310nm |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Transmit Wavelength | 1490nm |
| Fiber Mode Supported | Single-mode |
| Media Type Supported | Optical Fiber |
| Operating Temperature | 0°C to 70°C |
| Total Number Of Ports | 1 |
| Interfaces Ports Details | 1 x LC 1000Base-BX Network |
| Maximum Distance Supported | 20 km/12.4 mi. |
Frequently Asked Questions
What wavelength pairing does TN-GLC-BX-D-20 use?▾
TN-GLC-BX-D-20 uses 1490nm TX and 1310nm RX optics.
What distance does this SFP support?▾
The listed distance is 20 km/12.4 mi. with an 11.0 dB link budget.
What fiber type and connector does it use?▾
It is listed for single fiber single mode optical fiber with an LC interface.
Does TN-GLC-BX-D-20 include DMI?▾
Yes. The SKU description lists the module with DMI.
