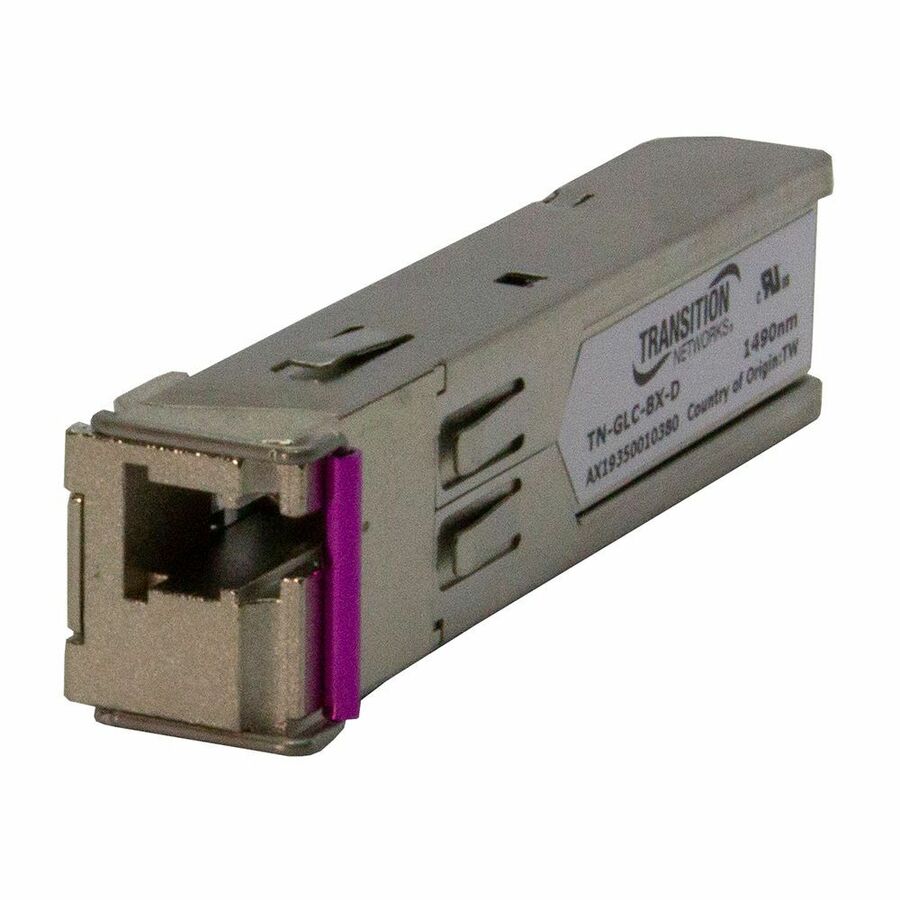

Lantronix TN-GLC-BX-D — TN-GLC-BX Series 1000Base-BX SFP Module
$153.70
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-BX single fiber single mode (LC) operation
- 1490nm TX/1310nm RX wavelength pair
- 10 km/6.2 mi. distance support
- 10.0 dB link budget
- DMI support
- 3.3V power input
- UL Listed certification
The Lantronix TN-GLC-BX-D is a Cisco Compatible Gigabit SFP module in the TN-GLC-BX Series. It supports 1000Base-BX over single fiber single mode optical fiber with an LC interface and DMI. This D variant uses 1490nm transmit and 1310nm receive wavelengths. The part row lists a 10 km/6.2 mi. distance and a 10.0 dB link budget. TN-GLC-BX-D runs on 3.3V power input with 0.66 Watts power consumption. It is rated for 0°C to 70°C operating temperature and -40°C to 85°C storage temperature.
Ideal For
- 1000Base-BX Gigabit Ethernet links over single fiber single mode optical fiber
- Cisco compatible SFP deployments using LC optical interfaces
- 10 km/6.2 mi. optical network connections
- Installations that require DMI support in a TN-GLC-BX Series SFP
Specifications
| DMI | With DMI |
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Warranty | Lifetime |
| Standards | IEEE 802.3 |
| Link Budget | 10.0 dB |
| Power Input | 3.3V |
| Product Type | SFP (mini-GBIC) |
| TAA Compliant | Yes |
| Certifications | UL Listed |
| Product Series | TN-GLC-BX Series |
| Wavelength Pair | 1490nm TX/1310nm RX |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-BX |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Fiber Mode Supported | Single-mode |
| Media Type Supported | Optical Fiber |
| Operating Temperature | 0°C to 70°C |
| Interfaces Ports Details | 1 x LC 1000Base-BX Network |
| Maximum Distance Supported | 10 km |
Frequently Asked Questions
What network type does TN-GLC-BX-D support?▾
TN-GLC-BX-D is a 1000Base-BX Gigabit SFP module for single fiber single mode optical fiber with an LC interface.
What are the transmit and receive wavelengths?▾
It uses 1490nm TX and 1310nm RX wavelengths.
What distance does this SFP support?▾
The part row lists a 10 km/6.2 mi. distance and a 10.0 dB link budget.
Is this a Cisco compatible SFP module?▾
Yes. The Lantronix page describes the TN-GLC-BX Series as Cisco Compatible Gigabit SFP Modules.
