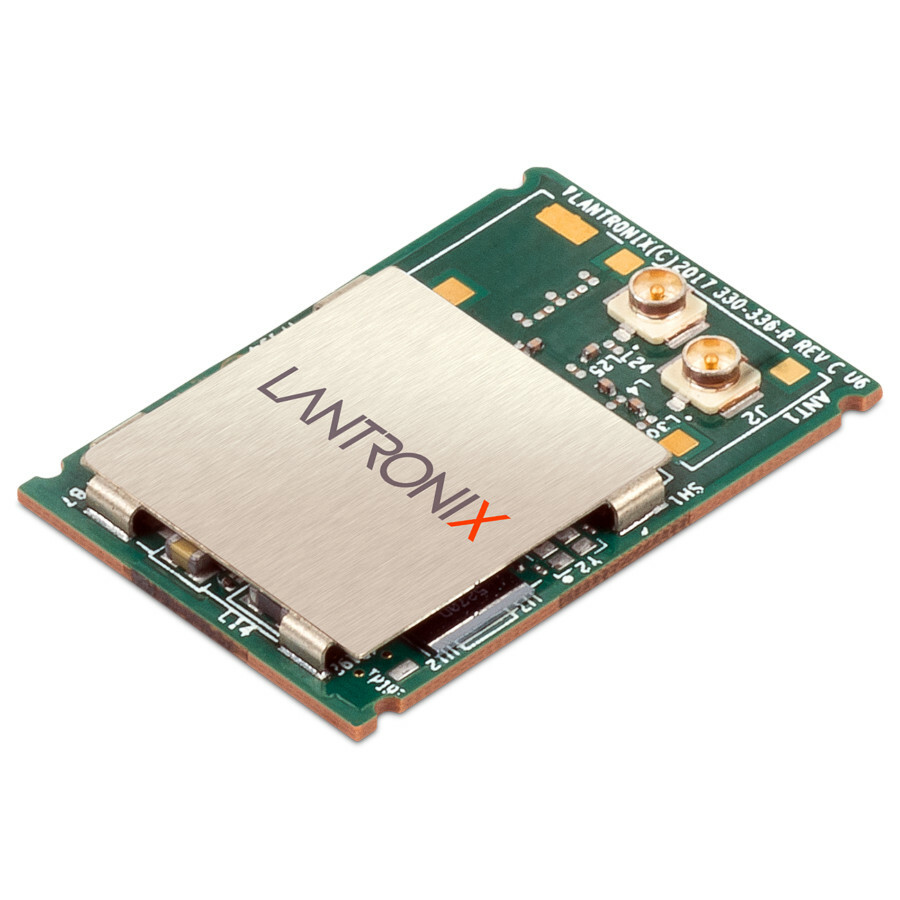

Lantronix XPC250100B-02 — xPico 250 LGA Wi-Fi Bluetooth Ethernet Module
$35.97
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping on US orders $50+Ordered on its own: $16.89 ground shipping. Add $50 or more to your cart and it ships free.Ships as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Dual-band Wi-Fi: IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps
- Bluetooth 4.2: BR/EDR/Bluetooth LE with Bluetooth LE Central and Peripheral Roles
- Ethernet: IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)
- Concurrent wireless operation: Concurrent Soft AP + STA (Client), Client and Soft AP modes
- Host integration: UART Port TTL data rates from 9600 bps to 4 Mbps, USB (Host) and 12 Programmable I/O Pins (GPIOs)
- Device management: Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT and Internal Web Server (HTTP/HTTPS)
- LGA production format: 17mm x 25mm x 2mm (LGA), Tape and Reel, MSL 3
Lantronix XPC250100B-02 is an xPico 250 Embedded IoT Gateway module in an LGA, tape-and-reel configuration. It combines Ethernet, Wi-Fi and Bluetooth connectivity with production ready software and integration with Lantronix Percepxion™ cloud-based IoT edge solution. The xPico 250 supports dual-band 802.11 a/b/g/n Wi-Fi, Bluetooth 4.2 and IEEE 802.3 MAC Ethernet with 10Base-T and 100Base-TX (RMII). Wireless features include Concurrent Soft AP + STA (Client), Client and Soft AP modes, WLAN QuickConnect and Ethernet to Wi-Fi Client Bridge (Single Host Mode). For embedded integration, the module supports UART Port TTL data rates from 9600 bps to 4 Mbps, USB (Host), 12 Programmable I/O Pins (GPIOs), and RESET, DEFAULT and WAKE system pins. Security features include Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates, Secure Key Storage, Encrypted Configuration, SSL/TLS and HTTPS connections, role based access control and WPA/WPA2/WPA3 options. This SKU is the LGA version at 17mm x 25mm x 2mm and is supplied as Tape and Reel, MSL 3. The series lists operating temperature at -40°C to +85°C and a 5-Year Limited warranty.
Ideal For
- Adding Ethernet, Wi-Fi and Bluetooth connectivity to smart connected products
- Operating the xPico 250 as a network co-processor for an embedded microcontroller
- Using Concurrent Soft AP + client mode for direct wireless service access without disrupting machine field operations
- Managing deployed devices remotely through Percepxion™
Specifications
| Series | XPico 250 Embedded IoT Gateway |
| Data Rates | 9600 bps to 4 Mbps (software selectable) |
| System Pins | RESET, DEFAULT, WAKE |
| Wi-Fi Bands | Dual Band 2.4 GHz and 5 GHz |
| Flow Control | RTS/CTS; XON/XOFF |
| Storage Temp | -40°C to +100°C |
| Wpa Security | AES/CCMP and TKIP encryption, WPA/WPA2 Personal; WPA2 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST) |
| AES Algorithm | 256-bit, 192-bit, 128-bit |
| Channel Width | 20 and 40 MHz channel width with optional SGI |
| Input Voltage | 3.3VDC |
| Wpa3 Security | WPA3-Enterprise Transition Mode and WPA3-Personal (requires firmware v5.0.0.0 or later) |
| Operating Temp | -40°C to +85°C |
| Wi-Fi Channels | Channels 1-13, UNII-1, 2a, 2e and 3 |
| Wireless Modes | Concurrent Soft AP + STA (Client), Client, Soft AP |
| Bluetooth Roles | Bluetooth LE Central and Peripheral Roles |
| Concurrent Mode | Up to 4 in Concurrent Mode |
| Control Signals | DTR/DCD |
| Host Interfaces | USB (Host), 12 Programmable I/O Pins (GPIOs) |
| Pki Certificates | SSLv3/TLS 1.2 with PKI and X.509 Certificates (up to 4096-bit Keys) |
| Protocol Support | DHCP Client, Server (Soft AP), HTTP Server/Client; IPv4, TCP/IP, UDP/IP, ARP, ICMP, Auto-IP, DNS; SNMP v1/v2; IPv6 |
| Security Features | Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates; Secure Key Storage, Encrypted Configuration; Secure Connections with SSL/TLS, HTTPS; Software Controlled Network Service Ports Enable/Disable; Role Based Access Control |
| Bluetooth Profiles | Support for Generic Access Profile (GAP), Generic Attribute Profile (GATT), Device ID Profile; Serial Port Profile (SPP) |
| Wi-Fi Fast Roaming | 802.11r fast roaming |
| Wi-Fi Specifications | IEEE 802.11 a/b/g up to 54 Mbps; 802.11 n (1×1) up to 150 Mbps |
| Management Interfaces | Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT; Lantronix Discovery Protocol (77FE); Serial Port, Internal Web Server (HTTP/HTTPS); XML Configuration and XML Status (CLI, API); Secure Firmware Upgrade via HTTPS, Percepxion™ |
| Bluetooth Specification | Compliant to Bluetooth Core Specification version 4.2 (BR/EDR/Bluetooth LE) |
| Ethernet Specifications | IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII) |
| Wi-Fi Standards Support | Supports IEEE 802.11 d/h/i |
| Soft Ap Client Connections | Up to 5 simultaneous client connections to Soft AP interface |
| Max Current Consumption Boot Peak | 600 mA (xPico 250) |
Documentation
Additional pdf1
Manufacturer Brochure
Product Brief
xPico 250 Product Brief – A4
Cert, IC, xPico 200
Cert, Bureau Veritas Certificate of Conformity, xPico 200
CERTIFICATION, XPICO 250, MEXICO, IFETEL-NOM208 Mexico-IFETEL
CERTIFICATION, XPICO 250, MEXICO, IFETEL-NOM Mexico-IFETEL
Environmental Certs RoHS and REACH_xPico®200
Frequently Asked Questions
What package format is XPC250100B-02?▾
XPC250100B-02 is the LGA xPico 250 SKU. The Lantronix part row lists LGA, T&R 250, and the specifications list Tape and Reel, MSL 3 for LGA.
Which wireless technologies does the xPico 250 support?▾
It supports IEEE 802.11 a/b/g up to 54 Mbps, 802.11 n (1×1) up to 150 Mbps, dual-band 2.4 GHz and 5 GHz Wi-Fi, Ethernet and Bluetooth 4.2.
Can this module be managed through Percepxion?▾
Yes. The management interfaces include Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT, Lantronix Discovery Protocol (77FE), Serial Port, Internal Web Server (HTTP/HTTPS), XML Configuration and XML Status.
What power input does the module require?▾
The input voltage is 3.3VDC. Max current consumption at boot peak is 600 mA (xPico 250).
