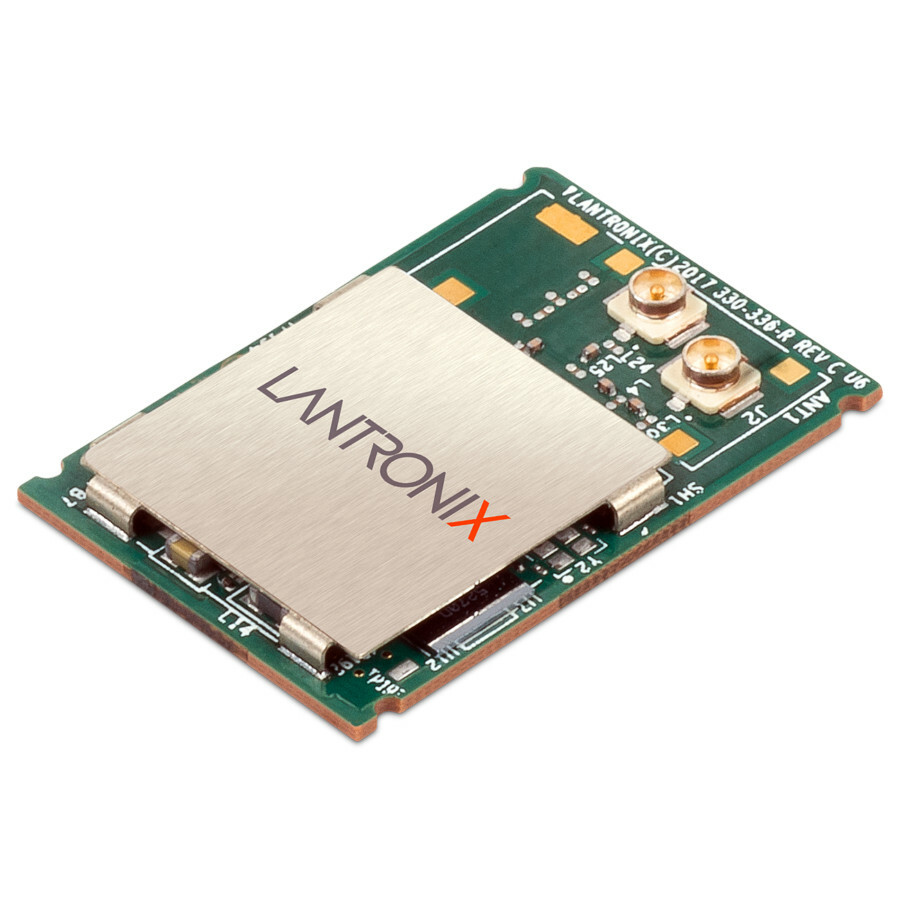

Lantronix xPico 250 XPC250100S-02 Wi-Fi, Ethernet and Bluetooth 4.2 LGA module

Lantronix XPC250100S-02 — xPico 250 LGA Wi-Fi Ethernet Bluetooth 4.2 Module

Name: Lantronix XPC250100S-02 — xPico 250 LGA Wi-Fi Ethernet Bluetooth 4.2
Brand: Lantronix
SKU: XPC250100S-02
Price: 37.77 USD
Availability: BackOrder

Lantronix|

MPN: XPC250100S-02

UPC: 0783384238640

Available on Backorder

$37.77$39.57

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

Dual-band Wi-Fi 802.11 a/b/g/n with 2.4 GHz and 5 GHz operation
Bluetooth 4.2 BR/EDR/Bluetooth LE with Bluetooth LE Central and Peripheral Roles
Ethernet IEEE 802.3 MAC with 10Base-T and 100Base-TX (RMII)
Concurrent Soft AP + STA (Client) mode with up to 4 in Concurrent Mode
Lantronix Percepxion™ cloud-based IoT edge solution with REST and MQTT management interfaces
Infinishield™ Security Software with Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates and Secure Key Storage
17mm x 25mm x 2mm LGA package supplied as Tape and Reel, MSL 3

Lantronix xPico 250 delivers Ethernet, Wi-Fi and Bluetooth connectivity for embedded IoT products. XPC250100S-02 is the LGA Tape and Reel configuration with 802.11 a/b/g/n, Ethernet, Bluetooth 4.2 and Dual U.FL. The xPico 250 line includes advanced enterprise security, intelligent networking, production ready software and pre-integration with the Lantronix Percepxion™ platform. It enables operation as a network co-processor or wireless MCU. Wireless features include Concurrent Soft AP + STA (Client), WLAN QuickConnect, Ethernet to Wi-Fi Client Bridge in Single Host Mode and 802.11r fast roaming. Management interfaces include Percepxion™, REST, MQTT, Lantronix Discovery Protocol, Serial Port, Internal Web Server and XML configuration/status. Infinishield™ Security Software adds Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates, Secure Key Storage, encrypted configuration, SSL/TLS and HTTPS connections, role based access control and software controlled network service ports enable/disable.

Ideal For

Adding Wi-Fi, Ethernet and Bluetooth connectivity to embedded IoT products
Operating as a network co-processor for an embedded microcontroller
Operating as a wireless MCU with the provided SDK
Managing deployed xPico 250 devices through Lantronix Percepxion™

Specifications

IPv6	IPv6
SNMP	SNMP v1/v2
Series	XPico 250 Embedded IoT Gateway
Ethernet	IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)
Packaging	Tape and Reel, MSL 3
Form Factor	LGA
Secure Boot	Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates
Wi-Fi Bands	Dual Band 2.4 GHz and 5 GHz, Channels 1-13, UNII-1, 2a, 2e and 3
IP Protocols	IPv4, TCP/IP, UDP/IP, ARP, ICMP, Auto-IP, DNS
Channel Width	20 and 40 MHz channel width with optional SGI
Input Voltage	3.3VDC
Wireless Mode	Concurrent Soft AP + STA (Client), Client, Soft AP
Wpa3 Security	WPA3-Enterprise Transition Mode and WPA3-Personal (requires firmware v5.0.0.0 or later)
Wi-Fi Security	WPA2 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST)
Concurrent Mode	Up to 4 in Concurrent Mode
Protocol Support	DHCP Client, Server (Soft AP), HTTP Server/Client
80211 N Data Rate	Up to 150 Mbps
Security Software	Infinishield™ Security Software
Wireless Standard	IEEE 802.11 a/b/g/n
Antenna Connectors	Dual U.FL
Bluetooth Le Roles	Bluetooth LE Central and Peripheral Roles
Bluetooth Profiles	Support for Generic Access Profile (GAP), Generic Attribute Profile (GATT), Device ID Profile
Bluetooth Standard	Compliant to Bluetooth Core Specification version 4.2 (BR/EDR/Bluetooth LE)
Discovery Protocol	Lantronix Discovery Protocol (77FE)
Internal Web Server	Internal Web Server (HTTP/HTTPS)
Serial Port Profile	Serial Port Profile (SPP)
Management Interfaces	Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT
Configuration And Status	XML Configuration and XML Status (CLI, API)
IEEE 80211 A B G Data Rate	Up to 54 Mbps
Soft Ap Client Connections	Up to 5 simultaneous client connections to Soft AP interface

Documentation

Additional pdf1

Manufacturer Brochure

Product Brief

xPico 250 Product Brief – A4

Cert, IC, xPico 200

Cert, Bureau Veritas Certificate of Conformity, xPico 200

CERTIFICATION, XPICO 250, MEXICO, IFETEL-NOM208 Mexico-IFETEL

CERTIFICATION, XPICO 250, MEXICO, IFETEL-NOM Mexico-IFETEL

Environmental Certs RoHS and REACH_xPico®200

Frequently Asked Questions

Which Wi-Fi standards does the xPico 250 support?▾

It supports IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps, with Dual Band 2.4 GHz and 5 GHz operation.

What configuration is XPC250100S-02?▾

XPC250100S-02 is the xPico 250 Embedded IoT Gateway with 802.11 a/b/g/n, Ethernet, Bluetooth 4.2, Dual U.FL, industrial temperature, and LGA Tape and Reel packaging.

Does this SKU work with Lantronix Percepxion?▾

Yes. The xPico 250 series is integrated with Lantronix Percepxion™ cloud-based IoT edge solution and supports remote updates and device management via Percepxion™.

What security features are supported?▾

Security features include Infinishield™ Security Software, Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates, Secure Key Storage, encrypted configuration, SSL/TLS and HTTPS, role based access control, WPA/WPA2 Personal, WPA2 Enterprise, and WPA3 modes with firmware v5.0.0.0 or later.
