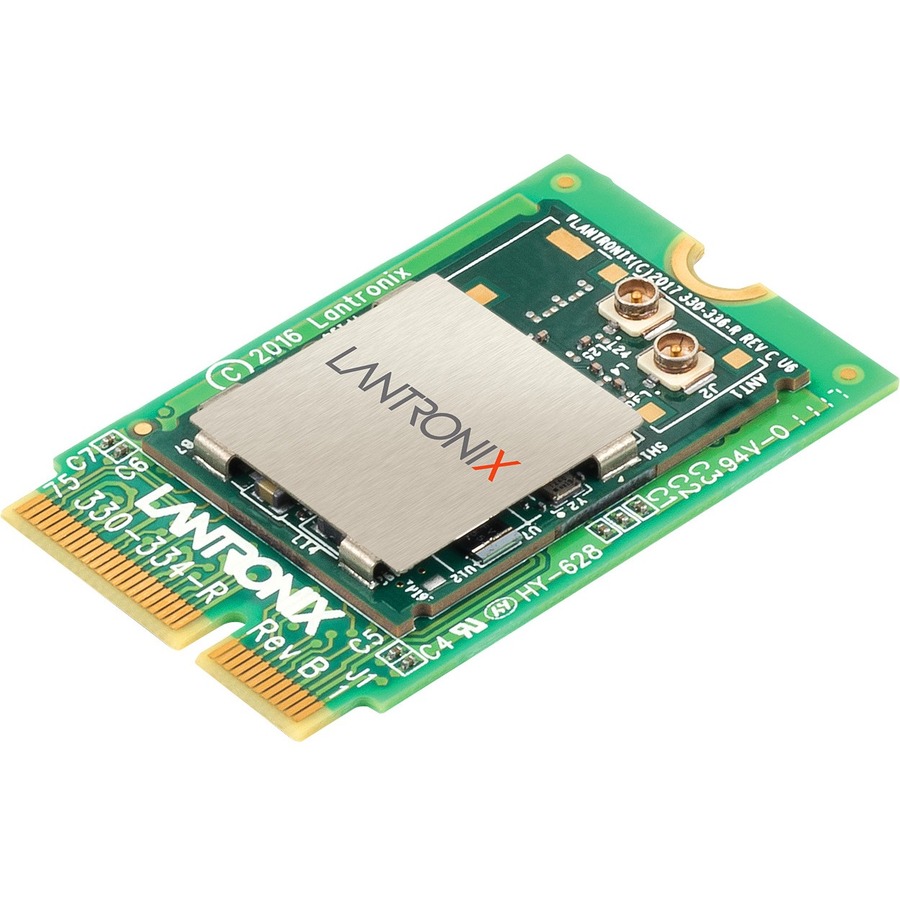

Lantronix xPico 250 XPC250300S-02 edge connector embedded IoT gateway module with dual u.fl

Lantronix XPC250300S-02 — xPico 250 Wi-Fi Bluetooth Edge Connector Module Single

Name: Lantronix XPC250300S-02 — xPico 250 Wi-Fi Bluetooth Edge Connector
Brand: Lantronix
SKU: XPC250300S-02
Price: 39.87 USD
Availability: BackOrder

Lantronix|

MPN: XPC250300S-02

UPC: 0783384238664

Available on Backorder

$39.87$41.77

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

Dual-band Wi-Fi: IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps
Bluetooth 4.2: BR/EDR/Bluetooth LE with Bluetooth LE Central and Peripheral Roles
Ethernet interface: IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)
Concurrent wireless modes: Concurrent Soft AP + STA (Client), Client and Soft AP
Device management: Lantronix Percepxion™ cloud-based IoT edge solution, REST and MQTT
Security: Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates, Secure Key Storage and Encrypted Configuration
Edge connector configuration: Dual u.fl, Ind. Temp, Edge Conn

Lantronix xPico 250 is an embedded IoT gateway for Ethernet, Wi-Fi and Bluetooth connectivity in OEM smart connected products. XPC250300S-02 is the edge connector SKU with Dual u.fl, Bluetooth 4.2 and 802.11 a/b/g/n Wi-Fi. The xPico 250 line includes enterprise Wi-Fi security, intelligent networking, production ready software and pre-integration with Lantronix Percepxion™. It enables operation as a network co-processor or wireless MCU. Wireless features include Concurrent Soft AP + STA (Client), Client and Soft AP modes, WLAN QuickConnect, and Ethernet to Wi-Fi Client Bridge in Single Host Mode. Security features include Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates, Secure Key Storage, Encrypted Configuration, SSL/TLS and HTTPS connections, and role based access control.

Ideal For

Adding dual-band Wi-Fi, Ethernet and Bluetooth 4.2 connectivity to OEM smart connected products
Using the xPico 250 as a network co-processor for an embedded microcontroller
Using Concurrent Soft AP + STA (Client) mode for direct wireless service access during machine field operations
Managing remote updates and device management via Lantronix Percepxion™

Specifications

Safety	IEC 62368 EN 62368, EN 62311, UL 60950
Series	XPico 250 Embedded IoT Gateway
Connector	Edge Conn
Packaging	Tray
System Pins	RESET, DEFAULT, WAKE
Wi-Fi Bands	Dual Band 2.4 GHz and 5 GHz
Flow Control	RTS/CTS; XON/XOFF
Storage Temp	-40°C to +100°C
Channel Width	20 and 40 MHz channel width with optional SGI
Input Voltage	3.3VDC
Host Interface	USB (Host)
Operating Temp	-40°C to +85°C
Type Approvals	USA (FCC Part 15), Canada (IC RSS), EU (RED), Japan (MIC), China (SRRC), AU/NZS
Wireless Modes	Concurrent Soft AP + STA (Client), Client, Soft AP
Bluetooth Roles	Bluetooth LE Central and Peripheral Roles
Concurrent Mode	Up to 4 in Concurrent Mode
Control Signals	DTR/DCD
Storage Humidity	5% to 85% relative humidity, non-condensing
Serial Data Rates	9600 bps to 4 Mbps (software selectable)
Bluetooth Standard	Compliant to Bluetooth Core Specification version 4.2 (BR/EDR/Bluetooth LE)
Edge Card Dimensions	22mm x 35.5mm x 2.73 mm
Antenna Configuration	Dual u.fl
Non-operational Shock	65G
Programmable I O Pins	12 Programmable I/O Pins (GPIOs)
Vibration Operational	40G
IEEE 80211 N Data Rate	(1×1) up to 150 Mbps
Ethernet Specifications	IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)
Certifications Compliance	RoHS, REACH
IEEE 80211 A B G Data Rate	Up to 54 Mbps
Max Current Consumption Boot Peak	600 mA (xPico 250)

Documentation

Additional pdf1

Manufacturer Brochure

Product Brief

xPico 250 Product Brief – A4

Cert, IC, xPico 200

Cert, Bureau Veritas Certificate of Conformity, xPico 200

CERTIFICATION, XPICO 250, MEXICO, IFETEL-NOM208 Mexico-IFETEL

CERTIFICATION, XPICO 250, MEXICO, IFETEL-NOM Mexico-IFETEL

Environmental Certs RoHS and REACH_xPico®200

Frequently Asked Questions

Does XPC250300S-02 support Wi-Fi, Ethernet, and Bluetooth?▾

Yes. The xPico 250 supports IEEE 802.11 a/b/g/n Wi-Fi, Ethernet, and Bluetooth 4.2 with BR/EDR/Bluetooth LE.

Is this xPico 250 SKU an edge connector version?▾

This SKU is listed as an Edge Conn configuration. The Edge Card dimensions are 22mm x 35.5mm x 2.73 mm, and the packaging for the Edge Connector version is Tray.

What management interfaces are supported?▾

Management interfaces include Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT, Lantronix Discovery Protocol, Serial Port, Internal Web Server, XML Configuration and XML Status, and Secure Firmware Upgrade via HTTPS and Percepxion™.

What power input does the xPico 250 require?▾

The input voltage is 3.3VDC. Max Current Consumption (Boot Peak) is 600 mA (xPico 250).
