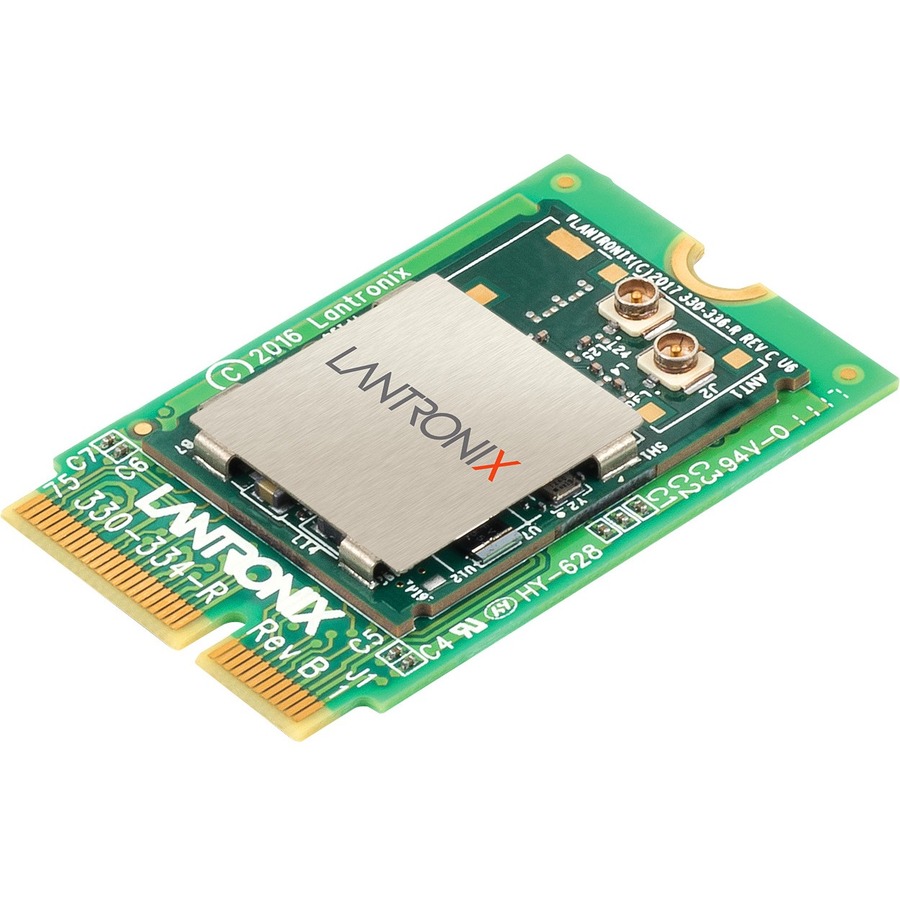

Lantronix XPC250300B-02 — xPico 250 Edge Connector Module Tray
$37.97
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping on US orders $50+Ordered on its own: $16.89 ground shipping. Add $50 or more to your cart and it ships free.Ships as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Dual-band Wi-Fi with IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps
- Bluetooth 4.2 support with BR/EDR/Bluetooth LE, Central and Peripheral Roles, GAP, GATT, Device ID Profile and SPP
- Ethernet support with IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)
- Concurrent Soft AP + STA operation with Client and Soft AP modes
- Lantronix Percepxion™ management with REST, MQTT, HTTP/HTTPS web server, XML Configuration and XML Status
- Infinishield™ security with Secure Boot, Secure Firmware-Over-the-Air updates, secure key storage and encrypted configuration
- Edge Connector format with dual U.FL and tray packaging
Lantronix xPico 250 gives embedded IoT products Ethernet, dual-band Wi-Fi and Bluetooth 4.2 connectivity in an Edge Connector configuration with dual U.FL. This SKU is supplied in tray packaging. The module supports IEEE 802.11 a/b/g/n wireless networking, Bluetooth LE Central and Peripheral Roles, and Ethernet to Wi-Fi Client Bridge operation in Single Host Mode. It also supports Concurrent Soft AP + STA operation for direct wireless service access without disrupting machine field operations. xPico 250 is integrated with Lantronix Percepxion™ cloud-based IoT edge solution and supports REST, MQTT, Serial Port, Internal Web Server, XML Configuration and XML Status. Security features include Secure Boot, Secure Firmware-Over-the-Air updates, secure key storage, encrypted configuration, SSL/TLS and HTTPS. The module operates from 3.3VDC and is rated for -40°C to +85°C operating temperature. Type approvals include USA (FCC Part 15), Canada (IC RSS), EU (RED), Japan (MIC), China (SRRC) and AU/NZS.
Ideal For
- Adding Ethernet, dual-band Wi-Fi and Bluetooth 4.2 connectivity to embedded IoT products
- Using Concurrent Soft AP + STA for direct wireless service access while machine field operations continue
- Managing deployed xPico 250 devices through Lantronix Percepxion™
- Operating as a network co-processor or wireless MCU
Specifications
| Series | XPico 250 Embedded IoT Gateway |
| Ethernet | IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII) |
| Packaging | Tray |
| Data Rates | 9600 bps to 4 Mbps (software selectable) |
| Dimensions | 22mm x 35.5mm x 2.73 mm (Edge Card) |
| System Pins | RESET, DEFAULT, WAKE |
| Fast Roaming | 802.11r fast roaming |
| Storage Temp | -40°C to +100°C |
| Channel Width | 20 and 40 MHz channel width with optional SGI |
| Configuration | Edge Conn |
| Input Voltage | 3.3VDC |
| Operating Temp | -40°C to +85°C |
| Wireless Bands | Dual Band 2.4 GHz and 5 GHz |
| Bluetooth Roles | Bluetooth LE Central and Peripheral Roles |
| Control Signals | DTR/DCD; Flow Control: RTS/CTS; XON/XOFF |
| Host Interfaces | USB (Host), 12 Programmable I/O Pins (GPIOs) |
| Wi-Fi Standards | IEEE 802.11 a/b/g; 802.11 n (1×1) |
| Storage Humidity | 5% to 85% relative humidity, non-condensing |
| Wireless Channels | Channels 1-13, UNII-1, 2a, 2e and 3 |
| Antenna Connectors | Dual u.fl |
| Bluetooth Profiles | Generic Access Profile (GAP), Generic Attribute Profile (GATT), Device ID Profile |
| Bluetooth Standard | Compliant to Bluetooth Core Specification version 4.2 (BR/EDR/Bluetooth LE) |
| Discovery Protocol | Lantronix Discovery Protocol (77FE) |
| Serial Port Profile | Serial Port Profile (SPP) |
| Management Interfaces | Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT |
| Non-operational Shock | 65G |
| Vibration Operational | 40G |
| IEEE 80211 N Data Rate | Up to 150 Mbps |
| IEEE 80211 A B G Data Rate | Up to 54 Mbps |
| Max Current Consumption Boot Peak | 600 mA (xPico 250) |
Documentation
Additional pdf1
Manufacturer Brochure
Product Brief
xPico 250 Product Brief – A4
Cert, IC, xPico 200
Cert, Bureau Veritas Certificate of Conformity, xPico 200
CERTIFICATION, XPICO 250, MEXICO, IFETEL-NOM208 Mexico-IFETEL
CERTIFICATION, XPICO 250, MEXICO, IFETEL-NOM Mexico-IFETEL
Environmental Certs RoHS and REACH_xPico®200
Frequently Asked Questions
What Wi-Fi standards does XPC250300B-02 support?▾
It supports IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps, with dual band 2.4 GHz and 5 GHz operation.
Is this the Edge Connector or LGA version?▾
This SKU is the Edge Connector version and is packaged in a tray.
What management interfaces are supported?▾
Management interfaces include Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT, Lantronix Discovery Protocol (77FE), Serial Port, Internal Web Server (HTTP/HTTPS), XML Configuration and XML Status, and secure firmware upgrade via HTTPS and Percepxion™.
What power input does it require?▾
It uses a 3.3VDC input voltage, with max current consumption at boot peak listed as 600 mA for xPico 250.
