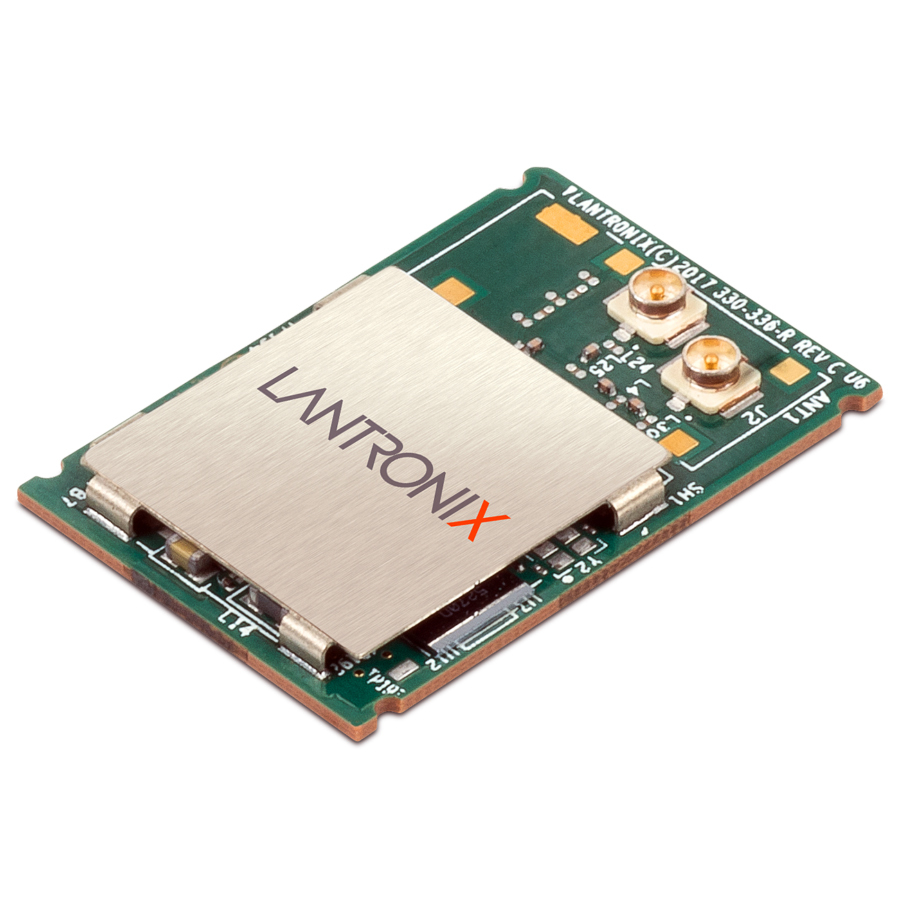

Lantronix XPC270100S — xPico 270 LGA Embedded IoT Gateway
$43.91
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping on US orders $50+Ordered on its own: $16.89 ground shipping. Add $50 or more to your cart and it ships free.Ships as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 802.11 a/b/g/n/AC dual-band Wi-Fi with 2.4 GHz and 5 GHz support
- Ethernet support with IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)
- Bluetooth 4.2 with BR/EDR/Bluetooth LE and Bluetooth LE Central and Peripheral Roles
- Concurrent Soft AP + STA (Client) mode with up to 4 in Concurrent Mode
- Lantronix Percepxion™ support with REST, MQTT and remote management with Percepxion™
- InfiniShield® security with Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates and Secure Key Storage
- LGA format in Tape and Reel, MSL 3 packaging
- Dual-band Wi-Fi (802.11 a/b/g/n/ac) and Ethernet
The Lantronix xPico 270 Embedded IoT Gateway gives OEM designs Ethernet, Wi-Fi and Bluetooth connectivity in an LGA configuration. This XPC270100S part is listed with 802.11 a/b/g/n/ac Wi-Fi, Ethernet, Bluetooth, Dual u.fl Antenna, Ind. Temp, LGA and T&R 25-pack packaging. Wireless specifications include dual-band 2.4 GHz and 5 GHz support, 802.11ac up to 433 Mbps, 20, 40 and 80 MHz channel width with optional SGI, and 802.11r fast roaming. Bluetooth support includes Bluetooth Core Specification version 4.2 with BR/EDR/Bluetooth LE, Bluetooth LE Central and Peripheral Roles, GAP, GATT, Device ID Profile and SPP. The xPico 270 series is integrated with Lantronix Percepxion™ cloud-based IoT edge solution. Management interfaces include REST, MQTT, Lantronix Discovery Protocol (77FE), Serial Port, Internal Web Server (HTTP/HTTPS), XML Configuration and XML Status, Secure Firmware Upgrade via HTTPS and remote management with Percepxion™. Security and authentication features include Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates, Secure Key Storage, Encrypted Configuration, SSL/TLS, HTTPS, Role Based Access Control, WPA/WPA2 Personal, WPA2 Enterprise and WPA3 modes with firmware requirements as specified.
Ideal For
- Adding dual-band Wi-Fi, Ethernet and Bluetooth connectivity to OEM smart connected products
- Using Concurrent Soft AP + STA (Client) mode for direct wireless service access while the device remains on a WLAN network
- Managing deployed xPico 270 devices with Lantronix Percepxion™ cloud-based IoT edge solution
- Connecting a single Ethernet host through Ethernet to Wi-Fi Client Bridge (Single Host Mode)
Specifications
| Gpio | 12 Programmable I/O Pins (GPIOs) |
| Safety | IEC 62368 EN 62368, EN 62311, UL 60950 |
| Ethernet | IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII) |
| Warranty | 5-Year Limited |
| Packaging | Tape and Reel, MSL 3 |
| Dimensions | 17mm x 25mm x 2mm (LGA) |
| Form Factor | LGA |
| System Pins | RESET, DEFAULT, WAKE |
| Wi-Fi Bands | Dual Band 2.4 GHz and 5 GHz |
| Fast Roaming | 802.11r fast roaming |
| Storage Temp | -40°C to + 85°C |
| Channel Width | 20, 40 and 80 MHz channel width with optional SGI |
| Input Voltage | 3.3VDC |
| Operating Temp | -40°C to +85°C |
| Type Approvals | USA (FCC Part 15), Canada (IC RSS), EU (RED), AU/NZS |
| Bluetooth Roles | Bluetooth LE Central and Peripheral Roles |
| Control Signals | DTR/DCD; Flow Control: RTS/CTS; XON/XOFF |
| 80211n Data Rate | 802.11 n (1×1) up to 150 Mbps |
| 80211ac Data Rate | 802.11AC up to 433 Mbps |
| Serial Data Rates | 9600 bps to 4 Mbps (software selectable) |
| Bluetooth Profiles | Support for Generic Access Profile (GAP), Generic Attribute Profile (GATT), Device ID Profile, Serial Port Profile (SPP) |
| Bluetooth Standard | Compliant to Bluetooth Core Specification version 4.2 (BR/EDR/Bluetooth LE) |
| USB Host Interface | USB (Host) |
| 80211a B G Data Rate | IEEE 802.11 a/b/g up to 54 Mbps |
| Environmental Compliance | RoHS, REACH |
| Max Current Consumption Boot Peak | 600 mA |
Frequently Asked Questions
Does XPC270100S support 802.11ac Wi-Fi?▾
Yes. The xPico 270 Wireless LAN specifications include IEEE 802.11 a/b/g up to 54 Mbps, 802.11 n (1×1) up to 150 Mbps and 802.11ac up to 433 Mbps, with dual-band 2.4 GHz and 5 GHz support.
What Bluetooth support does this xPico 270 module include?▾
It is compliant to Bluetooth Core Specification version 4.2 for BR/EDR/Bluetooth LE. It supports Bluetooth LE Central and Peripheral Roles plus GAP, GATT, Device ID Profile and Serial Port Profile (SPP).
How is XPC270100S packaged?▾
XPC270100S is the LGA configuration. The part row lists LGA, T&R 25-pack, and the packaging specification lists Tape and Reel, MSL 3.
What management interfaces are supported?▾
Management interfaces include Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT, Lantronix Discovery Protocol (77FE), Serial Port, Internal Web Server (HTTP/HTTPS), XML Configuration and XML Status, Secure Firmware Upgrade via HTTPS and remote management with Percepxion™.
