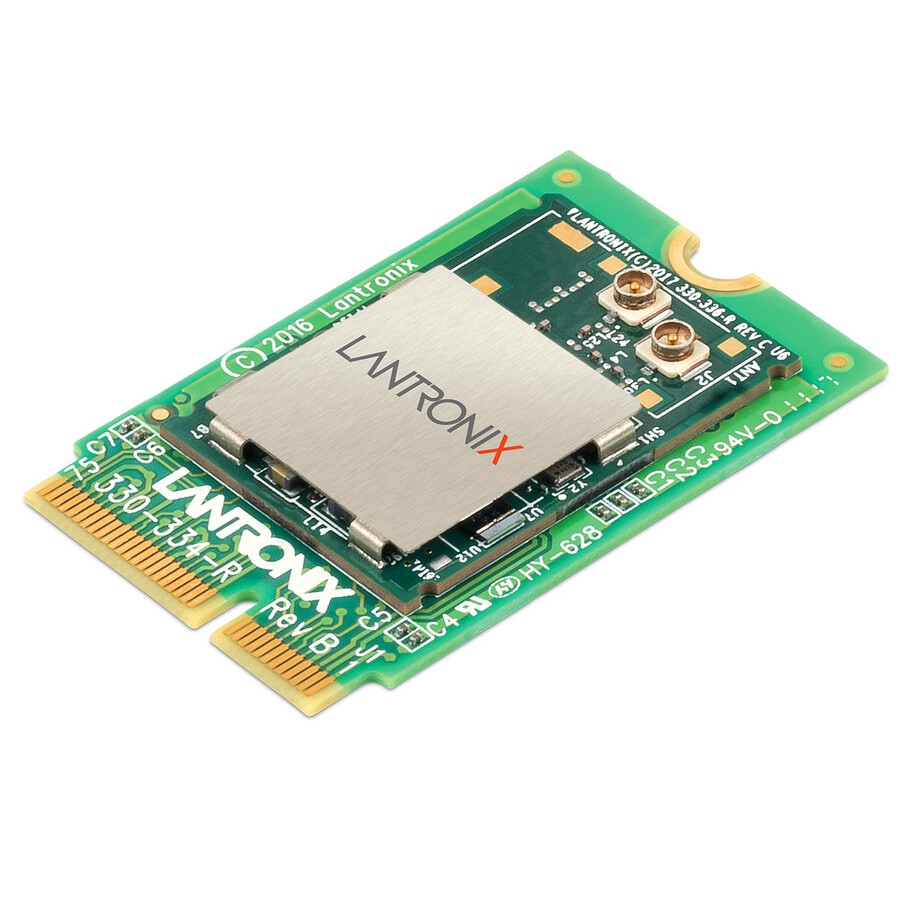

Lantronix XPC270300B — 802.11AC Wi-Fi, Bluetooth 4.2 xPico 270 Embedded IoT Gateway
$40.49$42.42
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 802.11AC Wi-Fi: supports IEEE 802.11 a/b/g up to 54 Mbps, 802.11 n (1×1) up to 150 Mbps and 802.11AC up to 433 Mbps
- Dual-band operation: supports 2.4 GHz and 5 GHz Wi-Fi
- Ethernet connectivity: IEEE 802.3 MAC with 10Base-T and 100Base-TX (RMII)
- Bluetooth 4.2: supports BR/EDR/Bluetooth LE with Bluetooth LE Central and Peripheral Roles
- Concurrent Soft AP + STA mode: supports Client, Soft AP and up to 4 in Concurrent Mode
- Security framework: InfiniShield with Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates, Secure Key Storage and Encrypted Configuration
- Management interfaces: Lantronix Percepxion™, REST, MQTT, Lantronix Discovery Protocol (77FE) and Internal Web Server (HTTP/HTTPS)
- Dual-band Wi-Fi (802.11 a/b/g/n/ac) and Ethernet
Lantronix xPico 270 Embedded IoT Gateway provides Ethernet, Wi-Fi and Bluetooth connectivity for OEM smart connected products. XPC270300B is the edge connector, tray-packaged SKU with dual u.fl antenna configuration and industrial temperature operation.
Ideal For
- Adding Wi-Fi, Ethernet and Bluetooth connectivity to smart connected products
- Operating as a network co-processor to offload IoT communications from an embedded microcontroller
- Operating as a wireless microcontroller with the provided SDK
- Remote device management and maintenance with Lantronix Percepxion™
Specifications
| Ethernet | IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII) |
| Data Rates | 9600 bps to 4 Mbps (software selectable) |
| Dimensions | 17mm x 25mm x 2mm (LGA); 22mm x 35.5mm x 2.73 mm (Edge Card) |
| System Pins | RESET, DEFAULT, WAKE |
| Fast Roaming | 802.11r fast roaming |
| USB And Gpio | USB (Host) 12 Programmable I/O Pins (GPIOs) |
| Channel Width | 20, 40 and 80 MHz channel width with optional SGI |
| Client Bridge | Ethernet to Wi-Fi Client Bridge (Single Host Mode), Auto-MAC ID |
| Input Voltage | 3.3VDC |
| Lga Packaging | Tape and Reel, MSL 3 |
| Wlan Features | Connect to multiple WLAN networks, WLAN QuickConnect |
| Host Interface | Serial: UART Port TTL |
| Wireless Modes | Concurrent Soft AP + STA (Client), Client, Soft AP |
| Bluetooth Roles | Bluetooth LE Central and Peripheral Roles |
| Concurrent Mode | Up to 4 in Concurrent Mode |
| Control Signals | DTR/DCD; Flow Control: RTS/CTS; XON/XOFF |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Storage Humidity | 10% to 85% relative humidity, non-condensing |
| Bluetooth Profiles | Support for Generic Access Profile (GAP), Generic Attribute Profile (GATT), Device ID Profile, Serial Port Profile (SPP) |
| Bluetooth Standard | Compliant to Bluetooth Core Specification version 4.2 (BR/EDR/Bluetooth LE) |
| Discovery Protocol | Lantronix Discovery Protocol (77FE) |
| Internal Web Server | HTTP/HTTPS |
| Storage Temperature | -40°C to + 85°C |
| Management Interfaces | Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT |
| Non-operational Shock | 65G |
| Operating Temperature | -40°C to +85°C |
| Vibration Operational | 40G |
| Edge Connector Packaging | Tray |
| Max Current Consumption Boot Peak | 600 mA |
| Wireless LAN Standards And Data Rates | IEEE 802.11 a/b/g up to 54 Mbps; 802.11 n (1×1) up to 150 Mbps; 802.11AC up to 433 Mbps |
Frequently Asked Questions
What configuration is XPC270300B?▾
XPC270300B is listed as an xPico 270 Embedded IoT Gateway with 802.11 a/b/g/n/ac Wi-Fi, Ethernet, Bluetooth, dual u.fl antenna configuration, industrial temperature, edge connector and tray packaging.
Does the xPico 270 support Bluetooth LE?▾
Yes. The Bluetooth specifications list Bluetooth Core Specification version 4.2 with BR/EDR/Bluetooth LE, plus Bluetooth LE Central and Peripheral Roles.
How can this module be managed?▾
Management interfaces include Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT, Lantronix Discovery Protocol (77FE), Serial Port, Internal Web Server (HTTP/HTTPS), XML Configuration and XML Status, and Secure Firmware Upgrade via HTTPS.
What power input does XPC270300B require?▾
The input voltage is 3.3VDC. Maximum current consumption at boot peak is listed as 600 mA.
