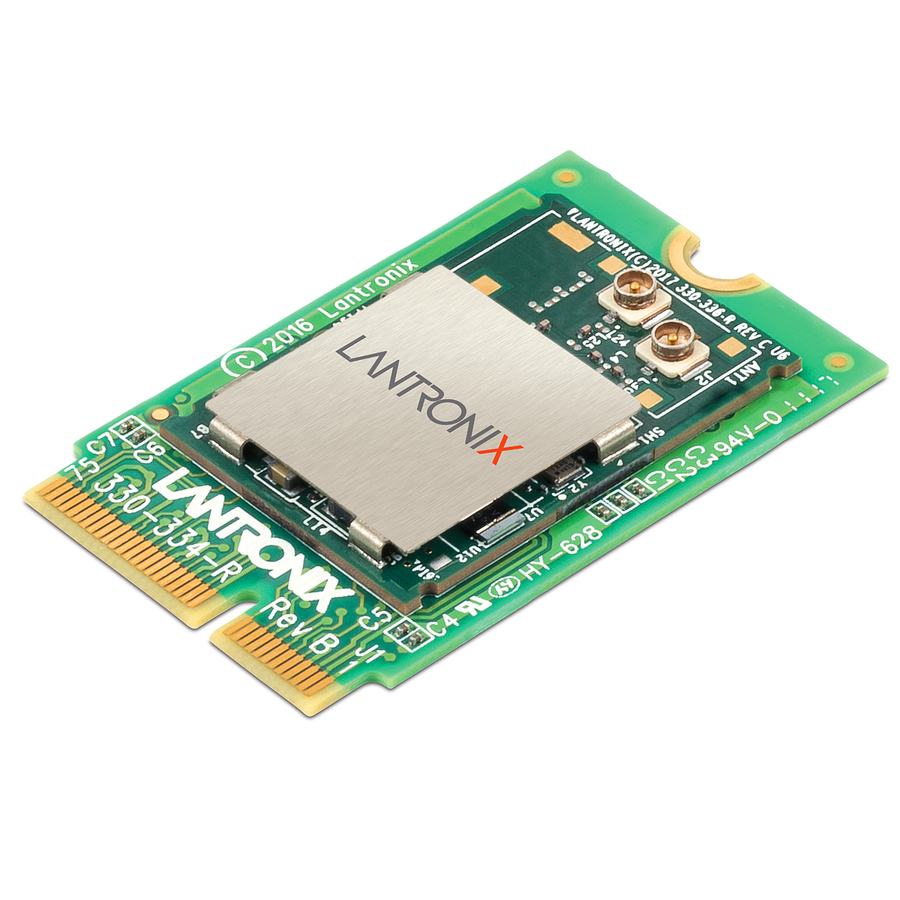

Lantronix XPC270300S — xPico 270 Embedded IoT Gateway
$46.66
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping on US orders $50+Ordered on its own: $16.89 ground shipping. Add $50 or more to your cart and it ships free.Ships as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 802.11AC dual-band Wi-Fi up to 433 Mbps with 2.4 GHz and 5 GHz support
- Ethernet connectivity with IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)
- Bluetooth 4.2 with BR/EDR/Bluetooth LE, Central and Peripheral roles
- Concurrent Soft AP + STA mode with up to 4 in Concurrent Mode
- Lantronix Percepxion™ cloud-based IoT edge solution with REST and MQTT management
- InfiniShield® security with Secure Boot, Secure Firmware-Over-the-Air updates and secure key storage
- Edge Connector, Single configuration with Dual u.fl Antenna
- Dual-band Wi-Fi (802.11 a/b/g/n/ac) and Ethernet
The Lantronix xPico 270 Embedded IoT Gateway delivers Ethernet, dual-band 802.11ac Wi-Fi and Bluetooth connectivity for OEM smart connected products. XPC270300S is the Edge Connector, Single configuration with Dual u.fl Antenna and industrial temperature. The module supports concurrent Soft AP + STA operation, automatic network connection management, WLAN QuickConnect and Ethernet to Wi-Fi Client Bridge in Single Host Mode. It can operate as a network co-processor or wireless MCU. Security features include Secure Boot, Secure Firmware-Over-the-Air updates, secure key storage, encrypted configuration, role-based access control, WPA/WPA2 Personal, WPA2 Enterprise and WPA3 modes with firmware v5.0.0.0 or later. Lantronix Percepxion™ provides cloud-based IoT edge management. Management interfaces also include REST, MQTT, Serial Port, Internal Web Server, XML Configuration and XML Status, and Secure Firmware Upgrade via HTTPS.
Ideal For
- Adding Ethernet, Wi-Fi and Bluetooth connectivity to OEM smart connected products
- Building industrial IoT products with dual-band 802.11AC Wi-Fi and Bluetooth LE 4.2
- Operating as a network co-processor or wireless MCU in embedded designs
- Remote device management and maintenance with Lantronix Percepxion™
Specifications
| Ethernet | IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII) |
| Security | Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates |
| IP Support | IPv4, TCP/IP, UDP/IP, ARP, ICMP, Auto-IP, DNS |
| Wi-Fi Modes | Concurrent Soft AP + STA (Client), Client, Soft AP |
| Fast Roaming | 802.11r fast roaming |
| IPv6 Support | IPv6 |
| SNMP Support | SNMP v1/v2 |
| Wpa3 Support | WPA3-Enterprise Transition Mode and WPA3-Personal (requires firmware v5.0.0.0 or later) |
| Channel Width | 20, 40 and 80 MHz channel width with optional SGI |
| Frequency Band | Dual Band 2.4 GHz and 5 GHz |
| Wi-Fi Security | WPA/WPA2 Personal |
| Bluetooth Roles | Bluetooth LE Central and Peripheral Roles |
| Concurrent Mode | Up to 4 in Concurrent Mode |
| Firmware Upgrade | Secure Firmware Upgrade via HTTPS |
| Protocol Support | DHCP Client, Server (Soft AP), HTTP Server/Client |
| Storage Humidity | 10% to 85% relative humidity, non-condensing |
| 80211 N Data Rate | Up to 150 Mbps |
| 80211ac Data Rate | Up to 433 Mbps |
| Bluetooth Profiles | Generic Access Profile (GAP), Generic Attribute Profile (GATT), Device ID Profile, Serial Port Profile (SPP) |
| Bluetooth Standard | Bluetooth Core Specification version 4.2 (BR/EDR/Bluetooth LE) |
| Wireless Standards | IEEE 802.11 a/b/g/n/AC |
| Soft Ap Connections | Up to 5 simultaneous client connections to Soft AP interface |
| Storage Temperature | -40°C to + 85°C |
| Wireless Encryption | AES/CCMP and TKIP encryption |
| 80211 A B G Data Rate | Up to 54 Mbps |
| Management Interfaces | Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT |
| Non-operational Shock | 65G |
| Operating Temperature | -40°C to +85°C |
| Vibration Operational | 40G |
| Enterprise Wi-Fi Security | WPA2 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST) |
Frequently Asked Questions
What Wi-Fi standards does XPC270300S support?▾
XPC270300S supports IEEE 802.11 a/b/g up to 54 Mbps, 802.11 n (1×1) up to 150 Mbps and 802.11ac up to 433 Mbps on dual-band 2.4 GHz and 5 GHz Wi-Fi.
Does the xPico 270 support Bluetooth LE?▾
Yes. The xPico 270 supports Bluetooth Core Specification version 4.2 with BR/EDR/Bluetooth LE, Bluetooth LE Central and Peripheral roles, GAP, GATT, Device ID Profile and Serial Port Profile.
How can the module be managed?▾
Management interfaces include Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT, Lantronix Discovery Protocol, Serial Port, Internal Web Server, XML Configuration and XML Status, and Secure Firmware Upgrade via HTTPS.
Which xPico 270 configuration is this SKU?▾
XPC270300S is the Edge Connector, Single configuration with Dual u.fl Antenna. The Edge Connector package is supplied in a tray.
