Lantronix E-100BTX Series Fast Ethernet Fiber Media Converters
The E-100BTX Series (E-100BTX-FX-06) are stand-alone Layer 1 media converters that link a 100Base-TX copper port to 100Base-FX fiber, offered with ST, SC or LC fiber connectors or an open 100 Mbps SFP slot.
Overview
About the Lantronix E-100BTX Series
The E-100BTX-FX-06 (also written E100BTX-FX-06) converts a 100Base-TX RJ45 port to 100Base-FX fiber so Fast Ethernet devices can reach beyond the 100 m copper limit. It works at Layer 1, passing data at line speed with no store-and-forward delay, which suits latency-sensitive links. Use converters in pairs to put a fiber segment between two copper devices, or a single unit to connect copper equipment to a switch with a 100Base-FX port.
Fixed-optic models run 1300 nm multimode to 2 km with an 11.0 dB link budget, or 1310 nm single-mode to 20 km with 16.0 dB (SC) or 17.3 dB (LC). The E-100BTX-FX-06(SFP) version has an empty 100Base-X SFP slot and accepts 100 Mbps SFP modules, so wavelength and distance are set by the optic. Four DIP switches control auto-negotiation, pause, active link pass through and Far-End-Fault, and the copper port supports auto-MDI/MDIX.
The converter measures 3 x 4.7 x 1 in, runs on 9-14 VDC from an external 12 VDC adapter at 1.75 W, and operates from 0 to 50 C. It mounts on a wall, DIN rail or in the RMS19-SA4-02 shelf and E-MCR-05 12-slot rack.
Key capabilities
- Five connector options
- Choose multimode ST, SC or LC, single-mode SC or LC, or an open SFP slot, so the converter matches the fiber plant already installed.
- Up to 20 km single-mode
- 1310 nm single-mode models reach 20 km with a 16.0 dB (SC) or 17.3 dB (LC) link budget; 1300 nm multimode models reach 2 km.
- Layer 1 line-speed design
- As a physical-layer converter it passes 100 Mbps traffic at line speed with low latency, with settings made on four DIP switches rather than software.
- Link pass through and FEF
- Active link pass through and Far-End-Fault signal a broken fiber or copper link to attached equipment, and automatic link restoration recovers the path.
- SFP flexibility

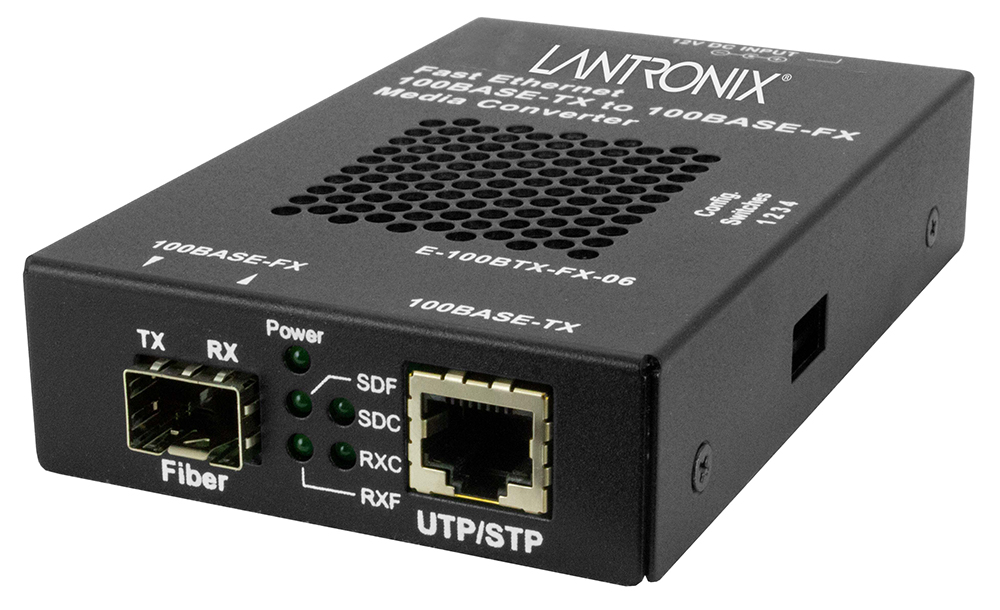

- The E-100BTX-FX-06(SFP) accepts any 100 Mbps SFP module, letting you change distance or wavelength later by swapping the optic.
How to choose the right E-100BTX Series part number

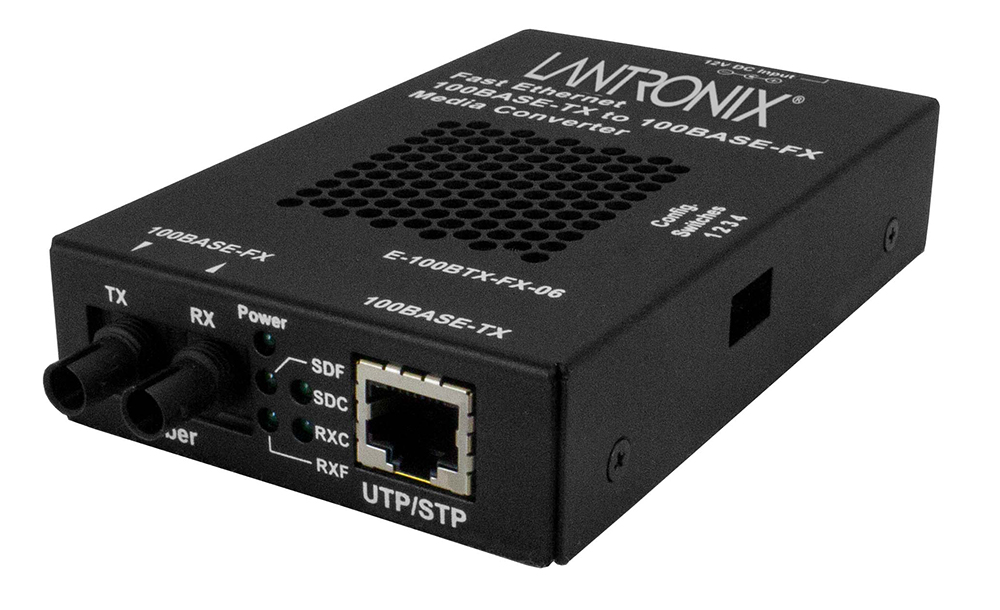

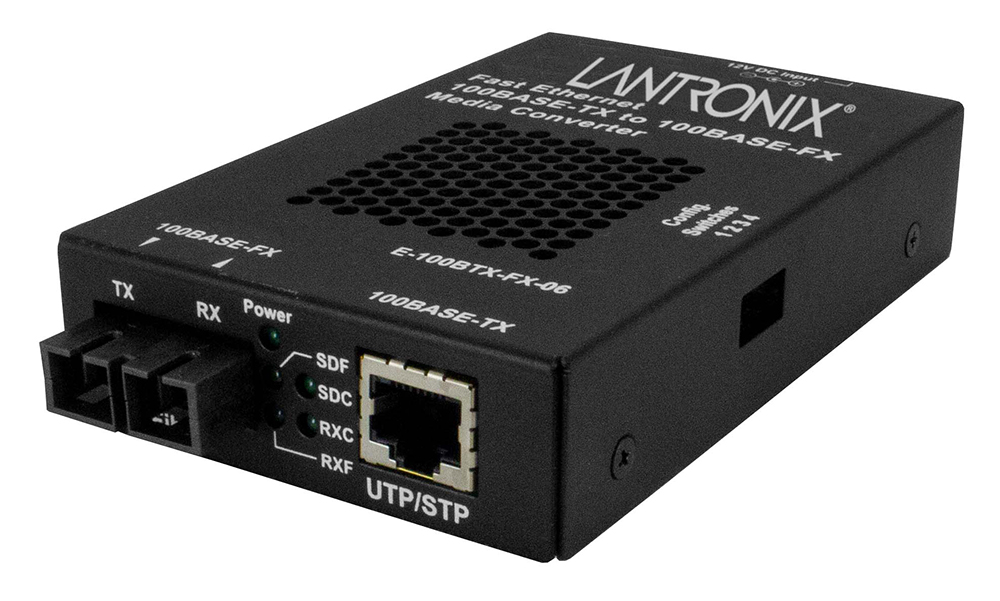

All E-100BTX-FX-06 models share the same 100Base-TX RJ45 port; the suffix selects the fiber side. No suffix is 1300 nm multimode with ST connectors to 2 km, (SC) and (LC) are the same multimode optic with SC or LC connectors. (SM) is 1310 nm single-mode SC to 20 km and (SMLC) is single-mode LC to 20 km. E-100BTX-FX-06(SFP) ships with an empty SFP slot for a 100 Mbps SFP module of your choice. Match the connector and fiber type to the far-end device, and buy pairs for copper-fiber-copper links.
Configure & order
Find your E-100BTX Series part number
Every orderable E-100BTX Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the E-100BTX Series, organized by what it does — power, mounting & enclosures, chassis & shelves— each with why you'd add it.
Power
1 item
SPS-2460-SA
SPS-2460-SA
Stand-alone wide input external power supply for all Lantronix stand-alone media converters and some chassis.
$248.00
Ships on backorder
Mounting & enclosures
2 items
WMBD-FS
WMBD-FS
3.1” [79 mm] DIN Rail Mount Bracket (flat, small). It fits Stand-Alone Converters that are 3″ [76 mm] wide.
$16.00
Ships on backorder
WMBL
WMBL
4″ [102 mm] wall-mount bracket kit for stand-alone converters size 4.8″ [122 mm] and 6.5″ [165 mm]. It is listed as a compatible accessory for the E-100BTX Series.
$16.00
2 in stock
Chassis & shelves
4 items
WMBD
WMBD
5″ [127 mm] DIN Rail Mount Bracket for all Stand-Alone Converters and 1- or 2-Slot ION Chassis.
$11.00
Ships on backorder
WMBV
WMBV
5″ [127 mm] vertical mount for all Stand-Alone Converters and 1- or 2-slot ION Chassis. It supports wall-mountable installations and is supplied as a bulk package quantity of 1.
$22.00
Ships on backorder
RMS19-SA4-02
RMS19-SA4-02
19-inch, 1U rack-mount shelf for up to 4 stand-alone media converters. It includes 4 converter mounting brackets and 3 slot blanks.
$177.00
3 in stock
E-MCR-05
E-MCR-05
19” rack-mountable 12-slot media converter rack. It supports up to twelve Lantronix stand-alone media converters in a single chassis.
Compatibility taken from the Lantronix part-number tables for the E-100BTX Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the E-100BTX Series is used
- Extending Fast Ethernet links beyond 100 m over fiber
- Connecting copper devices to 100Base-FX switch ports
- Running Ethernet between buildings on single-mode fiber
- Central fiber termination in a 12-slot E-MCR-05 rack
- Re-using existing ST or SC multimode cabling
E-100BTX Series datasheets & documentation
E-100BTX Series FAQ
How far can the E-100BTX-FX-06 media converter transmit over fiber?
Multimode models (ST, SC or LC) reach 2 km at 1300 nm with an 11.0 dB link budget. Single-mode models (SM and SMLC) reach 20 km at 1310 nm. With the SFP version, distance depends on the 100 Mbps SFP module installed.
Does the E-100BTX-FX-06 need to be used in pairs?
No. Lantronix designs it to work in pairs, placing fiber between two copper devices, or as a single unit connecting a 100Base-TX device to equipment that already has a 100Base-FX fiber port.
What SFP modules work in the E-100BTX-FX-06(SFP)?
The SFP version has an empty 100Base-X slot, and Lantronix states it supports all 100 Mbps SFP modules. Choose the 100 Mbps optic that matches your fiber type, wavelength and distance, and fit a compatible optic at the far end.
What power supply does the E-100BTX converter use?
It requires an external AC/DC adapter with 120-240 VAC input and 12 VDC unregulated output. The converter accepts 9-14 VDC and consumes 1.75 W. Operating range is 0 to 50 C at 5% to 95% non-condensing humidity.
What do the DIP switches on the E-100BTX media converter do?
SW1 turns auto-negotiation on or off, SW2 enables pause transmit, SW3 enables active link pass through, and SW4 enables Far-End-Fault. LEDs show power, fiber and copper link, and fiber and copper receive activity.
