Lantronix EDS5000 Series Rack-Mount Multiport Serial Device Servers
1U rack-mount device servers that connect 8, 16 or 32 serial devices to Ethernet over one Gigabit copper or SFP uplink, for security systems, medical devices, POS terminals and other serial equipment.
From $793.33
Overview
About the Lantronix EDS5000 Series
The EDS5000 Series (also written EDS 5000), made up of the EDS5008, EDS5016 and EDS5032, is Lantronix's next-generation multiport serial-to-Ethernet device server. It gathers many serial devices in one rack or equipment room onto the network for remote access and management. Lantronix cites a hospital deployment in which multiport device server technology connected up to 60 ICU patient monitors to a central network.
Each model has RJ-45 serial ports at 2400 baud to 921.6 Kbaud with full modem control signals. Four ports on every model are software-selectable RS-232, RS-422 or 2- and 4-wire RS-485, and the rest are RS-232. A combo uplink accepts 10/100/1000 copper or a 100/1000 SFP module, so the unit can sit on fiber directly. Security includes TLS 1.2 and 1.3, SSH, AES-128/256 data encryption, RSA up to 4096-bit, IP address filtering and SNMP v3. IPv4 and IPv6 are supported.
Power inputs are redundant: 100-240 VAC via an IEC cord, 24-48 VDC, or both, at 20 W. The IP30 1U chassis rack- or desktop-mounts and operates from -10°C to +60°C. Configuration is via web manager, CLI, SNMP, XML, the Windows Lantronix Provisioning Manager, or the Percepxion platform for telemetry, firmware updates and remote access.
Key capabilities
- 8, 16 or 32 ports
- One 1U chassis connects up to 32 serial devices, each on an RJ-45 port running up to 921.6 Kbaud.
- Gigabit combo uplink
- The network port takes 10/100/1000 copper or a 100/1000 SFP module, allowing a direct fiber link to the core.
- Redundant AC and DC
- Accepts 100-240 VAC through an IEC cord, 24-48 VDC, or both at once for redundancy, drawing 20 W.
- Modern encryption
- TLS 1.2 and 1.3, SSH, AES-128/256 traffic encryption, RSA up to 4096-bit and ECDHE, with IP address filtering.

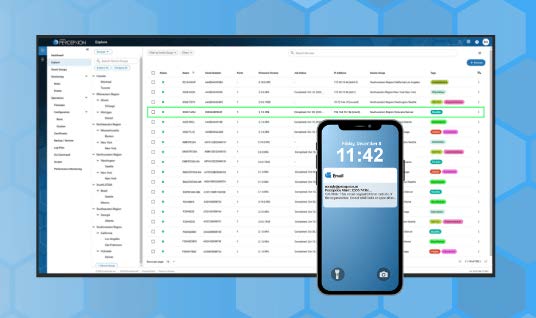

- Percepxion managed
- Device status, configuration and firmware updates, telemetry dashboards and remote access through Lantronix Percepxion, cloud or on-premise.
How to choose the right EDS5000 Series part number
The last two digits give the serial port count. EDS5008 has 8 ports (4 multi-protocol RS-232/422/485 plus 4 RS-232 only), EDS5016 has 16 (4 multi-protocol plus 12 RS-232) and EDS5032 has 32 (4 multi-protocol plus 28 RS-232). All three include a Gigabit copper/SFP combo uplink, an RJ-45 console port and 100-240 VAC input. Choose by the number of serial devices and how many need RS-422 or RS-485. For DC-powered sites, the 25131 is a 48 VDC, 76.8 W DIN-rail supply.
Configure & order
Find your EDS5000 Series part number
Every orderable EDS5000 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

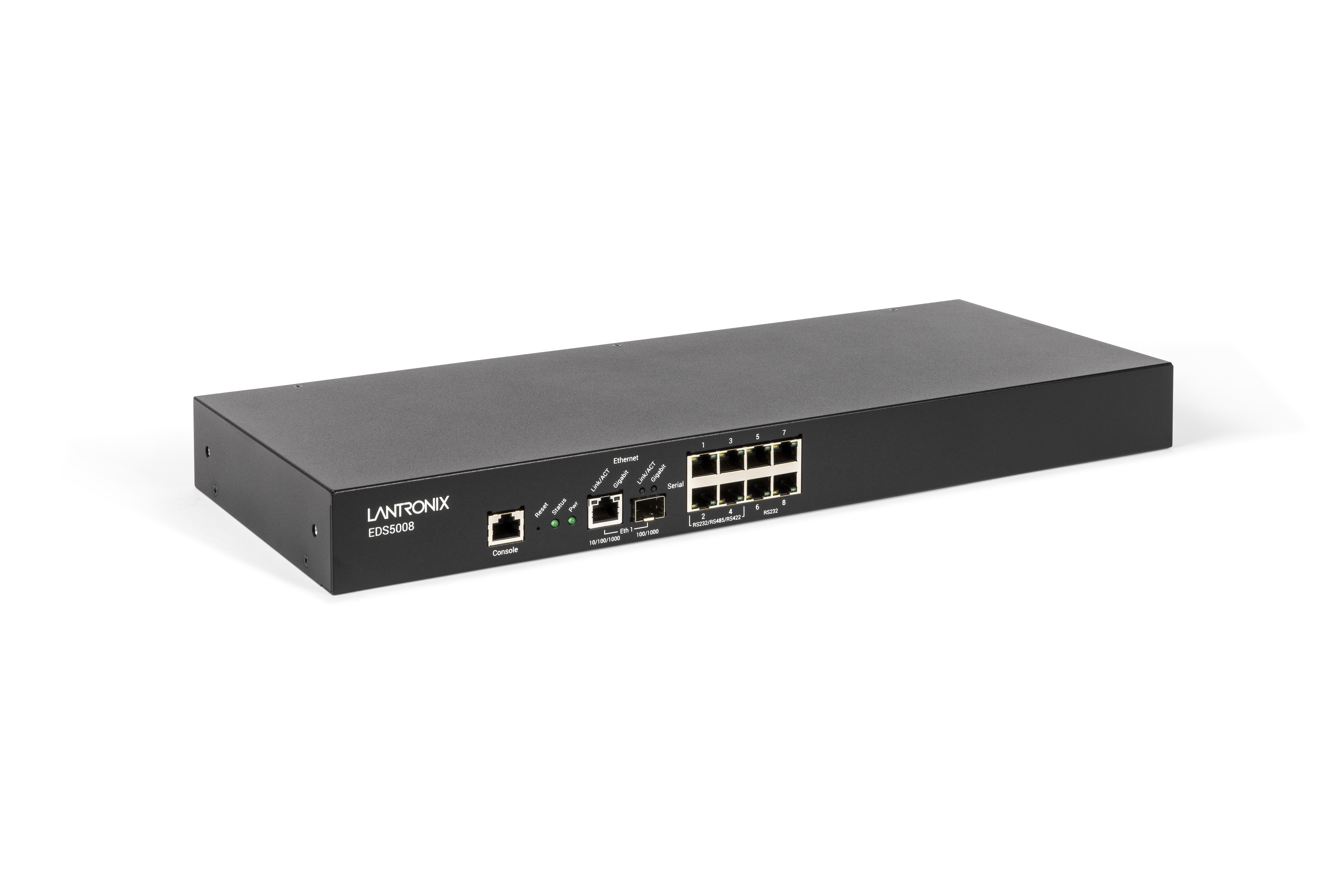

EDS5008
$793.33
Ships on backorder

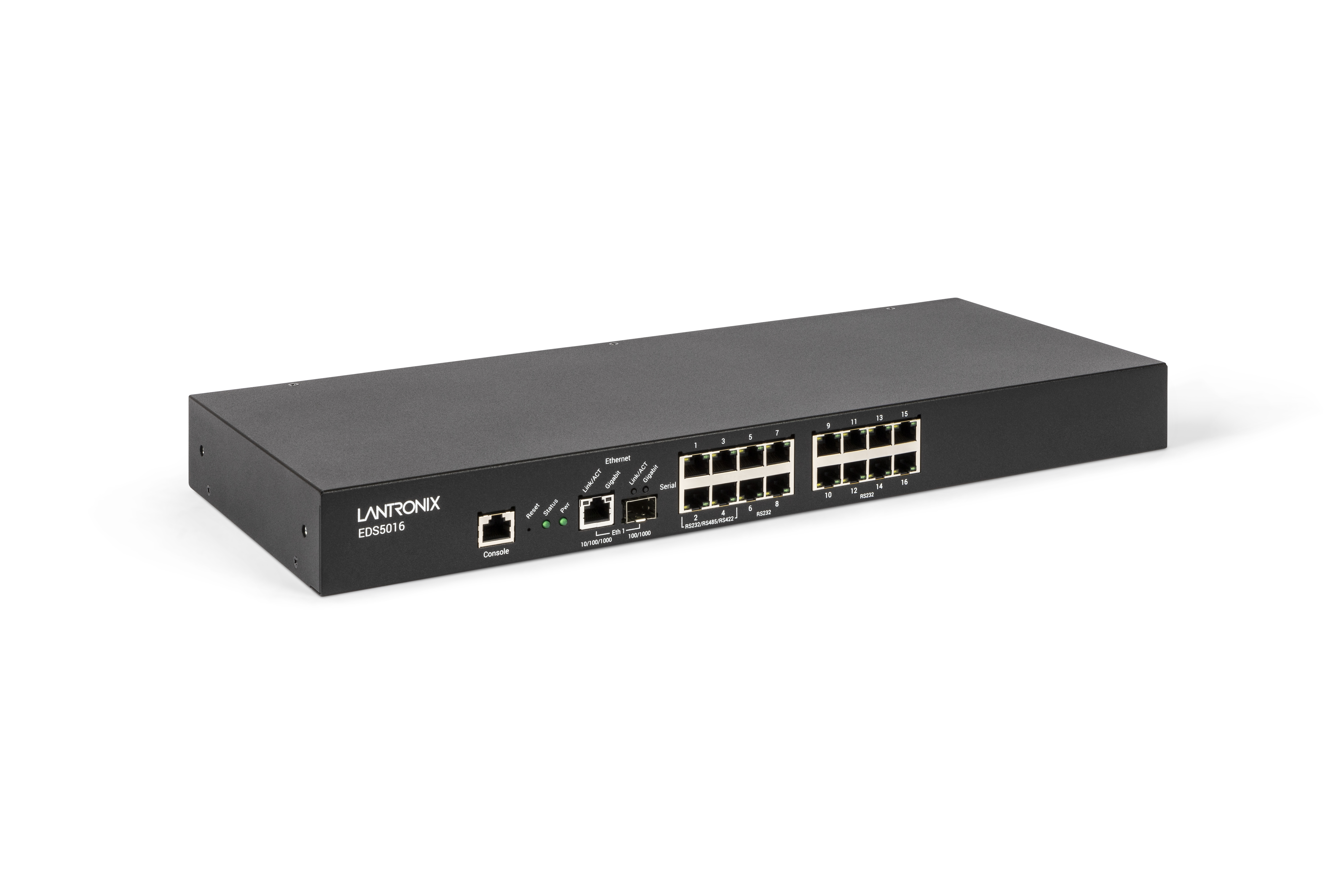

EDS5016
$1,086.67
Ships on backorder
EDS5032
$1,466.67
9 in stock
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the EDS5000 Series, organized by what it does — power— each with why you'd add it.
Power
1 item
25131
25131
Industrial DIN rail mounted power supply with 48VDC output and a 76.8 Watts power rating. It supports 90% efficiency and operates from -30°C to +70°C.
$149.60
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the EDS5000 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the EDS5000 Series is used
- Centralizing ICU patient monitor serial data
- Networking banks of POS terminals and payment devices
- Remote access to security panels and access controllers
- Fiber-connected serial aggregation in equipment rooms
EDS5000 Series datasheets & documentation
EDS5000 Series FAQ
How many RS-485 ports does the EDS5000 have?
Every model has four ports that are software-selectable for RS-232, RS-422 or 2- and 4-wire RS-485. The remaining ports on the EDS5016 and EDS5032 are RS-232 only.
Can the EDS5000 connect to the network over fiber?
Yes. The Ethernet port is a combo port that accepts either a 10/100/1000 copper RJ-45 connection or a 100/1000 SFP module. This lets the device server connect directly to a fiber network without a separate media converter.
What power options does the EDS5000 support?
Redundant inputs for 100-240 VAC via an IEC cord and 24-48 VDC. You can connect AC, DC or both. Power consumption is 20 W. Lantronix lists a 48 VDC DIN-rail supply, the 25131, as a compatible accessory.
What is the EDS5000 operating temperature?
-10°C to +60°C operating and -40°C to 80°C storage, with up to 95% non-condensing humidity and an IP30 rating. The 1U chassis can be rack mounted or used on a desktop.
How is the EDS5000 configured and managed?
Through the internal web server, Telnet or SSH CLI, SNMP v1/v2/v3, XML, the Windows Lantronix Provisioning Manager, or the Percepxion device management platform. Firmware can be upgraded through any of these.
