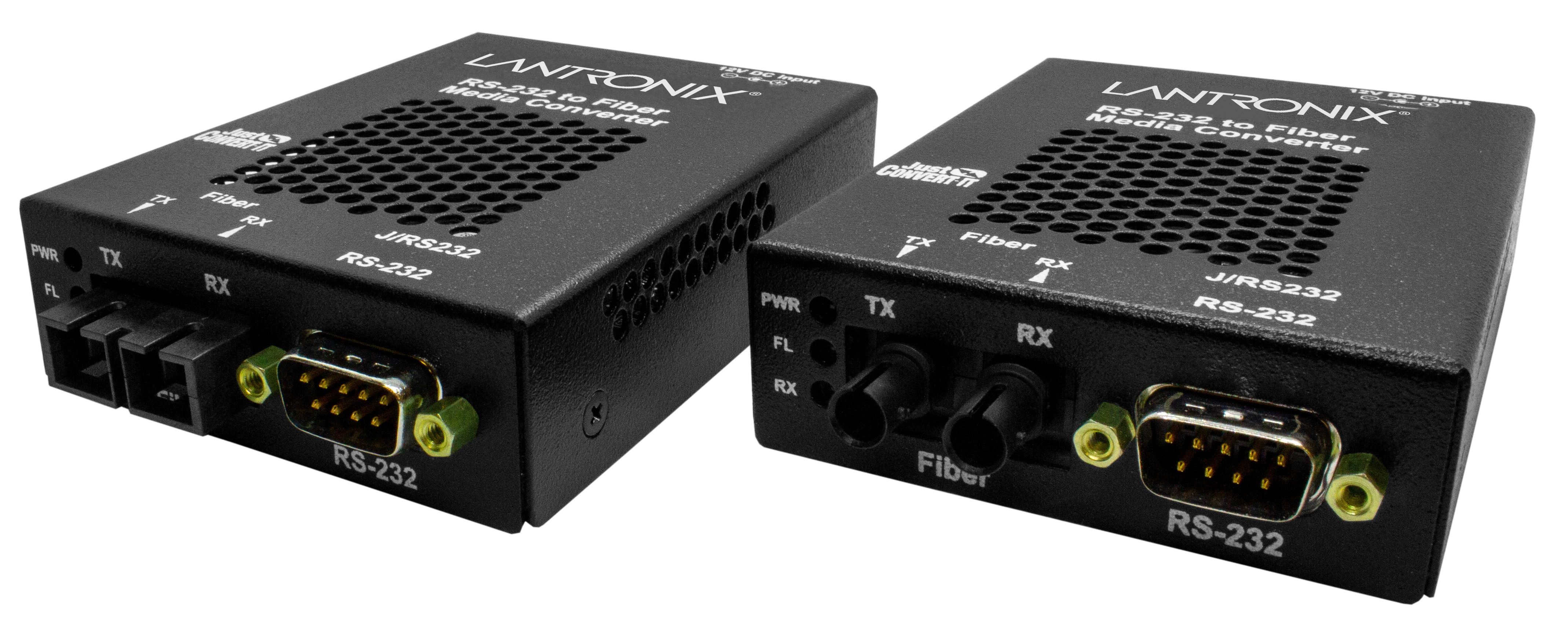

Lantronix J/RS232 Series RS-232 to Fiber Media Converters
The J/RS232 Series are stand-alone serial media converters that carry RS-232 over multimode fiber, extending a serial link from the 15 m copper limit to as far as 2 km between remote devices and a host.
Overview
About the Lantronix J/RS232 Series
Conventional RS-232 copper cables top out at about 15 meters. The J/RS232 Series (also written J-RS232) converts a DB-9 serial port to 1300 nm multimode fiber so security scanners, POS devices, remote terminals and building access or alarm systems can reach a host computer across a campus or business site. Links run point to point, with a converter at each end of the fiber.
Each converter supports full- or half-duplex transmission at up to 120 Kbps, complies with EIA/TIA-574 and EIA/TIA RS-232E, and uses an SC fiber connector with an 11.0 dB link budget for distances up to 2 km. The two models differ only in the copper connector: a female DB-9 or a male DB-9. LEDs show power, receive data and a steady fiber link even when no data is moving, which speeds up fiber troubleshooting.
Units are powered by an external 12 VDC, 0.5 A adapter with 120-240 VAC input, draw 3.0 W and operate from 0 to 50 C with storage from -40 to +85 C. The 76 mm wide housing mounts on DIN-rail or wall brackets, or in the RMS19-SA4-02 4-slot shelf and E-MCR-05 12-slot rack.
Key capabilities
- 2 km multimode reach
- A 1300 nm multimode SC fiber port with an 11.0 dB link budget extends RS-232 to 2 km, far beyond the 15 m copper serial limit.
- Male or female DB-9
- Choose the female DB-9 or male DB-9 model so the converter plugs straight into the serial port on the device or host.
- Full or half duplex
- The converter handles full- or half-duplex serial transmission at data rates up to 120 Kbps, covering typical terminal and control traffic.
- Fiber link indication
- The FL LED stays lit whenever fiber link is present, with or without data flowing, so installers can verify the cable before devices talk.
- Flexible mounting options
- The 76 mm wide housing fits WMBD-FS and WMBD DIN-rail brackets, the RMS19-SA4-02 4-slot shelf and the E-MCR-05 12-slot rack.
How to choose the right J/RS232 Series part number

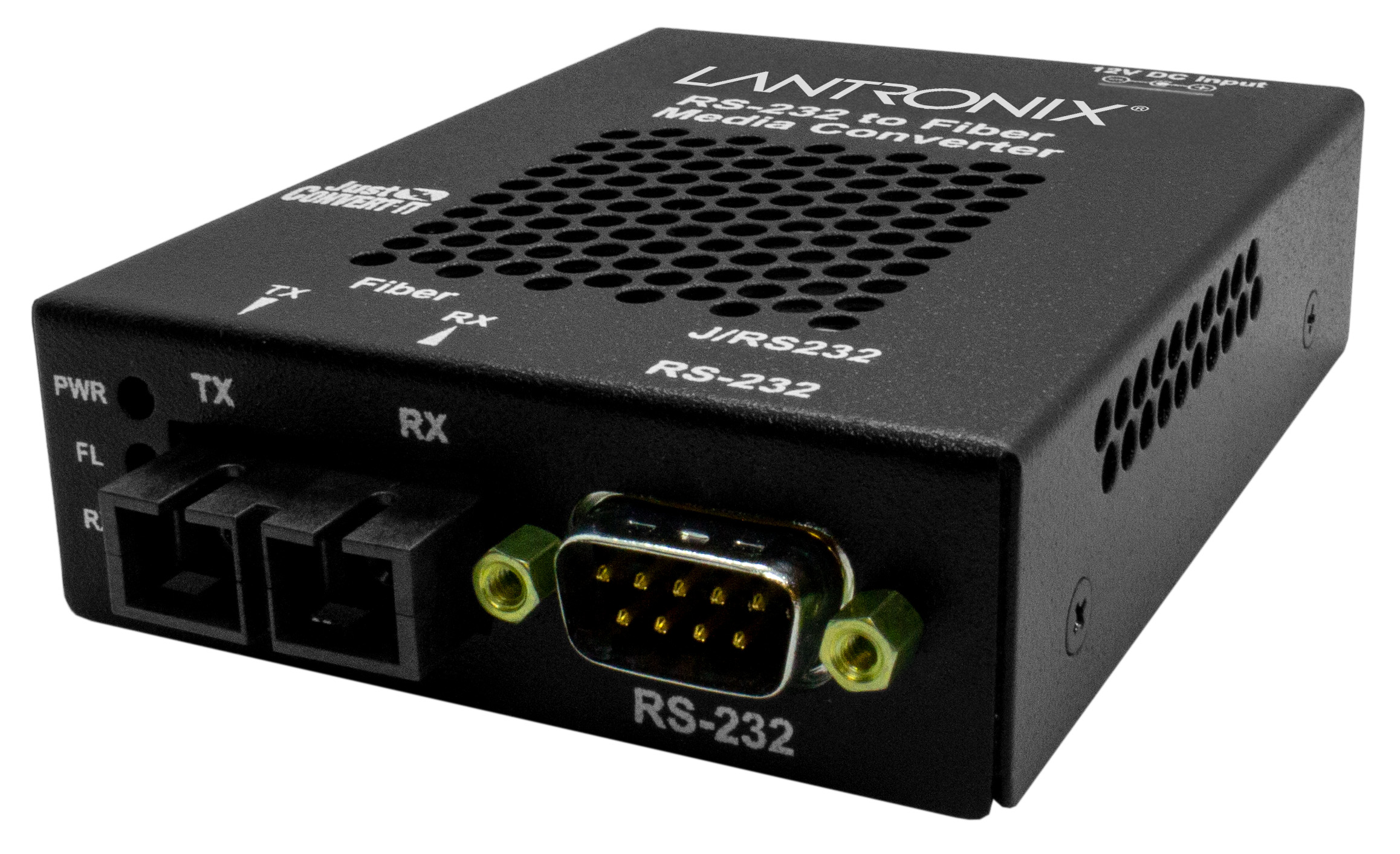

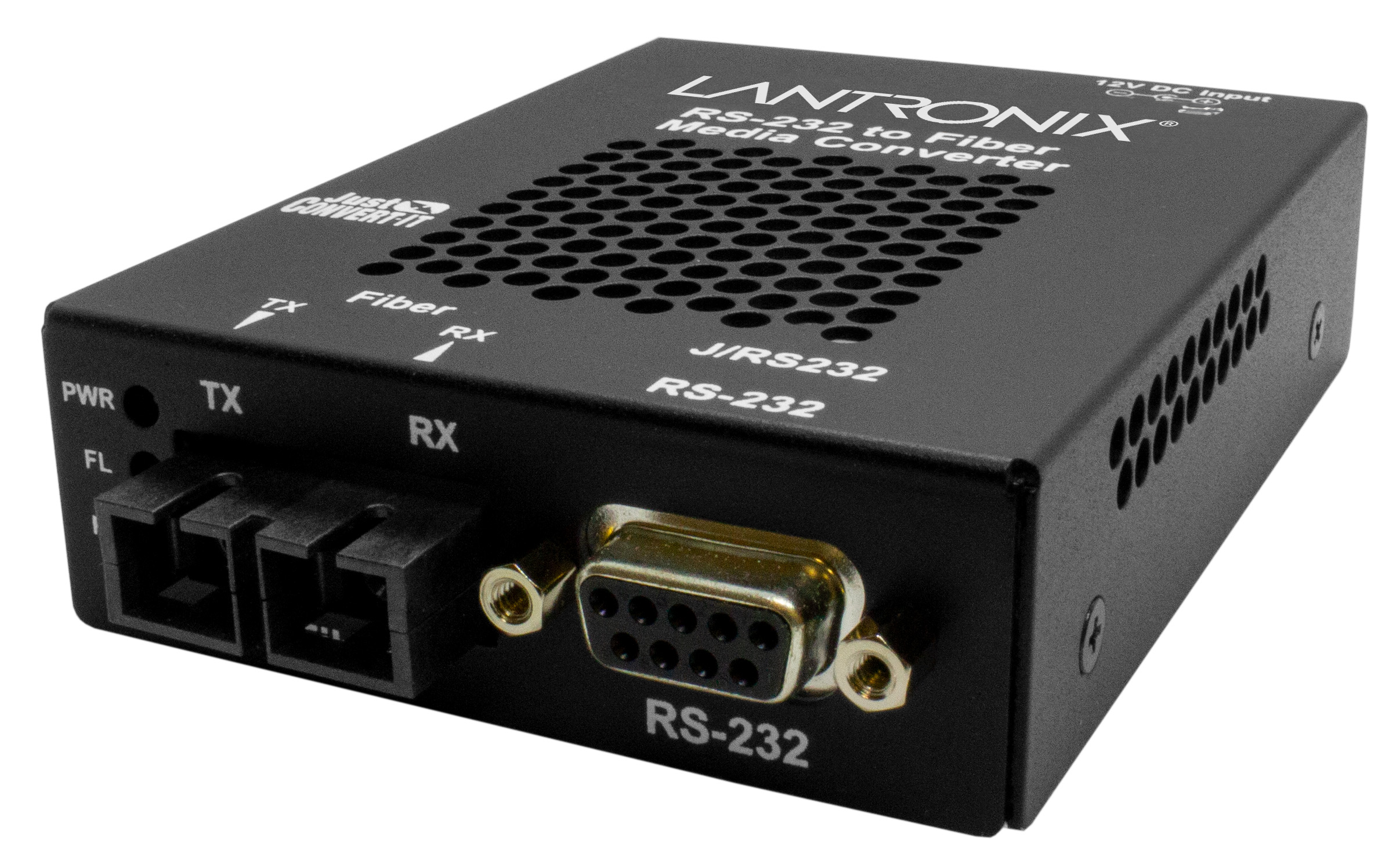

Both part numbers share the same 1300 nm multimode SC fiber port, 2 km reach, 11.0 dB link budget and 120 Kbps data rate. The only difference is the serial connector. J/RS232-CF-01(SC) has a female DB-9 wired as DCE, so it mates with a male DB-9 port. J/RS232-TF-01(SC) has a male DB-9 wired as DTE, so it mates with a female DB-9 port. Check the connector gender and DTE/DCE role of the equipment at each end of the link, since each end can need a different model.
Configure & order
Find your J/RS232 Series part number
Every orderable J/RS232 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the J/RS232 Series, organized by what it does — power, mounting & enclosures, chassis & shelves— each with why you'd add it.
Power
1 item
SPS-2460-SA
SPS-2460-SA
Stand-alone wide input external power supply for all Lantronix stand-alone media converters and some chassis.
$248.00
Ships on backorder
Mounting & enclosures
2 items
WMBD-FS
WMBD-FS
3.1” [79 mm] DIN Rail Mount Bracket (flat, small). It fits Stand-Alone Converters that are 3″ [76 mm] wide.
$16.00
Ships on backorder

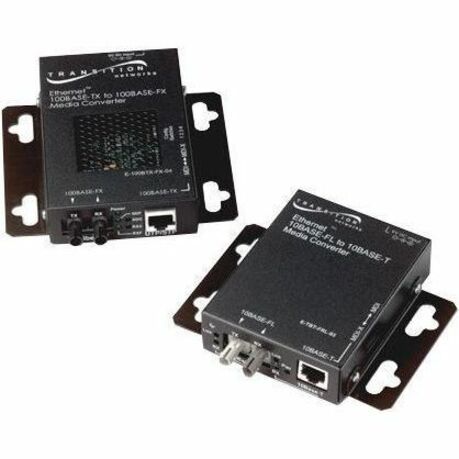

WMBS
WMBS
3.2” [81 mm] wall mount bracket for stand-alone converters size 3.9” [99 mm]. It is supplied as 1 pair.
$16.00
Ships on backorder
Chassis & shelves
3 items
WMBD
WMBD
5″ [127 mm] DIN Rail Mount Bracket for all Stand-Alone Converters and 1- or 2-Slot ION Chassis.
$11.00
Ships on backorder
RMS19-SA4-02
RMS19-SA4-02
19-inch, 1U rack-mount shelf for up to 4 stand-alone media converters. It includes 4 converter mounting brackets and 3 slot blanks.
$177.00
3 in stock
E-MCR-05
E-MCR-05
19” rack-mountable 12-slot media converter rack. It supports up to twelve Lantronix stand-alone media converters in a single chassis.
Compatibility taken from the Lantronix part-number tables for the J/RS232 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the J/RS232 Series is used
- Linking remote terminals to a host computer across a campus
- Extending POS and security scanner serial links between buildings
- Connecting building access and alarm panels over fiber
- Point-to-point serial links longer than 15 meters
J/RS232 Series datasheets & documentation
J/RS232 Series FAQ
How far can the J/RS232 extend an RS-232 connection?
The copper DB-9 side supports up to 15 m, and the fiber side reaches up to 2 km over 1300 nm multimode fiber with SC connectors and an 11.0 dB link budget. That replaces copper serial runs that would otherwise be limited to about 15 m.
What is the difference between J/RS232-CF-01(SC) and J/RS232-TF-01(SC)?
Only the serial connector differs. The CF model has a female DB-9 (DCE) and the TF model has a male DB-9 (DTE). Fiber type, wavelength, distance, data rate and power requirements are identical.
What data rate does the J/RS232 media converter support?
It supports full- or half-duplex serial transmission at speeds up to 120 Kbps and complies with EIA/TIA-574 and EIA/TIA RS-232E. LEDs indicate power, receive data and fiber link status.
How is the J/RS232 converter powered?
It uses an external AC/DC power supply with 12 VDC, 0.5 A minimum output and 120-240 VAC input, and consumes 3.0 W. The SPS-2460-SA supply is listed as compatible with stand-alone media converters.
What is the operating temperature of the J/RS232 Series?
The J/RS232 Series operates from 0 C to 50 C at 5% to 95% non-condensing humidity and altitudes up to 10,000 ft. Storage is rated -40 C to +85 C, and MTBF is 129,000 hours (Bellcore).
