Lantronix NTC-220 Series 4G LTE Cat 1 Industrial IoT Routers
Compact 4G LTE Cat 1 industrial routers with built-in GNSS, Ethernet, software-selectable RS232/RS485/RS422 serial and ignition sensing, for fixed IoT sites and vehicle tracking alike.
From $249.00
Overview
About the Lantronix NTC-220 Series
The NTC-220 Series (also written NTC220) is a family of 4G LTE Category 1 industrial IoT routers that connect a single Ethernet or serial device, plus I/O, to the cellular network. Cat 1 delivers up to 10 Mbps down and 5 Mbps up on LTE FDD, which suits telemetry, control and alarm traffic from elevators, vending and ticketing machines, signage, access control and traffic lights. Integrated GNSS and an ignition input also make it a vehicle and mobile-asset tracker.

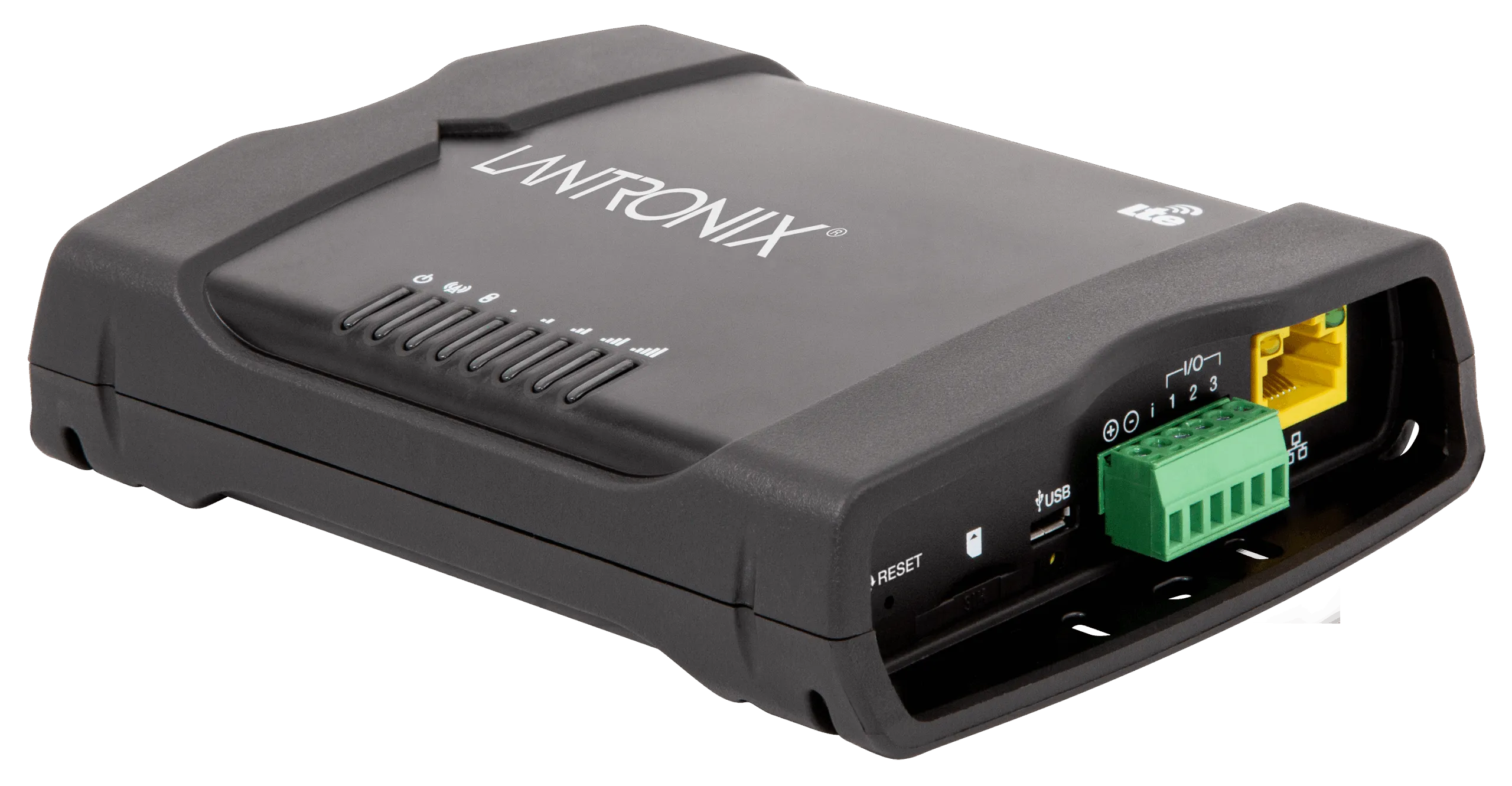

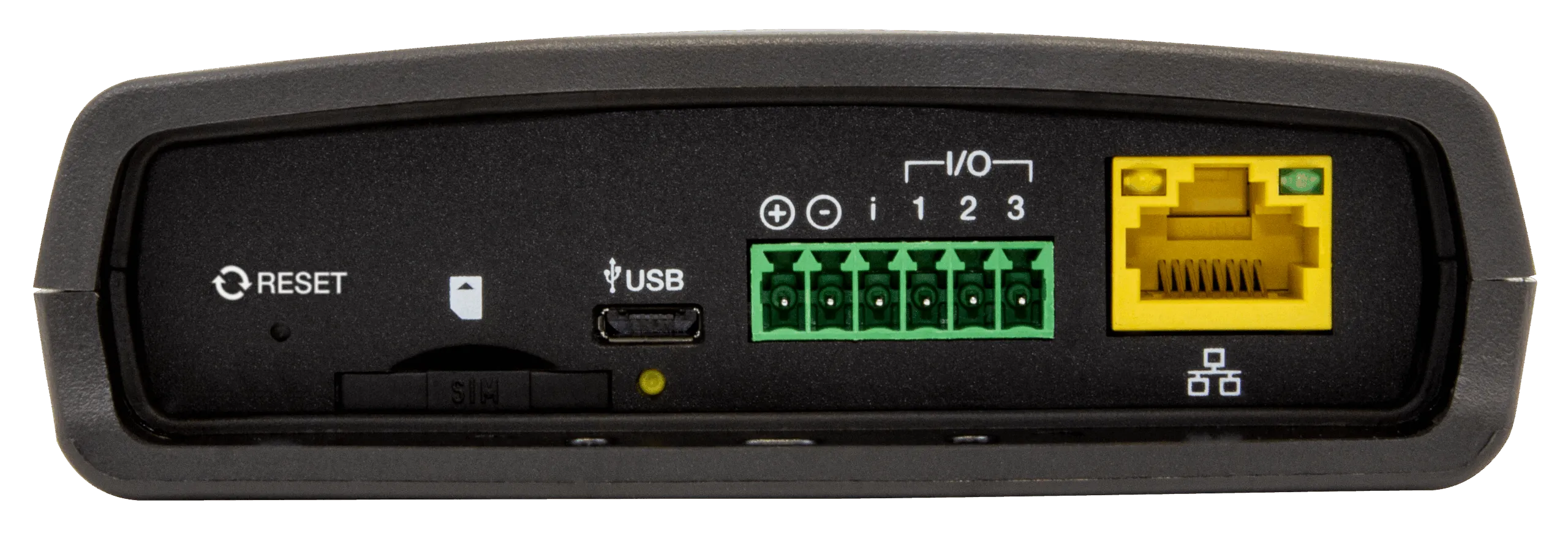

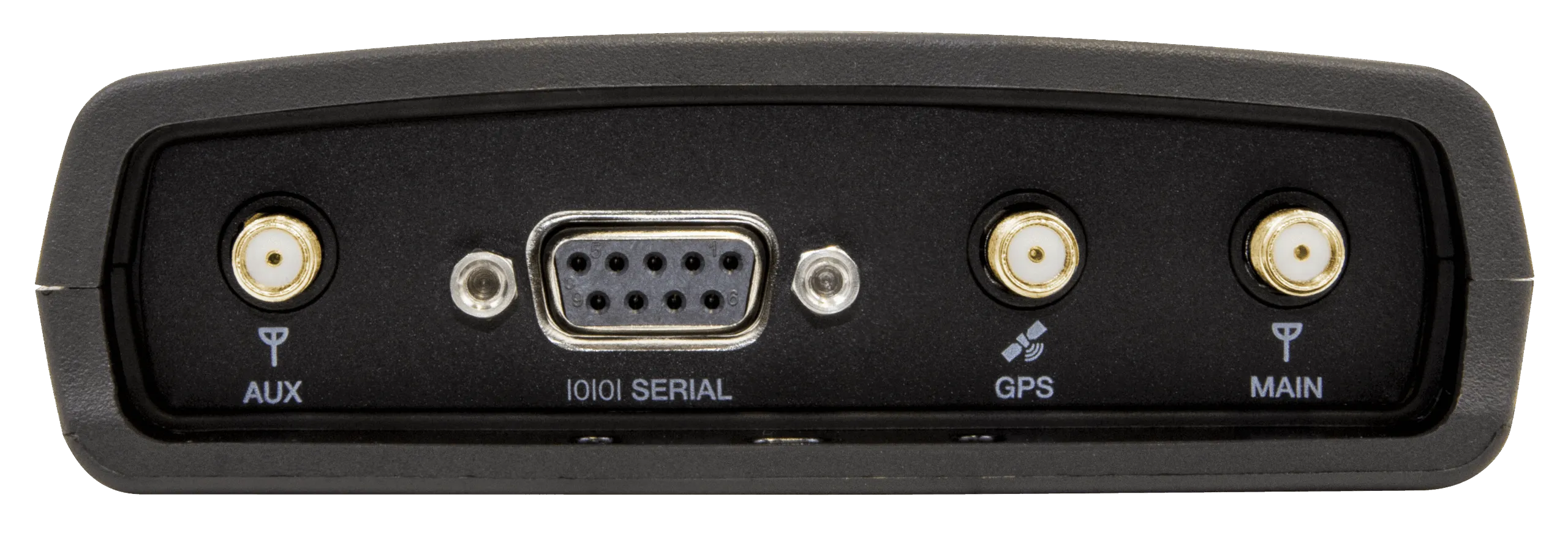

Each router has a 100Base-T RJ-45 port, a DB-9 serial port supporting 9-wire RS232 or RS485/RS422 with software-controlled termination, a micro USB 2.0 OTG port and three multipurpose I/O pins including a NAMUR-compatible input. GNSS covers GPS, GLONASS, BeiDou, Galileo and QZSS. Routing features include static and RIP routing, VRRP, IPsec for up to 5 tunnels, OpenVPN, GRE and PPTP, and a Modbus TCP gateway for up to 247 serial slaves. Power is 8-40 VDC with ISO7637 vehicle protection, 6 W typical, and the IP41 housing operates from -40°C to +70°C.
Management options include HTTPS web UI, SSH CLI, SNMP v1/v2/v3, TR-069, OMA LWM2M and SMS commands, with over-the-air firmware updates. The Linux-based Lantronix OS includes an SDK for custom applications in C, Lua or shell script, and fleets can be onboarded through the Percepxion platform.
Key capabilities
- Five regional variants
- Band-optimized models for Australia/NZ, EMEA, North America (AT&T, T-Mobile), USA Verizon, and a global NTC-227 covering 18 LTE bands.
- GNSS and ignition sense
- GPS, GLONASS, BeiDou, Galileo and QZSS positioning plus a dedicated ignition input and odometer reading for vehicle tracking.
- Selectable serial port
- DB-9 port runs 9-wire RS232 or RS485/RS422 with software-controlled termination, and a Modbus gateway supports up to 247 slaves.
- VPN and failover
- IPsec for up to 5 tunnels, OpenVPN client/server/P2P, GRE and PPTP, with VRRP for redundant router failover.
- Wide 8-40 VDC input
- Vehicle-compatible ISO7637 protection on the DC input, 6 W consumption and -40°C to +70°C operating range.
- Linux SDK
- Build and install custom applications in ANSI C, Lua or shell script with APIs into the router's runtime database.
How to choose the right NTC-220 Series part number
The third digit of the model number selects the LTE band set and region. NTC-221-01-01 covers Australia and New Zealand (B1, B2, B3, B4, B5, B7, B8, B28, B40). NTC-222-01-01 covers Europe, Middle East and Africa. NTC-224-01-01 targets AT&T and T-Mobile in North America on B2, B4 and B12. NTC-225-01-01 is the Verizon model on B4 and B13 and is the only one listed with dual SIM. NTC-227-01-01 is the global model with 18 bands. Add the PSU-0079 12 VDC supply for bench or mains-powered sites.
Configure & order
Find your NTC-220 Series part number
Every orderable NTC-220 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
NTC-221-01-01
$249.00
Ships on backorder
NTC-222-01-01
$249.00
Ships on backorder
NTC-224-01-01
$259.00
Ships on backorder
NTC-225-01-01
$249.00
Ships on backorder
NTC-227-01-01
4G LTE Cat-1 · No Wi-Fi · No Bluetooth · GNSS included
$289.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the NTC-220 Series, organized by what it does — antennas, power— each with why you'd add it.
Antennas
1 item
4G LTE Antenna
NANT-00001-000
Single 4G LTE antenna accessory with an L-hinged SMA male connector. The NANT-00001 antenna specifications list 698–2700 MHz coverage and 4.71 dBi maximum gain.
$8.40
Ships on backorder
Power
1 item
12V DC Power Supply
PSU-0079
12V DC, 1.5 A Standard Temperature PSU with interchangeable plugs.
$14.70
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the NTC-220 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.

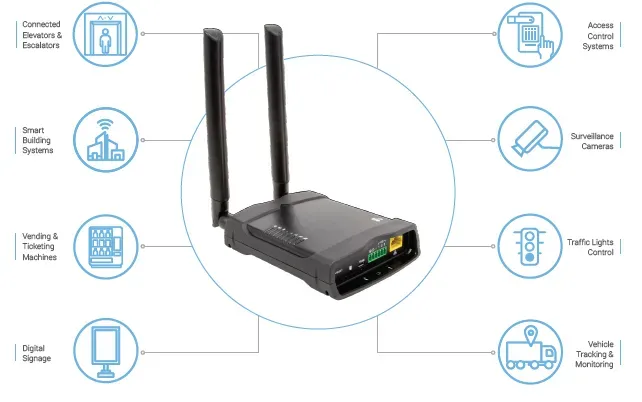

Where the NTC-220 Series is used
- Vehicle and heavy equipment tracking with ignition sensing
- Cellular connectivity for elevators, vending and ticketing machines
- Remote Modbus RTU telemetry over LTE Cat 1
- Traffic light controllers and access control panels
NTC-220 Series datasheets & documentation
NTC-220 Series FAQ
Which NTC-220 model should I use in the United States?
Use the NTC-224-01-01 for AT&T or T-Mobile (bands B2, B4, B12) or the NTC-225-01-01 for Verizon (B4, B13, with dual SIM). The NTC-227-01-01 global model also covers B2, B4, B12, B13 and other bands.
What data speeds does the NTC-220 support?
LTE Cat 1 FDD reaches up to 10 Mbps download and 5 Mbps upload. Depending on model, it also falls back to DC-HSPA+, UMTS, EDGE and GPRS.
What power input does the NTC-220 accept?
8 to 40 VDC through a 6-way terminal block, with ISO7637 vehicle protection. Consumption is 6 W, and Lantronix recommends a 12 V 1.5 A supply such as the PSU-0079.
What comes in the NTC-220 box?

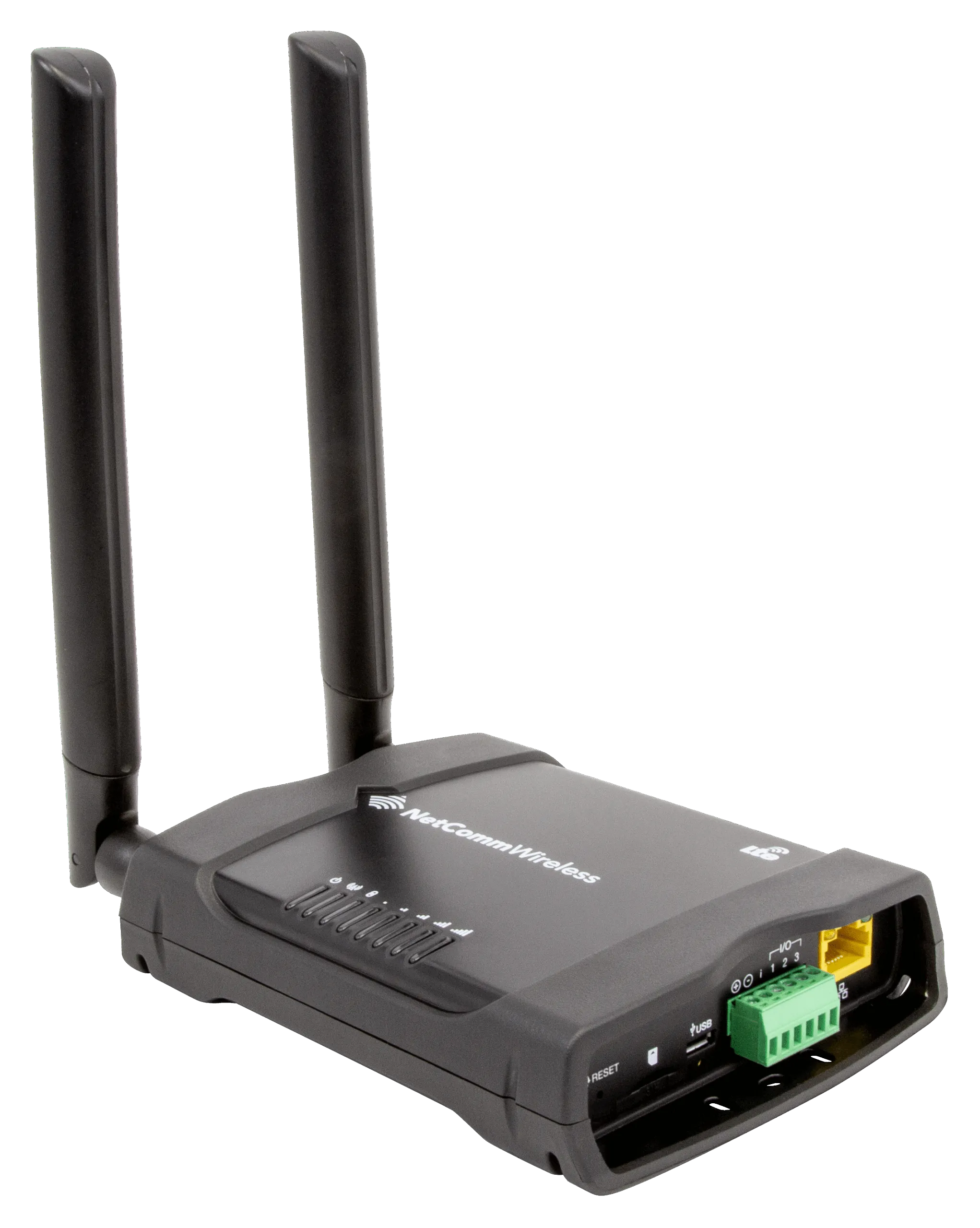

The router, a DIN rail bracket, a horizontal DIN rail bracket, two cellular antennas, a six-way terminal block, a 1.5 m Ethernet cable and a quick start guide.
Can I run my own software on the NTC-220?
Yes. The Linux-based Lantronix OS includes an SDK for applications in ANSI C, Lua or shell script, installed through a package manager in the web UI.
