Lantronix S6010 Series T1/E1 over Fiber Media Converters
The ION S6010 is a stand-alone, remotely managed DS1 T1/E1 media converter and NID that extends T1, E1 or PRI circuits over multimode or single-mode fiber, used in pairs at each end of the link.
Overview

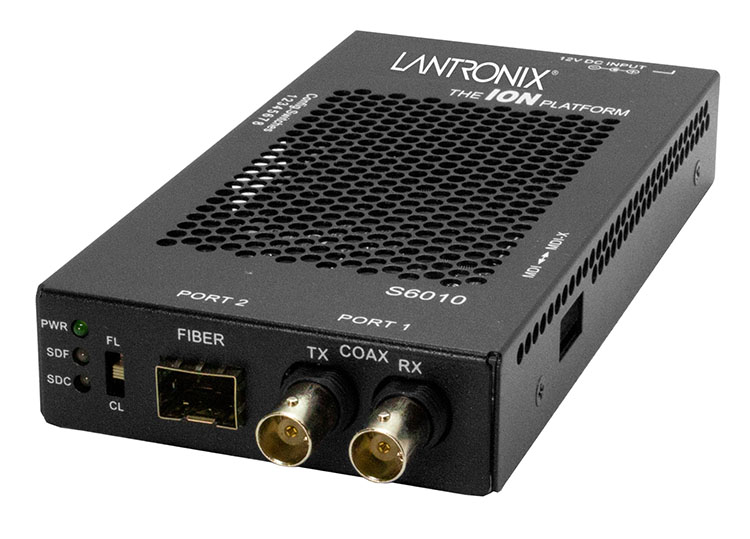

About the Lantronix S6010 Series
The ION S6010 Series (also written S6010) carries DS1 circuits over fiber where copper T1 or E1 runs are too long, too noisy or already exhausted. Each unit converts a twisted-pair RJ-48 port to a fiber port, and a pair of converters, one at each end, forms the link. A switch selects T1 at 1.544 Mbit/s or E1 at 2.048 Mbit/s, so the same hardware serves both North American and international circuits, including PRI.
Fixed-optic models use ST or SC connectors on 1300 nm multimode to 2 km or 1310 nm single-mode to 20 km. The SFP model accepts standard 100Base-X/OC-3 SFPs with LC connectors, including CWDM SFPs that add capacity to existing fiber, plus single-fiber options. The twisted-pair side is rated to 1.5 km. Local or remote loopbacks on the copper or fiber side simplify circuit turn-up and fault isolation.
When the far-end S6010 links to a C6010 card in a managed ION chassis, it is managed in-band over the fiber, with SNMP, remote firmware upgrades and loopback control. The unit draws 2.6 W from a 100-240 VAC adapter with 12 VDC output and operates from -10°C to 65°C.
Key capabilities
- T1 or E1 by switch
- A selectable switch sets each unit for T1 at 1.544 Mbit/s or E1 at 2.048 Mbit/s, covering DS1 and PRI circuits with one part number.
- Remote in-band management
- Linked to a C6010 card in a managed ION chassis, the remote S6010 is monitored and upgraded over the fiber with no separate management connection.
- Loopback testing
- Local or remote loopbacks on copper or fiber let technicians test each segment of the circuit during turn-up and troubleshooting.
- CWDM and single-fiber options
- The open SFP slot accepts 100Base-X/OC-3 SFPs, including CWDM optics and single-fiber modules, to stretch distance or multiply fiber capacity.
- -10 to 65°C operation
- Rated for -10°C to 65°C at 5% to 95% non-condensing humidity, with only 2.6 W power consumption.
How to choose the right S6010 Series part number

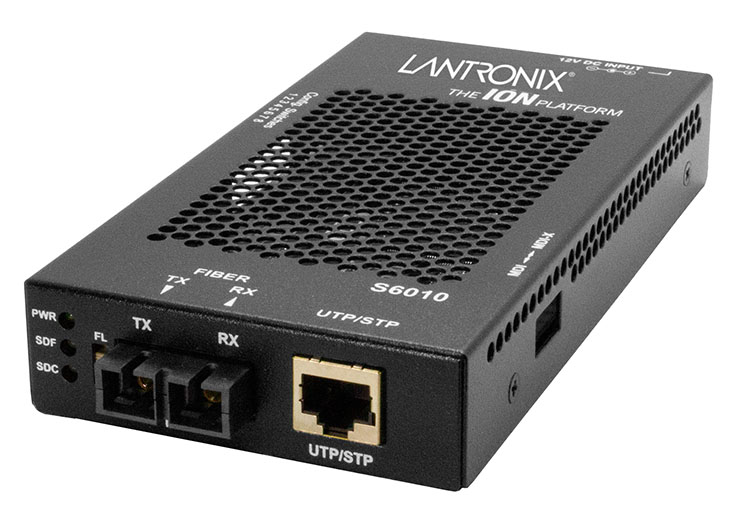

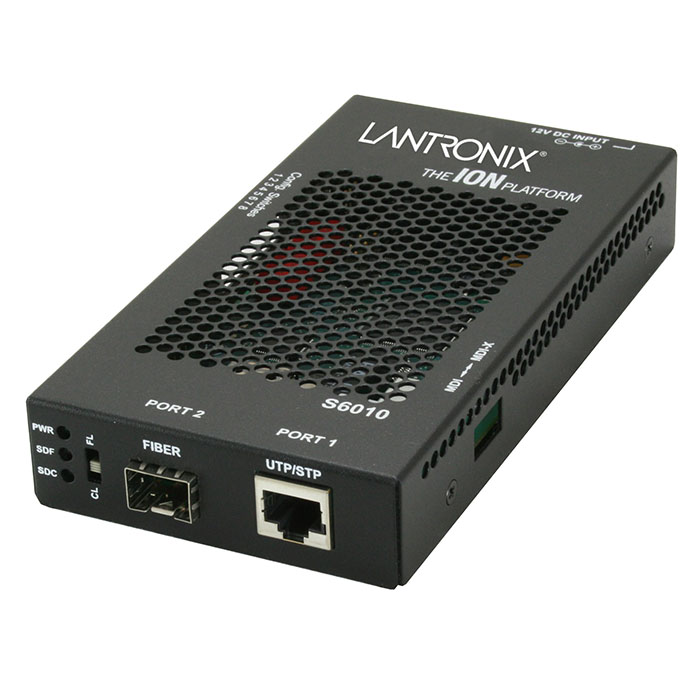

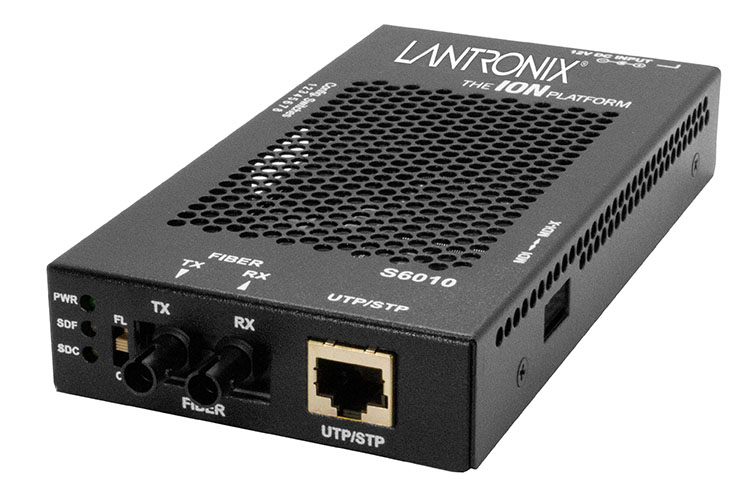

All S6010 models have one RJ-48 twisted-pair port rated to 1.5 km; the fiber interface sets the part number. S6010-1011 uses 1300 nm multimode on ST connectors to 2 km (11.0 dB budget). S6010-1013 is 1300 nm multimode on SC to 2 km (12.0 dB). S6010-1014 is 1310 nm single-mode on SC to 20 km (16.0 dB). S6010-1040 has an empty SFP slot for CWDM, single-fiber or longer-reach optics. Order two units per link, and match the fiber type at both ends. Mounting accessories include WMBD, WMBL, RMS19-SA4-02 and E-MCR-05.
Configure & order
Find your S6010 Series part number
Every orderable S6010 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the S6010 Series, organized by what it does — power, mounting & enclosures, chassis & shelves— each with why you'd add it.
Power
1 item
SPS-2460-SA
SPS-2460-SA
Stand-alone wide input external power supply for all Lantronix stand-alone media converters and some chassis.
$248.00
Ships on backorder
Mounting & enclosures
1 item
WMBL
WMBL
4″ [102 mm] wall-mount bracket kit for stand-alone converters size 4.8″ [122 mm] and 6.5″ [165 mm]. It is listed as a compatible accessory for the E-100BTX Series.
$16.00
2 in stock
Chassis & shelves
3 items
WMBD
WMBD
5″ [127 mm] DIN Rail Mount Bracket for all Stand-Alone Converters and 1- or 2-Slot ION Chassis.
$11.00
Ships on backorder
RMS19-SA4-02
RMS19-SA4-02
19-inch, 1U rack-mount shelf for up to 4 stand-alone media converters. It includes 4 converter mounting brackets and 3 slot blanks.
$177.00
3 in stock
E-MCR-05
E-MCR-05
19” rack-mountable 12-slot media converter rack. It supports up to twelve Lantronix stand-alone media converters in a single chassis.
Compatibility taken from the Lantronix part-number tables for the S6010 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the S6010 Series is used
- Extending T1 or E1 circuits between buildings over fiber
- Carrying ISDN PRI to a remote PBX location
- Carrier demarcation with remote in-band NID management
- Adding DS1 circuits to existing CWDM fiber plant
S6010 Series datasheets & documentation
S6010 Series FAQ
Do S6010 T1/E1 converters need to be used in pairs?
Yes. S6010 DS1 converters must be used in pairs, one on each end of the fiber link. Alternatively, the remote S6010 can link to a C6010 card in an ION chassis for in-band management.
Can the S6010 run both T1 and E1?
Yes. Each unit is switch selectable for T1 (1.544 Mbit/s) or E1 (2.048 Mbit/s). It complies with ANSI T1.102, T1.402, T1.408, ITU I.431, G.703, G.823 and related ETSI standards, and can extend PRI over fiber.
How far can the S6010 transmit over fiber?
Multimode models S6010-1011 and S6010-1013 reach 2 km at 1300 nm. The single-mode S6010-1014 reaches 20 km at 1310 nm. The S6010-1040 SFP-slot model distance depends on the installed 100Base-X/OC-3 SFP.
How is the S6010 managed remotely?
Management is in-band over the fiber when the remote S6010 links to a C6010 card in a managed ION chassis. This provides SNMP management, remote firmware upgrades and loopback control. A remote stand-alone can also be managed by its local peer.
What is the operating temperature of the S6010 Series?
The S6010 operates from -10°C to 65°C at 5% to 95% non-condensing humidity and up to 10,000 feet. It carries FCC Class A, CE, UKCA and UL certifications.
