Lantronix C2110-1011 — Media Converter Module
$222.77$331.52
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 100Base-TX to 100Base-FX conversion from RJ-45 copper [100 m/328 ft.] to 1300nm multimode ST fiber [2 km/1.2 mi.]
- 100 Mbps Layer 1 operation for Fast Ethernet media conversion
- Auto-Negotiation of speed and duplex on TP port
- Auto-MDI/MDIX on TP port
- Link Pass Through (LPT) and Far-End-Fault (FEF) detection
- Manageable Features when used in an ION Platform chassis with an ION Management Module
- Field Upgradeable Firmware

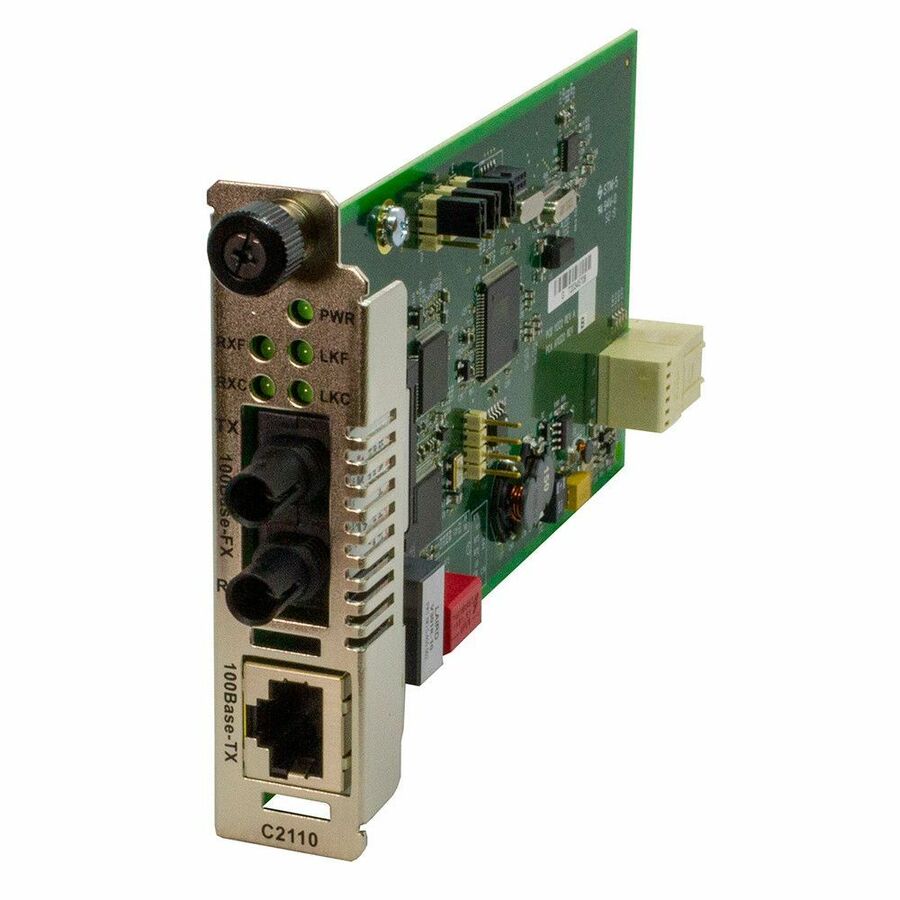

Lantronix C2110-1011 is an ION Fast Ethernet media converter module that provides an interface between 100Base-TX ports and 100Base-FX ports. This SKU converts 100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (ST) [2 km/1.2 mi.] with an 11.0 dB link budget. The C2110 Series operates at Layer 1 with a 100 Mbps data rate. It supports Auto-Negotiation of speed and duplex on the TP port, Auto-MDI/MDIX on the TP port, Link Pass Through (LPT), Far-End-Fault (FEF) detection, Automatic Link Restoration, and Pause advertisement. The module can be used in any ION Platform Chassis. Manageable Features are available when used in an ION Platform chassis along with an ION Management Module, including reporting TP and Fiber Link Status, hardware switch settings, Copper Port Speed, TP and Fiber Port Duplex, and fault condition.
Ideal For
- Integrating fiber optic cabling into 100Base-TX copper environments
- Converting Fast Ethernet RJ-45 links to 100Base-FX multimode ST fiber
- Using ION Platform chassis slots for Fast Ethernet media conversion
- Monitoring converter status through chassis management software when used with an ION Management Module
Specifications
| MTBF | Greater than 250,000 hours (MIL-HDBK-217F); Greater than 667,500 hours (Bellcore) |
| Depth | 6.5” [165 mm] |
| Pause | UP=enabled |
| Width | 0.86” [22 mm] |
| Height | 3.4” [86 mm] |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 100 Mbps, Layer 1 |
| Standards | IEEE 802.3 |
| Link Budget | 11.0 dB |
| Auto-mdi Mdix | Enable/Disable |
| Certification | CISPR/EN55022 Class A; FCC Class A; CE Mark |
| Far-end-fault | UP = enabled |
| Fiber Interface | 100Base-FX 1300nm multimode (ST) [2 km/1.2 mi.] |
| Auto-negotiation | UP = enabled |
| Copper Interface | 100Base-TX (RJ-45) [100 m/328 ft.] |
| Link Pass Through | UP = enabled |
| Power Consumption | 2.7 Watts, 230 mA @ 12 VDC |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What network types does C2110-1011 convert between?▾
It converts 100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (ST) [2 km/1.2 mi.].
Can this module be used in an ION Platform chassis?▾
Yes. The C2110 Series can be used in any ION Platform Chassis.
When are the manageable features available?▾
Manageable Features are available when used in an ION Platform chassis along with an ION Management Module.
What fiber connector and distance does this SKU support?▾
The fiber side is 100Base-FX 1300nm multimode with an ST interface and a 2 km/1.2 mi. reach.
