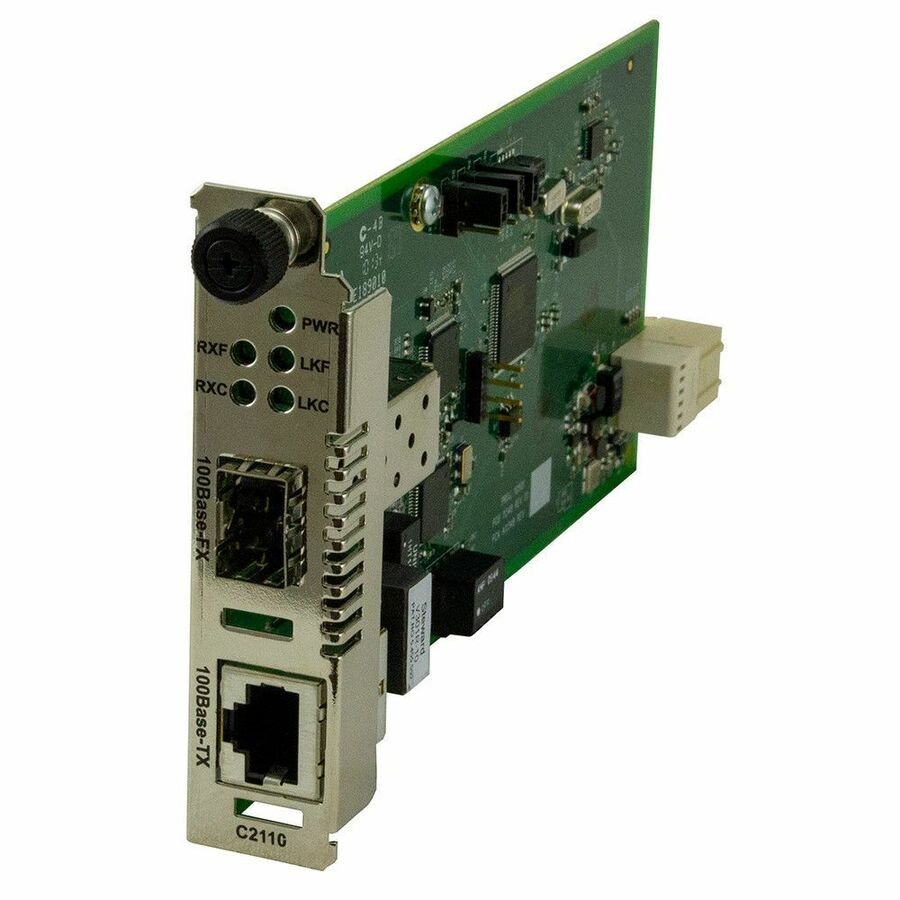

Lantronix C2110-1040 — Media Converter Module
$181.76$269.92
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 100Base-TX-to-100Base-X conversion with RJ-45 copper and an empty SFP slot
- 100 Mbps Layer 1 operation
- Auto-Negotiation of speed and duplex on TP port
- Auto-MDI/MDIX on TP port
- Link Pass Through (LPT), Far-End-Fault (FEF) detection, and Automatic Link Restoration
- Manageable Features when used in an ION Platform chassis along with an ION Management Module
- Field Upgradeable Firmware
Lantronix C2110-1040 is an ION Fast Ethernet media converter module with 100Base-TX (RJ-45) [100 m/328 ft.] and a 100Base-X SFP Slot (empty). Operating at 100 Mbps, Layer 1, the module supports Auto-Negotiation of speed and duplex on the TP port, Auto-MDI/MDIX, Link Pass Through, Far-End-Fault detection, Automatic Link Restoration, Pause advertisement, and Field Upgradeable Firmware. Manageable Features are available when used in an ION Platform chassis along with an ION Management Module. The module can report TP and Fiber Link Status, Hardware switch settings, Copper Port Speed, TP and Fiber Port Duplex, and Fault condition to chassis management software.
Ideal For
- Adding a 100Base-X SFP interface to a 100Base-TX copper environment in an ION Platform chassis
- Managed ION chassis deployments that need converter status reported to chassis management software
- Fast Ethernet links that use Link Pass Through and Far-End-Fault detection
- Installations that require an empty SFP slot rather than a fixed ST, SC, or LC fiber interface
Specifications
| Sw1 | Auto-Negotiation (UP = enabled) |
| Sw2 | Pause (UP=enabled) |
| Sw3 | Link Pass Through (UP = enabled) |
| Sw4 | Far-End-Fault (FEF) (UP = enabled) |
| MTBF | Greater than 250,000 hours (MIL-HDBK-217F); Greater than 667,500 hours (Bellcore) |
| Depth | 6.5” [165 mm] |
| Layer | Layer 1 |
| Width | 0.86” [22 mm] |
| Height | 3.4” [86 mm] |
| Weight | 1 lb. [0.45 kg] |
| Lkc LED | ON = Copper Link |
| Lkf LED | ON = Fiber Link |
| Pwr LED | ON = Connection to powered backplane |
| Rxc LED | Blinking = Data received on Copper link |
| Rxf LED | Blinking = Data received on Fiber Link |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 100 Mbps |
| Standards | IEEE 802.3 |
| Certification | CISPR/EN55022 Class A; FCC Class A; CE Mark |
| Configuration | 100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-X SFP Slot (empty) |
| Network Ports | 1 x Network (RJ-45) |
| Expansion Slots | 1 x SFP Slots |
| Internal Jumper | Auto-MDI/MDIX: Enable/Disable |
| Power Consumption | 2.7 Watts, 230 mA @ 12 VDC |
| Manageable Features | Available when used in an ION Platform chassis along with an ION Management Module |
| Chassis Compatibility | Any ION Platform Chassis |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What is the interface configuration of C2110-1040?▾
C2110-1040 is listed as 100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-X SFP Slot (empty).
Is the SFP slot populated?▾
No. The Lantronix part-table description lists the C2110-1040 SFP slot as empty.
When are manageable features available?▾
Manageable Features are available when used in an ION Platform chassis along with an ION Management Module.
What management status can it report?▾
It can report TP and Fiber Link Status, Hardware switch settings, Copper Port Speed, TP and Fiber Port Duplex, and Fault condition to chassis management software.
