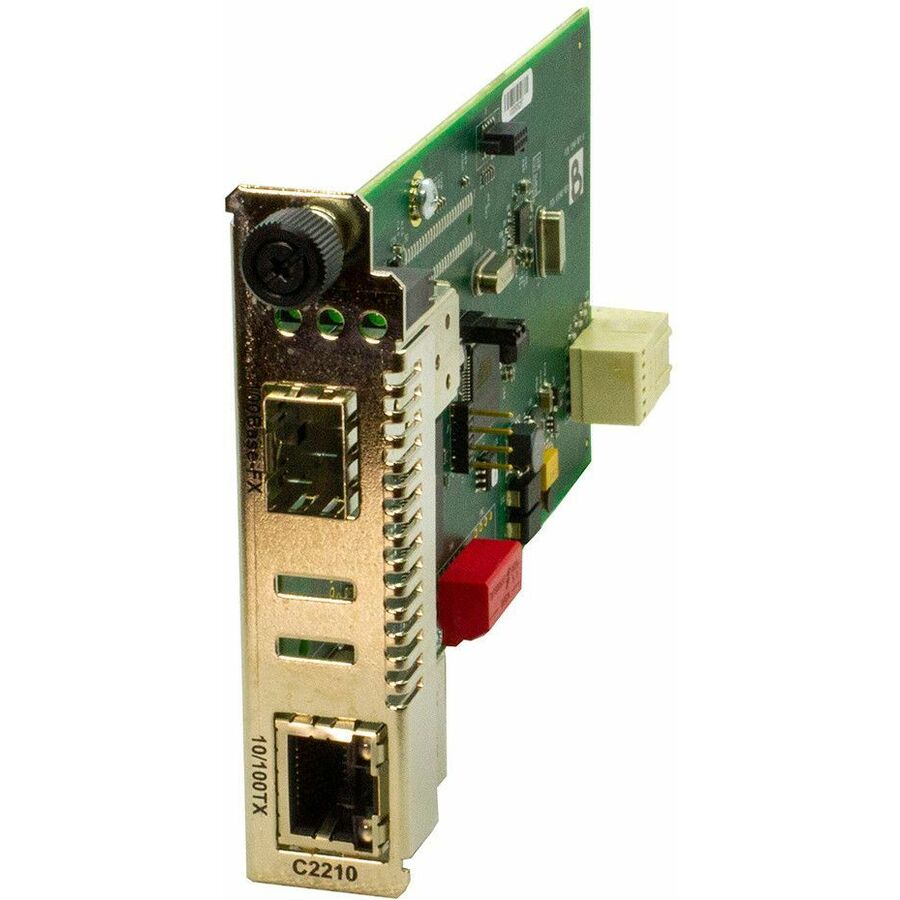

Lantronix C2210-1011 — Media Converter Module
$215.18$320.32
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (ST) [2 km/1.2 mi.] conversion
- 11.0 dB link budget for the C2210-1011 fiber interface
- Rate conversion allows legacy 10Base-T copper devices to connect to 100Base-FX fiber
- Auto-Negotiation of speed and duplex on the TP port
- Auto-MDI/MDIX on the TP port
- Link Pass Through (LPT) and Far-End-Fault (FEF) detection
- ION Platform Chassis support for use in any ION Platform Chassis
Lantronix C2210-1011 provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the ION C2210 converts copper to fiber and provides rate conversion, allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber. This SKU is configured for 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (ST) [2 km/1.2 mi.] with an 11.0 dB link budget. The C2210 is manageable when installed in a managed ION chassis. Manageable features are available when used in an ION Platform chassis along with an ION Management Module.
Ideal For
- Integrating fiber optic cabling into 10/100 copper environments
- Connecting legacy 10Base-T copper devices to 100Base-FX fiber
- Installing a manageable media converter in a managed ION chassis
- Linking standard 10/100Base-TX ports with standard 100Base-FX ports
Specifications
| Layer | Layer 2 |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 10 Mbps; 100 Mbps |
| Standards | IEEE 802.3u; IEEE 802.3x |
| Environment | Environment specs are dependent on the chassis chosen |
| Link Budget | 11.0 dB |
| MTBF Bellcore | Greater than 667,500 hours |
| Certifications | CISPR/EN55022 Class A, FCC Class A, CE Mark, EN55024 |
| Max Frame Size | 2048 bytes |
| Fiber Interface | 100Base-FX 1300nm multimode (ST) [2 km/1.2 mi.] |
| Copper Interface | 10/100Base-TX (RJ-45) [100 m/328 ft.] |
| Mac Address Table | 1K |
| Power Consumption | 2.5 Watts, 200 mA @ 13.9 VDC |
| MTBF Mil-hdbk-217f | Greater than 250,000 hours |
| Frame Buffer Memory | 512 Kbits |
| Dimensions W X D X H | 0.86” [22 mm] x 6.5” [165 mm] x 3.4”[86 mm] |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What interfaces does the C2210-1011 provide?▾
It provides 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (ST) [2 km/1.2 mi.] conversion with an 11.0 dB link budget.
Can this module connect legacy 10Base-T copper devices to fiber?▾
Yes. The ION C2210 provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
When are manageable features available?▾
Manageable features are available when used in an ION Platform chassis along with an ION Management Module.
What chassis does the C2210 Series support?▾
It can be used in any ION Platform Chassis.
