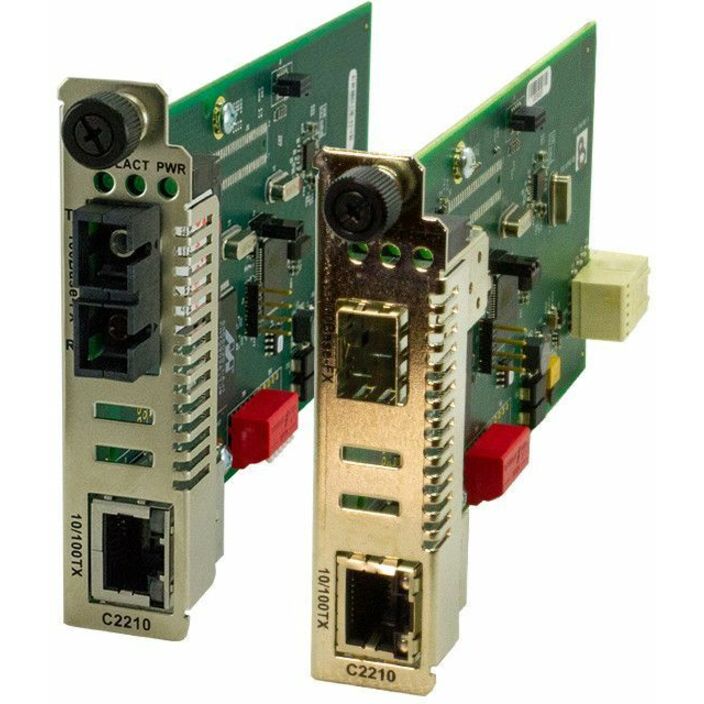

Lantronix C2210-1039 — Media Converter Module
$376.32
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100Base-TX RJ-45 to 100Base-FX 1300nm multimode LC conversion with 100 m/328 ft. copper and 2 km/1.2 mi. fiber reach
- Rate conversion for legacy 10Base-T copper devices connecting to 100Base-FX fiber
- Auto-Negotiation of speed and duplex on the TP port
- Auto-MDI/MDIX on the TP port
- Link Pass Through and Far-End-Fault detection
- Manageable Features available when used in an ION Platform chassis along with an ION Management Module
The Lantronix ION C2210 is a Fast Ethernet media and rate converter module for connecting 10/100Base-TX copper ports to 100Base-FX fiber ports. This C2210-1039 configuration supports 1300nm multimode fiber over LC with a 2 km/1.2 mi. fiber distance and an 11.0 dB link budget. Operating at Layer 2, the ION C2210 converts copper to fiber and provides rate conversion, allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber. The module supports Auto-Negotiation of speed and duplex on the TP port, Auto-MDI/MDIX, Link Pass Through, Far-End-Fault detection, Automatic Link Restoration and Field Upgradeable Firmware. Manageable Features are available when used in an ION Platform chassis along with an ION Management Module.
Ideal For
- Integrating fiber optic cabling into 10/100 copper environments
- Connecting legacy 10Base-T copper devices to 100Base-FX fiber
- Adding 100Base-FX multimode LC fiber links in an ION Platform Chassis
- Using chassis management software to report converter status when installed with an ION Management Module
Specifications
| Depth | 6.5” [165 mm] |
| Layer | Layer 2 |
| Width | 0.86” [22 mm] |
| Height | 3.4”[86 mm] |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 10 Mbps; 100 Mbps |
| Standards | IEEE 802.3u; IEEE 802.3x |
| Fiber Mode | Multimode |
| Wavelength | 1300nm |
| Link Budget | 11.0 dB |
| MTBF Bellcore | Greater than 667,500 hours |
| Certifications | CISPR/EN55022 Class A, FCC Class A, CE Mark, EN55024 |
| Fiber Distance | 2 km/1.2 mi. |
| Max Frame Size | 2048 bytes |
| Copper Distance | 100 m/328 ft |
| Fiber Connector | LC |
| Fiber Interface | 100Base-FX |
| Copper Interface | 10/100Base-TX (RJ-45) |
| Mac Address Table | 1K |
| Power Consumption | 2.5 Watts, 200 mA @ 13.9 VDC |
| MTBF Mil-hdbk-217f | Greater than 250,000 hours |
| Frame Buffer Memory | 512 Kbits |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What interfaces does the C2210-1039 convert between?▾
It converts between 10/100Base-TX (RJ-45) copper and 100Base-FX 1300nm multimode (LC) fiber.
Can this module connect legacy 10Base-T devices to 100Base-FX fiber?▾
Yes. The ION C2210 provides rate conversion that allows legacy 10Base-T copper devices to connect to 100Base-FX fiber.
When are the manageable features available?▾
Manageable Features are available when the module is used in an ION Platform chassis along with an ION Management Module.
What chassis can this module be used in?▾
The C2210 Series can be used in any ION Platform Chassis.
