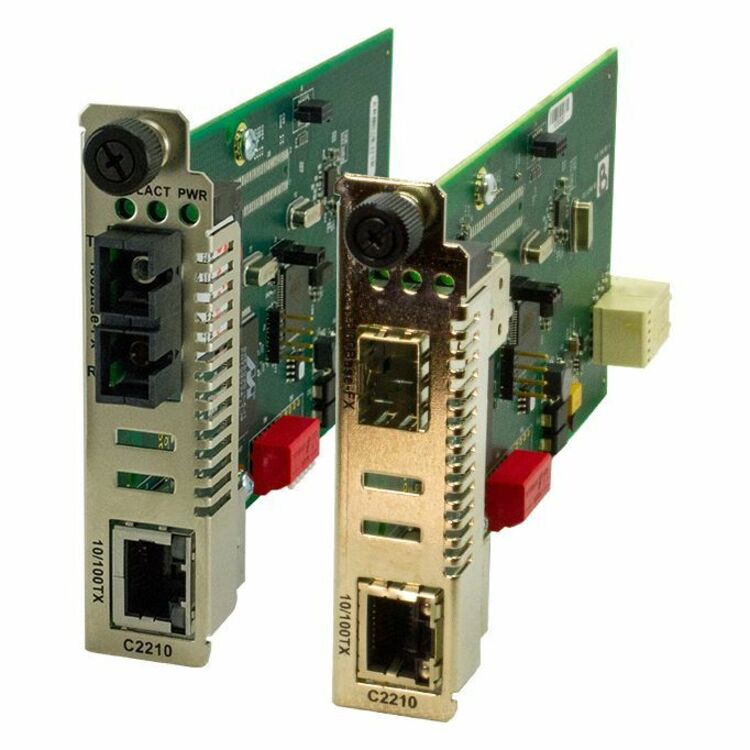

Lantronix C2210-1019 — Media Converter Module
$594.30
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100Base-TX (RJ-45) to 100Base-FX 1310nm single mode (LC) conversion
- 20 km/12.4 mi. fiber reach with 17.3 dB link budget
- Layer 2 rate conversion for legacy 10Base-T copper devices to connect to 100Base-FX fiber
- Auto-Negotiation of speed and duplex on TP port
- Auto-MDI/MDIX on TP port
- Link Pass Through (LPT) and Far-End-Fault (FEF) detection
- Manageable features when used in an ION Platform chassis with an ION Management Module
The ION C2210 is a Fast Ethernet media and rate converter module that provides an interface between 10/100Base-TX ports and 100Base-FX ports. It allows users to integrate fiber optic cabling into 10/100 copper environments. C2210-1019 converts 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1310nm single mode (LC) [20 km/12.4 mi.] with a 17.3 dB link budget. Operating at Layer 2, the converter provides copper-to-fiber conversion and rate conversion for legacy 10Base-T copper devices connecting to 100Base-FX fiber. Manageable features are available when used in an ION Platform chassis along with an ION Management Module.
Ideal For
- Integrating fiber optic cabling into 10/100 copper environments
- Connecting legacy 10Base-T copper devices to 100Base-FX fiber
- Extending Fast Ethernet over 1310nm single mode LC fiber up to 20 km/12.4 mi
- Adding a manageable media converter module to an ION Platform chassis with an ION Management Module
Specifications
| Layer | Layer 2 |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 10 Mbps; 100 Mbps |
| Standards | IEEE 802.3u; IEEE 802.3x |
| Dimensions | 0.86” [22 mm] x 6.5” [165 mm] x 3.4”[86 mm] |
| Environment | Environment specs are dependent on the chassis chosen |
| Link Budget | 17.3 dB |
| MTBF Bellcore | Greater than 667,500 hours |
| Certifications | CISPR/EN55022 Class A, FCC Class A, CE Mark, EN55024 |
| Fiber Distance | 20 km/12.4 mi. |
| Max Frame Size | 2048 bytes |
| Copper Distance | 100 m/328 ft |
| Fiber Interface | 100Base-FX 1310nm single mode (LC) |
| Copper Interface | 10/100Base-TX (RJ-45) |
| Mac Address Table | 1K |
| Power Consumption | 2.5 Watts, 200 mA @ 13.9 VDC |
| MTBF Mil-hdbk-217f | Greater than 250,000 hours |
| Frame Buffer Memory | 512 Kbits |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What connections does the C2210-1019 convert between?▾
It converts between 10/100Base-TX (RJ-45) copper and 100Base-FX 1310nm single mode (LC) fiber.
What fiber distance does this configuration support?▾
The fiber side supports 20 km/12.4 mi. with a 17.3 dB link budget.
Are the manageable features available on this module?▾
Manageable features are available when used in an ION Platform chassis along with an ION Management Module.
Can this module be used in an ION Platform Chassis?▾
Yes. The C2210 Series can be used in any ION Platform Chassis.
