Lantronix ION219 19-Slot Media Converter Chassis
The ION219 is the high-density chassis of the Lantronix ION platform, holding nineteen slide-in media converter and network interface modules for carrier central offices, data centers and large enterprise fiber plants.
From $1,495.00
Overview
About the Lantronix ION219 Chassis
The ION219 (also written ION 219) concentrates up to nineteen ION slide-in modules in one shelf, so a carrier or enterprise can terminate many fiber-to-copper conversion points in a single managed location. Lantronix positions it for carrier-class and enterprise networks where many points of fiber integration need secure management. Modules can pair with modules in another ION chassis or with Lantronix stand-alone converters at the far end of each link.
Power supply modules install in two rear bays, keeping the front panel free for all nineteen slots. Supplies are available for 100-240 VAC or -48 VDC, the common telecom plant voltage. A single supply runs the chassis and every module, with 12 VDC output rated at 200 W and up to +12 VDC per slot; adding a second supply provides instant failover. The chassis consumes up to 150 W, measures 17 x 15.8 x 3.5 inches, weighs 19 lbs and operates from 0°C to 50°C.
With an ION Management Module installed, administrators configure, monitor and troubleshoot every card over web, telnet or local CLI, or SNMP using public MIBs, with management VLAN, SSL, SSH and IEEE 802.1X controlling access. Lantronix cites TELUS and Iron Mountain as deployments of its ION platform and media converter chassis.
Key capabilities
- Nineteen module slots
- Nineteen front slots for ION slide-in modules let one shelf replace a rack of individual media converters and their power adapters.
- Rear power bays
- Both power supply bays are at the rear, so all front panel space goes to slide-in modules and their fiber and copper cabling.
- -48 VDC or AC power
- Choose 100-240 VAC or -48 VDC supply modules, with 12 VDC output rated at 200 W to feed a fully loaded chassis.
- Hot failover supply
- One supply carries the whole chassis; a second IONPS-A-R1 or IONPS-D-R1 module provides redundancy with instant failover.
- SNMP with public MIBs
- The ION Management Module works with standard network management systems such as SNMPc and HPOV, plus web and CLI access.
How to choose the right ION219 Chassis part number

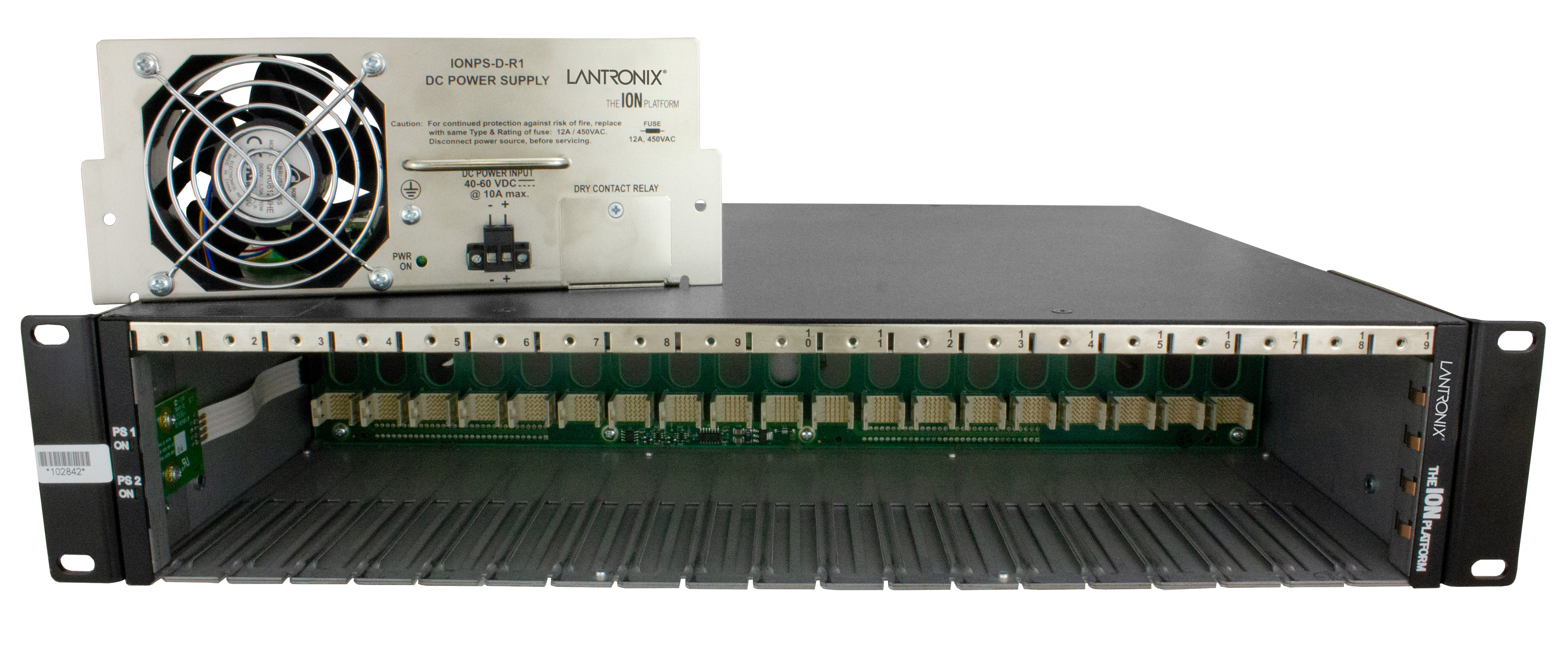

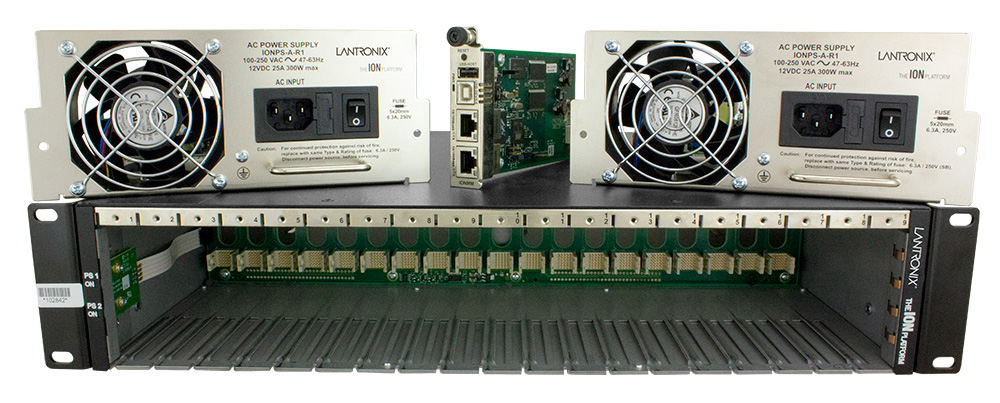

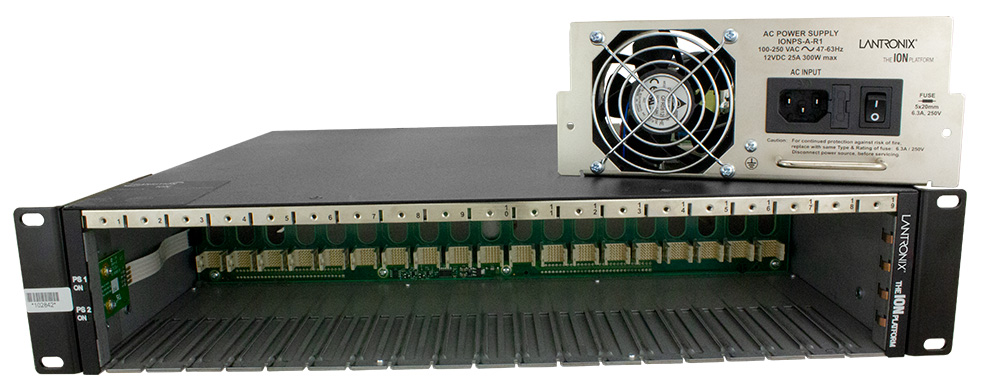

ION219-A includes one AC power supply and ION219-D one DC (-48 VDC) supply; neither includes management. ION219-AAMB is the fully equipped build with two AC supplies for redundancy and an ION Management Module. To add redundancy or management later, order IONPS-A-R1 (AC) or IONPS-D-R1 (-48 VDC) and an IONMM (USB Type B CLI port) or IONMM-232 (RS-232 RJ-45 CLI port). IONRE-23 rack ears and IONFP face plates for empty slots are also listed.
Configure & order
Find your ION219 Chassis part number
Every orderable ION219 Chassis configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
ION219-A
ION219-D
$1,495.00
Ships on backorder
ION219-AAMB
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the ION219 Chassis, organized by what it does — power, mounting & enclosures, modules & option cards— each with why you'd add it.
Power
2 items
IONPS-A-R1
IONPS-A-R1
Redundant AC power supply module for the 19-slot ION chassis. Up to two power supply modules can be used in the ION219-A chassis for instant fail-over mode.
$509.00
Ships on backorder
IONPS-D-R1
IONPS-D-R1
Redundant -48 VDC power supply module for the 19-slot ION chassis.
$715.00
Ships on backorder
Mounting & enclosures
2 items
IONFP
IONFP
ION front blank face plate that occupies one slot. It is listed as a Lantronix ION Face Plate and TAA Compliant.
$11.00
Ships on backorder

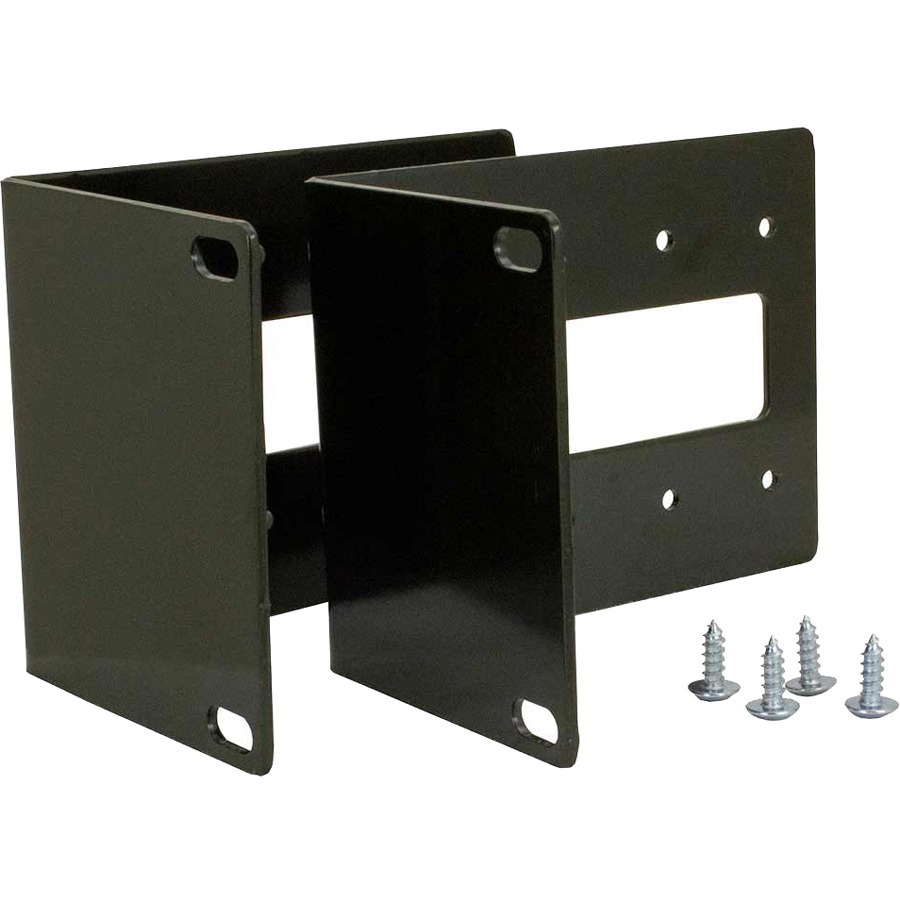

IONRE-23
IONRE-23
IONRE-23 provides ION 23-inch rack mount ears for network equipment.
$30.00
Ships on backorder
Modules & option cards
2 items
IONMM Series
IONMM-232
ION Management Module for the ION Chassis with an RS232 RJ-45 CLI port. It connects to the chassis backplane and carries only management traffic, not end-user data traffic.
$506.00
Ships on backorder
IONMM Series
IONMM
ION Management Module for the ION Chassis with a USB Type B CLI port. It enables remote configuration, monitoring and troubleshooting of ION slide-in modules.
$534.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the ION219 Chassis. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the ION219 Chassis is used
- Carrier central office fiber termination shelves
- Data center copper-to-fiber conversion at scale
- Campus core rooms with many building fiber links
- Enterprise networks needing securely managed fiber interface points
ION219 Chassis FAQ
How many media converter modules fit in the ION219?
The ION219 has nineteen front slots for ION slide-in modules. When you add management, the ION Management Module uses a single-slot design, so most of the chassis stays available for media converter and interface modules.
Does the ION219 support -48 VDC power?
Yes. The ION219-D includes a DC power supply, and the IONPS-D-R1 is a redundant -48 VDC power supply module for the 19-slot chassis. AC supplies accept 100-240 VAC.
What is the power consumption of the ION219 chassis?
Lantronix lists power consumption of up to 150 W. Each power supply module delivers 12 VDC rated at 200 W maximum, and supplies up to +12 VDC to each slot in the chassis.
What management access does the ION Management Module provide?
It provides web browser access, CLI via telnet or the local console port, and SNMP v1, v2c and v3 based on public MIBs, with two 10/100 Ethernet interfaces, TFTP module upgrades and exportable configuration files.
What is the difference between the ION219 and ION106?
The ION219 is the high-density option with nineteen slots, rear power bays and a 3.5-inch-high chassis. The ION106 holds six modules in a 1.75-inch-high chassis for smaller edge locations.
