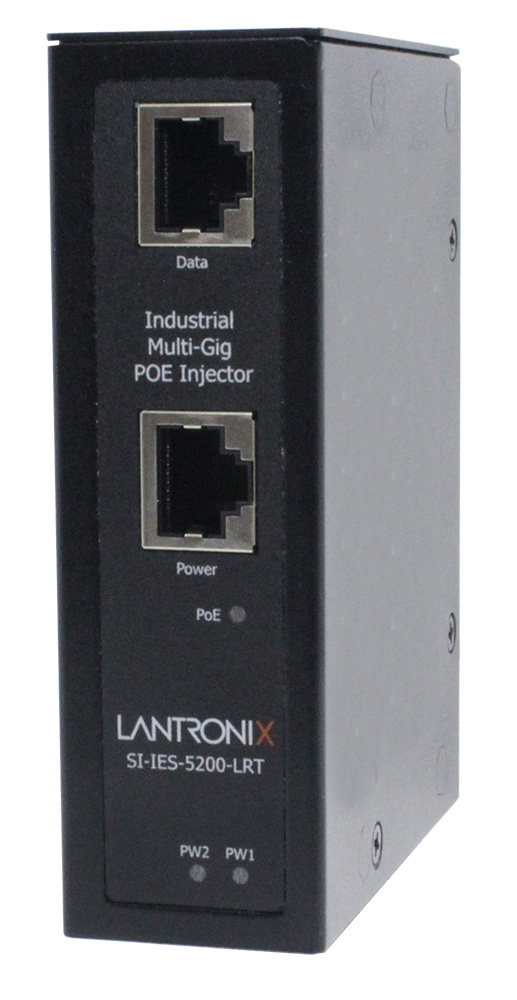

Lantronix SI-IES-5200-LRT Hardened Multi-Gig PoE++ Injector
The SI-IES-5200-LRT is an unmanaged, hardened PoE++ injector that adds up to 90 W to a multi-gig Ethernet link at speeds up to 10G, for outdoor and industrial sites where the switch cannot supply power.
From $175.00
Overview
About the Lantronix SI-IES-5200-LRT
The SI-IES-5200-LRT (also searched as SI-IES-5200) solves a specific gap: high-power, high-bandwidth devices such as Wi-Fi access points, multi-lens surveillance cameras and license plate readers installed where no PoE-capable switch or nearby power source exists. It sits inline on the cable, takes data in on one RJ-45 port and sends data plus up to 90 W of IEEE 802.3bt PoE++ out the other, and remains backward compatible with 802.3af and 802.3at devices.
Both ports run 10M, 100M, 1G, 2.5G, 5G or 10GBase-T with a non-blocking architecture, so the injector does not cap a multi-gig access point. Power enters on a 4-pin terminal block at 54-56 VDC with redundant inputs, reverse polarity protection and overload current protection. It draws 4 W without a load and 101.4 W at full PoE. The 32 mm-wide IP31 housing mounts on DIN rail, with wall-mount brackets included.
It is built for manufacturing floors and curbside traffic control cabinets, where electromagnetic interference and heavy electrical surges are common. Protection includes 2 kV surge immunity on both power and signal lines, IEC 61000-4 ESD, EFT and surge testing, shock, vibration and free-fall testing to EN 60068-2, and an operating range of -40°C to +75°C.
Key capabilities
- 90 W PoE++ output
- IEEE 802.3bt output up to 90 W powers multi-lens cameras, high-end access points and license plate readers from a single cable.
- Multi-gig up to 10G
- Data passes at 10M through 10GBase-T, including 2.5G and 5G under IEEE 802.3bz, with a non-blocking architecture.
- Rated -40°C to +75°C
- Certified for safe operation across -40°C to +75°C in an IP31 housing suited to street cabinets and plant-floor enclosures.
- Redundant DC input
- Dual 54-56 VDC inputs on a terminal block, with reverse polarity and overload current protection, keep the powered device running if one feed fails.
- Surge and EMI hardened
- 2 kV surge immunity on power and signal lines and IEC 61000-4 EMC testing address heavy electrical noise in industrial sites.
How to choose the right SI-IES-5200-LRT part number
SI-IES-5200-LRT is a single model with one data-in RJ-45 port and one PoE++ data-out RJ-45 port. The choices are in the power and enclosure accessories. The injector needs 54-56 VDC: the PS-DC-DUAL-5624T 345 W supply provides 56 VDC alongside 24 VDC, and the 25104 and 25105 are industrial DIN-rail supplies. For outdoor poles and roadside sites, the OCA-P181610 cabinet provides a vented enclosure with two DIN rails, terminal blocks and cable glands.
Configure & order
Find your SI-IES-5200-LRT part number
Every orderable SI-IES-5200-LRT configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SI-IES-5200-LRT, organized by what it does — power, mounting & enclosures— each with why you'd add it.
Power
3 items
25105
25105
Industrial DIN rail mounted power supply with 88-264 VAC and 124-370 VDC input ratings. It provides 48~55 VDC output at 2.5A and 120 Watts.
$291.50
4 in stock
25104
25104
Industrial DIN rail mounted power supply with 85-264 VAC or 124-370 VDC input and 48~55 VDC output. It delivers 5.0A and 240 Watts for Lantronix switch accessory deployments.
$495.00
1 in stock
PS-DC-DUAL-5624T
PS-DC-DUAL-5624T
Stand-alone hardened 345 Watt power supply with 56VDC and 24VDC dual output. It supports a compact Stand-Alone or DIN Rail form factor.
$860.20
Ships on backorder
Mounting & enclosures
1 item
OCA-P181610
OCA-P181610
18 x 16 x 10” polycarbonate outdoor cabinet assembly for Lantronix outdoor switches.
$948.75
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the SI-IES-5200-LRT. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SI-IES-5200-LRT is used
- Powering 10G Wi-Fi access points beyond the switch closet
- Multi-lens surveillance cameras on poles and building exteriors
- License plate readers in curbside traffic control cabinets
- Adding PoE++ to non-PoE switch ports on factory floors
SI-IES-5200-LRT datasheets & documentation
SI-IES-5200-LRT FAQ
How much power does the SI-IES-5200-LRT PoE++ injector deliver?
It delivers up to 90 W on its PoE++ port under IEEE 802.3bt and also supports 802.3af and 802.3at devices. At full PoE load the injector draws 101.4 W from its 56 VDC input.
Does the SI-IES-5200-LRT support 10 Gigabit Ethernet?
Yes. Both RJ-45 ports support 10M, 100M, 1G, 2.5G, 5G and 10GBase-T, with a non-blocking architecture, so the injector passes full multi-gig bandwidth to the powered device.
What power supply does the SI-IES-5200-LRT need?
It requires 54-56 VDC on a 4-pin terminal block with redundant inputs. Lantronix lists the PS-DC-DUAL-5624T, which has a 56 VDC output, and the 25104 and 25105 DIN-rail supplies as compatible accessories.
What is the operating temperature of the SI-IES-5200-LRT?
It operates from -40°C to +75°C and stores from -40°C to +85°C at 5% to 95% non-condensing humidity, in an IP31 housing that mounts on DIN rail or a wall.
