Lantronix SI-IES-5x1D-LRT Series Hardened PoE++ Injector/Converters
The SI-IES-5x1D-LRT Series are unmanaged, hardened PoE++ injector/media converters that take a 1G or 10G fiber uplink in an SFP+ slot and deliver 2.5G multi-gig data plus up to 90 W of 802.3bt power on one or two RJ-45 ports.
From $425.00
Overview
About the Lantronix SI-IES-5x1D-LRT Series
Outdoor Wi-Fi access points and high-power security cameras increasingly need both 2.5G bandwidth and more than 30 W of power, often at the end of a fiber run in a traffic cabinet or parking garage. The SI-IES-511D-LRT and SI-IES-521D-LRT (the SI-IES-5x1D-LRT family) solve that in one DIN-rail device: a fiber SFP+ uplink comes in, and one or two PoE++ copper ports go out to the powered devices, with no separate switch or injector required.
The SFP+ slot accepts 1G or 10G modules (1000Base-X or 10GBase-X), and each RJ-45 port runs at 10M, 100M, 1G or 2.5G under IEEE 802.3bz. PoE output follows 802.3af, at and bt, at up to 90 W per port: 90 W total on the 511D and 180 W on the 521D. The architecture is non-blocking store-and-forward with 10K-byte jumbo frames. DIP switches enable Remote PD Reset, which power-cycles an unresponsive device, and link fault pass-through.
Power input is 54-56 VDC on a 4-pin terminal block with redundant inputs, reverse-polarity and overload protection. The IP31 housing operates from -40 °C to +75 °C, carries MET certification to UL 121201 for Class 1 Division 2 hazardous locations, and ships with DIN-rail mounting and optional wall-mount brackets.
Key capabilities
- 90 W PoE++ per port
- IEEE 802.3bt output at up to 90 W per port powers high-draw access points and cameras, while remaining compatible with 802.3af and 802.3at devices.
- 2.5G multi-gig copper
- RJ-45 ports run 10M, 100M, 1G or 2.5G under IEEE 802.3bz, giving higher-bandwidth access points and cameras more than Gigabit throughput.
- 10G SFP+ fiber uplink
- The SFP+ slot accepts 1G or 10G modules, so the converter can extend security, transportation and telco links over fiber.
- Hardened for cabinets
- Rated -40 °C to +75 °C in an IP31 housing, with 2 kV surge immunity and shock, vibration and free-fall testing listed.
- Class 1 Division 2 certified
- MET certification to UL 121201 for Class 1 Division 2 hazardous locations, plus UL 62368-1 safety and CE/UKCA marking.
- Remote PD Reset
- A DIP switch enables Remote PD Reset to power-cycle a hung camera or access point, plus link fault pass-through for upstream alerting.
How to choose the right SI-IES-5x1D-LRT Series part number
The two models differ in PoE port count and total power. SI-IES-511D-LRT has one SFP+ slot and one 2.5G PoE++ port with a 90 W budget, for a single access point or camera. SI-IES-521D-LRT has one SFP+ slot and two 2.5G PoE++ ports, each delivering up to 90 W, for a 180 W total budget. Size the 54-56 VDC supply to the load: full PoE consumption is 220 W at 56 VDC. Lantronix lists the 25104 (240 W), 25105 (120 W) and PS-DC-DUAL-5624T (345 W) supplies as compatible.
Configure & order
Find your SI-IES-5x1D-LRT Series part number
Every orderable SI-IES-5x1D-LRT Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

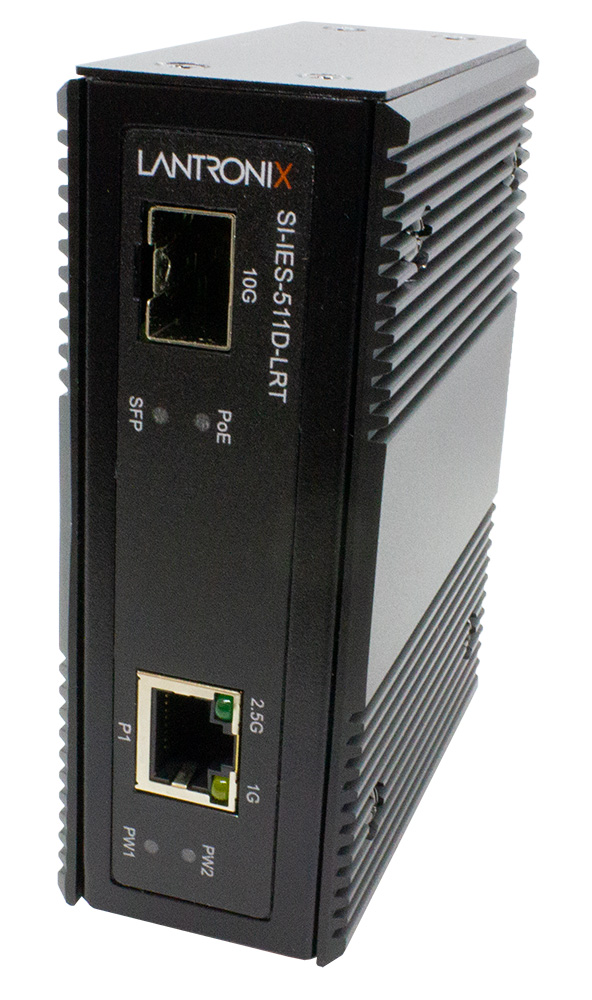

SI-IES-511D-LRT
$425.00
Ships on backorder

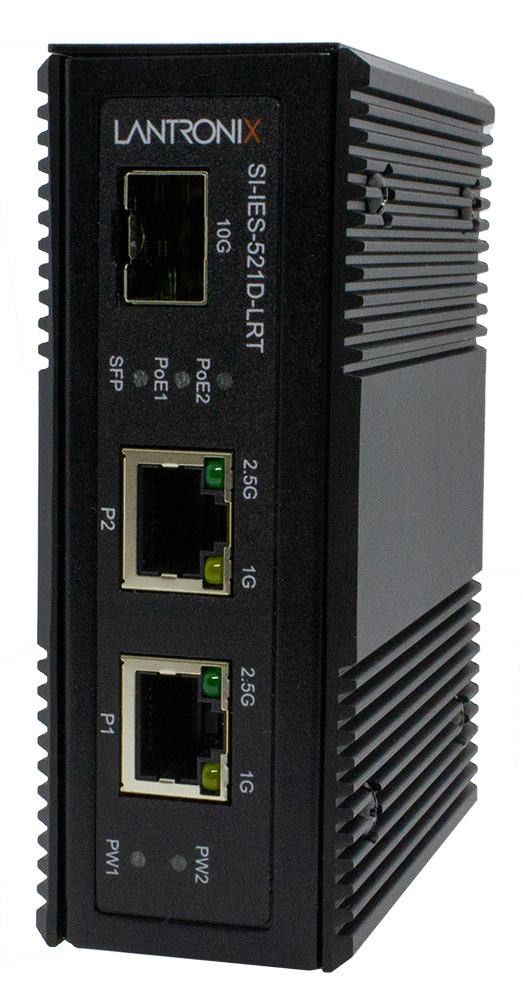

SI-IES-521D-LRT
$475.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SI-IES-5x1D-LRT Series, organized by what it does — power, mounting & enclosures— each with why you'd add it.
Power
3 items
25105
25105
Industrial DIN rail mounted power supply with 88-264 VAC and 124-370 VDC input ratings. It provides 48~55 VDC output at 2.5A and 120 Watts.
$291.50
4 in stock
25104
25104
Industrial DIN rail mounted power supply with 85-264 VAC or 124-370 VDC input and 48~55 VDC output. It delivers 5.0A and 240 Watts for Lantronix switch accessory deployments.
$495.00
1 in stock
PS-DC-DUAL-5624T
PS-DC-DUAL-5624T
Stand-alone hardened 345 Watt power supply with 56VDC and 24VDC dual output. It supports a compact Stand-Alone or DIN Rail form factor.
$860.20
Ships on backorder
Mounting & enclosures
1 item
OCA-P181610
OCA-P181610
18 x 16 x 10” polycarbonate outdoor cabinet assembly for Lantronix outdoor switches.
$948.75
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the SI-IES-5x1D-LRT Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SI-IES-5x1D-LRT Series is used
- Powering 90 W outdoor access points in traffic cabinets
- Fiber-fed PoE++ security cameras in parking garages
- Extending 2.5G camera links over 10G fiber
- Hazardous Class 1 Division 2 sites needing PoE++ devices
SI-IES-5x1D-LRT Series datasheets & documentation
SI-IES-5x1D-LRT Series FAQ
What is the difference between the SI-IES-511D-LRT and SI-IES-521D-LRT?
Both have a 1G/10G SFP+ uplink slot and 2.5G PoE++ ports at up to 90 W each. The SI-IES-511D-LRT has one PoE++ port and a 90 W budget; the SI-IES-521D-LRT has two PoE++ ports and a 180 W total budget.
Which SFP modules work in the SI-IES-5x1D-LRT SFP+ slot?
The slot supports 1000Base-X (1G) SFP and 10GBase-X (10G) SFP+ modules, per IEEE 802.3z and 802.3ae. Lantronix lists its SFP modules as compatible accessories; choose one that matches the fiber type and distance of your uplink.
What power supply does the SI-IES-5x1D-LRT need?
It requires 54-56 VDC through a 4-pin terminal block with redundant inputs. Consumption is 5 W without PoE and 220 W at full PoE load. Compatible supplies include the 25104 (48-55 VDC, 240 W), 25105 (120 W) and PS-DC-DUAL-5624T (345 W).
Is the SI-IES-5x1D-LRT managed?
No. It is an unmanaged injector/converter. Remote PD Reset and link pass-through are set with DIP switches, and it auto-negotiates speed and duplex with auto-MDI/MDIX on the copper ports.
What temperature and environments is the SI-IES-5x1D-LRT rated for?
It operates from -40 °C to +75 °C at 5% to 95% non-condensing humidity, in an IP31 housing. It is MET certified to UL 121201 for Class 1 Division 2 hazardous locations and suits outdoor traffic cabinets and parking garages.
