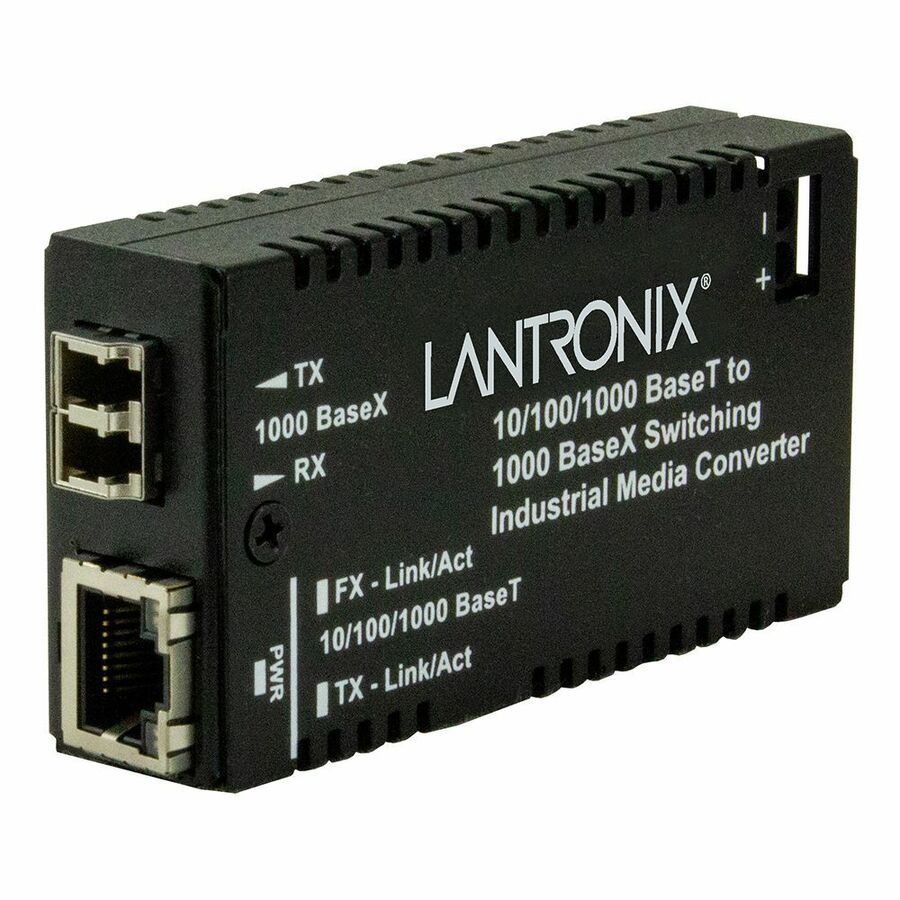

Lantronix M/GE-ISW-LC-01 — M/GE-ISW Series Multimode LC Media Converter
$490.00
Ships from and sold by A5 IT
Free 2-3 Day Shipping within the United StatesArrives by Thursday, Oct 29
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T (RJ-45) to 1000Base-SX multimode LC conversion
- 220 m/722 ft. reach on 62.5/125 um multimode fiber and 550 m/1804 ft. reach on 50/125 um multimode fiber
- 8.0 dB link budget
- 10240 bytes Jumbo Frame support
- 12 – 48 VDC or 24 – 36VAC input via 2-pin terminal block
- DIN Rail clip and Velcro included; wall mount bracket sold separately
- -40°C to +75°C operating temperature range
Lantronix M/GE-ISW-LC-01 is a hardened mini Gigabit Ethernet media converter in the M/GE-ISW Series. It converts 10/100/1000Base-T (RJ-45) copper to 1000Base-SX multimode LC fiber. This SKU supports 220 m/722 ft. over 62.5/125 um multimode fiber and 550 m/1804 ft. over 50/125 um multimode fiber, with an 8.0 dB link budget. Series features include Auto-Negotiation, Fixed Full-Duplex on Fiber, Auto-MDI/MDIX on copper port, Active Link Pass Through, and Jumbo Frame support up to 10240Bytes. Industrial installation details include -40°C to +75°C operation, IP20 ingress protection, 1.2 Watts power consumption, and 12 – 48 VDC or 24 – 36VAC input through a 2-pin terminal block.
Ideal For
- Extending 10/100/1000Base-T RJ-45 links over 1000Base-SX multimode fiber
- Adding fiber optic cabling to hardened or outdoor 10/100/1000 UTP environments
- Installations that require -40°C to +75°C operating temperature range
- Mini media converter deployments using DIN Rail clip or Velcro mounting
Specifications
| MTBF | Greater than 41,680 hours (MIL-HDBK-217F); Greater than 114,580 hours (Bellcore7 V5.0) |
| Series | M/GE-ISW Series |
| Weight | 0.40 lbs. [0.18 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing |
| Warranty | Lifetime |
| Data Rate | 10/100/1000Mbps |
| Power LED | (below RJ-45) ON = Lit for normal operation |
| Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3x |
| Dimensions | 1.8” [46 mm] x 3.3” [85 mm] x 0.85” [22 mm] |
| Fiber Mode | Multimode |
| Fiber Reach | 62.5/125 um: 220 m/722 ft.; 50/125 um: 550 m/1804 ft |
| Link Budget | 8.0 dB |
| Power Input | 2-pin terminal block |
| Certifications | FCC Class A, CISPR22/EN55022 Class A, EN55034, CE Mark |
| Max Frame Size | 10240 bytes |
| Fiber Connector | LC |
| Fiber Interface | 1000Base-SX |
| Copper Interface | 10/100/1000Base-T (RJ-45) |
| Mounting Included | DIN Rail clip and Velcro included |
| Power Consumption | 1.2 Watts |
| Power Input Range | 12 – 48 VDC or 24 – 36VAC |
| Ingress Protection | IP20 |
| Wall Mount Bracket | Sold separately |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | -40°C to +75°C |
| Fiber Link Activity LED | (Upper Left on RJ-45) On = link; Flashing = Activity |
| Copper Link Activity LED | (Upper Right on RJ-45) On = link; Flashing = Activity |
Frequently Asked Questions
What does the M/GE-ISW-LC-01 convert?▾
It converts 10/100/1000Base-T (RJ-45) to 1000Base-SX multimode LC fiber.
What fiber distances does this SKU support?▾
It supports 220 m/722 ft. over 62.5/125 um multimode fiber and 550 m/1804 ft. over 50/125 um multimode fiber.
What power input does it accept?▾
The unit accepts 12 – 48 VDC or 24 – 36VAC through a 2-pin terminal block. External power supplies are sold separately.
What mounting hardware is included?▾
A DIN Rail clip and Velcro are included. The wall mount bracket is sold separately.
