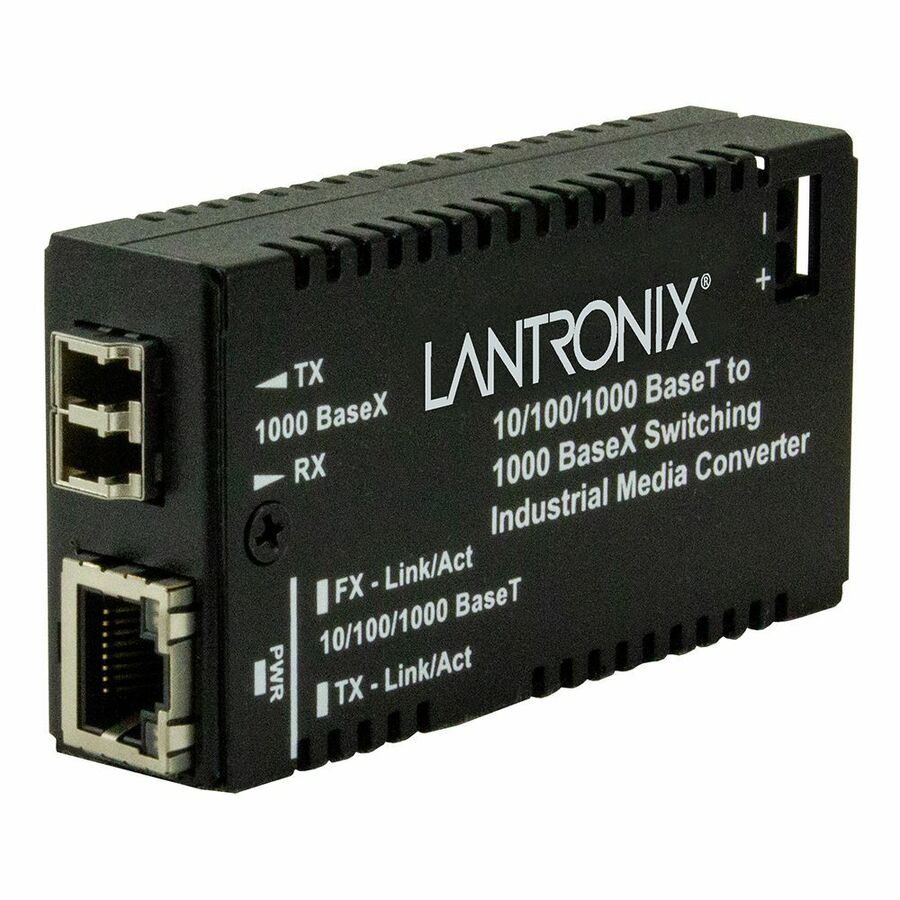

Lantronix M/GE-ISW-LX-01 — M/GE-ISW Series 1000Base-LX Media Converter
$373.39$556.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Thursday, Oct 15
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T (RJ-45) to 1000Base-LX single mode SC media conversion
- 10 km/6.2 mi. fiber reach with 10.5 dB link budget
- 10/100/1000Mbps data rate
- Jumbo Frame up to 10240Bytes
- Auto-Negotiation and Auto-MDI/MDIX on copper port
- Fixed Full-Duplex on Fiber with Active Link Pass Through
- 12 – 48 VDC or 24 – 36VAC input via 2-pin terminal block
Lantronix M/GE-ISW-LX-01 is a hardened Mini Gigabit Ethernet media converter in the M/GE-ISW Series. It converts 10/100/1000Base-T (RJ-45) to 1000Base-LX single mode SC fiber for [10 km/6.2 mi.] links, with a 10.5 dB link budget. The M/GE-ISW Series supports Auto-Negotiation, Fixed Full-Duplex on Fiber, Auto-MDI/MDIX on the copper port, Active Link Pass Through, and Jumbo Frame up to 10240Bytes. Unit and port LEDs provide quick status information. Power is supplied through a 2-pin terminal block, with support for 12 – 48 VDC or 24 – 36VAC. The unit includes a barrel connector pig-tail cable, DIN Rail clip, and Velcro; a wall mount bracket is sold separately.
Ideal For
- Converting 10/100/1000Base-T copper links to 1000Base-LX single mode SC fiber
- Extending Gigabit Ethernet links up to [10 km/6.2 mi.] over single mode fiber
- Adding fiber conversion where DIN Rail clip or Velcro mounting is required
- Deploying media conversion in environments rated for -40°C to +75°C operation
Specifications
| MTBF | Greater than 41,680 hours (MIL-HDBK-217F); Greater than 114,580 hours (Bellcore7 V5.0) |
| Depth | 3.3” [85 mm] |
| Width | 1.8” [46 mm] |
| Height | 0.85” [22 mm] |
| Series | M/GE-ISW Series |
| Weight | 0.40 lbs. [0.18 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing |
| Warranty | Lifetime |
| Data Rate | 10/100/1000Mbps |
| Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3x |
| Link Budget | 10.5 dB |
| Power Input | 12 – 48 VDC or 24 – 36VAC (External power supplies sold separately) |
| Pwr Power LED | (below RJ-45) ON = Lit for normal operation |
| Certifications | FCC Class A, CISPR22/EN55022 Class A, EN55034, CE Mark |
| Fiber Distance | [10 km/6.2 mi.] |
| Max Frame Size | 10240 bytes |
| Fiber Interface | 1000Base-LX, single mode SC |
| Copper Interface | 10/100/1000Base-T (RJ-45) |
| Power Consumption | 1.2 Watts |
| Ingress Protection | IP20 |
| Storage Temperature | -40°C to +85°C |
| Fx-link Act Fiber LED | (Upper Left on RJ-45) On = link; Flashing = Activity |
| Operating Temperature | -40°C to +75°C |
| Power Input Connector | 2-pin terminal block |
| Tx-link Act Copper LED | (Upper Right on RJ-45) On = link; Flashing = Activity |
Frequently Asked Questions
What copper-to-fiber conversion does this SKU provide?▾
M/GE-ISW-LX-01 converts 10/100/1000Base-T (RJ-45) to 1000Base-LX single mode SC fiber, with [10 km/6.2 mi.] reach and a 10.5 dB link budget.
What mounting options are included?▾
The M/GE-ISW Series includes a DIN Rail clip and Velcro. A wall mount bracket is sold separately.
What power input does it accept?▾
It uses a 2-pin terminal block and accepts 12 – 48 VDC or 24 – 36VAC. External power supplies are sold separately.
Does it support jumbo frames?▾
Yes. The M/GE-ISW Series supports Jumbo Frame up to 10240Bytes.
