Lantronix M/GE-ISW-SFP-01 — M/GE-ISW Series Media Converter Open SFP Slot
$284.80$424.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Monday, Oct 19
New, with full manufacturer warranty
Key Features
- Media conversion: 10/100/1000Base-T (RJ-45) to 100/1000Base-X Open SFP Slot
- Data rate: 10/100/1000Mbps
- Jumbo frames: up to 10240Bytes
- Operating temperature: -40°C to +75°C
- Power input: 12 – 48 VDC or 24 – 36VAC via 2-pin terminal block
- Mounting: DIN Rail clip and Velcro included; wall mount bracket sold separately
- Protection: Overload Current Protection and Reverse Polarity Protection

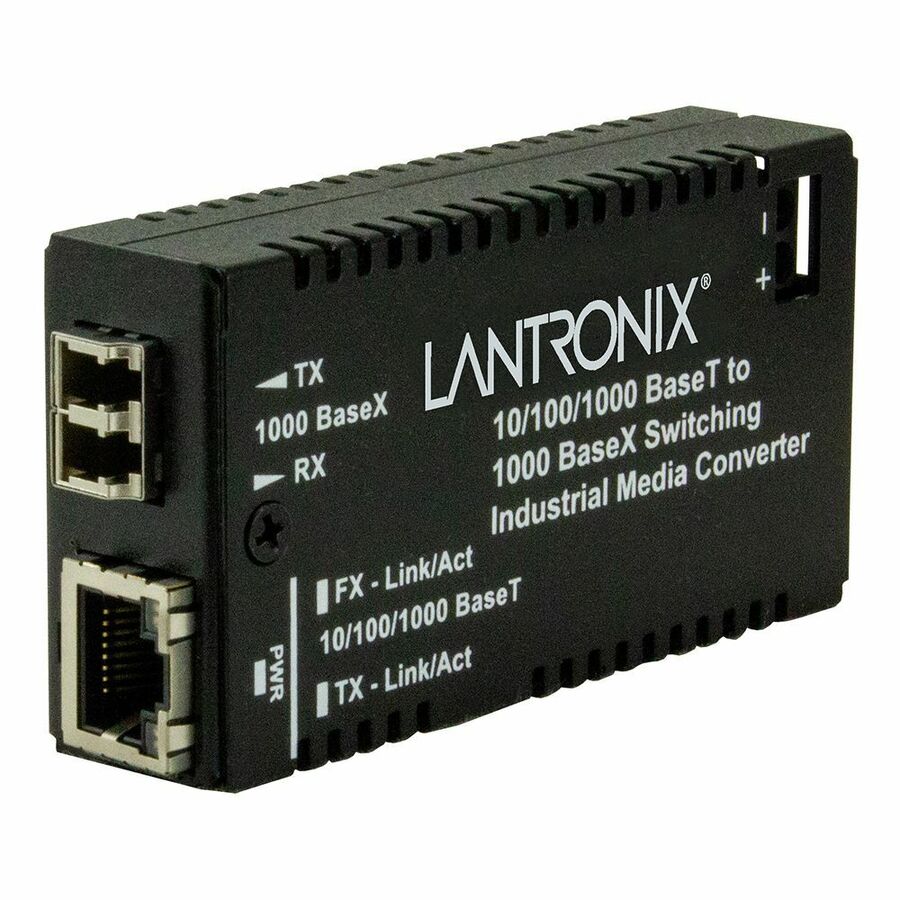

Lantronix M/GE-ISW-SFP-01 is a hardened mini Gigabit Ethernet media converter in the M/GE-ISW Series. It converts 10/100/1000Base-T over RJ-45 to a 100/1000Base-X Open SFP Slot. The series supports Auto-Negotiation, Fixed Full-Duplex on Fiber, Auto-MDI/MDIX on the copper port, Active Link Pass Through, and jumbo frames up to 10240Bytes. Unit and port LEDs provide quick status information. M/GE-ISW-SFP-01 accepts 12 – 48 VDC or 24 – 36VAC through a 2-pin terminal block. DIN Rail clip and Velcro are included, with a wall mount bracket sold separately.
Ideal For
- Integrating fiber optic cabling into hardened or outdoor 10/100/1000 UTP environments
- Converting 10/100/1000Base-T copper links to 100/1000Base-X through an Open SFP Slot
- Installing a mini media converter on DIN Rail where the included DIN Rail clip is required
- Monitoring copper link, fiber link, activity, and power status from unit and port LEDs
Specifications
| MTBF | Greater than 41,680 hours (MIL-HDBK-217F); Greater than 114,580 hours (Bellcore7 V5.0) |
| Weight | 0.40 lbs. [0.18 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing |
| Data Rate | 10/100/1000Mbps |
| Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3x |
| Conversion | 10/100/1000Base-T (RJ-45) to 100/1000Base-X Open SFP Slot |
| Dimensions | 1.8” [46 mm] x 3.3” [85 mm] x 0.85” [22 mm] |
| Power Input | 2-pin terminal block Unit accepts 12 – 48 VDC or 24 – 36VAC (External power supplies sold separately) |
| Pwr Power LED | (below RJ-45) ON = Lit for normal operation |
| Max Frame Size | 10240 bytes |
| Power Consumption | 1.2 Watts |
| Ingress Protection | IP20 |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | -40°C to +75°C |
| Fx-link Act Fiber Link Activity LED | (Upper Left on RJ-45) On = link; Flashing = Activity |
| Tx-link Act Copper Link Activity LED | (Upper Right on RJ-45) On = link; Flashing = Activity |
Frequently Asked Questions
What media does M/GE-ISW-SFP-01 convert?▾
It converts 10/100/1000Base-T (RJ-45) to a 100/1000Base-X Open SFP Slot.
What power input does it accept?▾
The M/GE-ISW Series supports DC and AC input power via terminal block. This unit accepts 12 – 48 VDC or 24 – 36VAC through a 2-pin terminal block.
What mounting options are included?▾
DIN Rail clip and Velcro are included. The wall mount bracket is sold separately.
What operating temperature range is specified?▾
The listed operating temperature range is -40°C to +75°C.
