Lantronix M/GE-T-SX-01-EU — M/GE-T Series Mini Media Converter
$225.82$336.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-T to 1000Base-SX conversion from RJ-45 copper to 850nm multimode SC fiber
- 1000 Mbps data rate for Gigabit Ethernet media conversion
- 220 m/722 ft. reach on 62.5/125 µm multimode fiber and 550 m/1804 ft. on 50/125 µm multimode fiber
- Auto-Negotiation and Auto-MDI/MDIX for copper-side link setup
- Fiber Link Pass Through and Automatic Link Restoration for link-state handling
- Status LEDs for power, fiber link/activity and copper link/activity

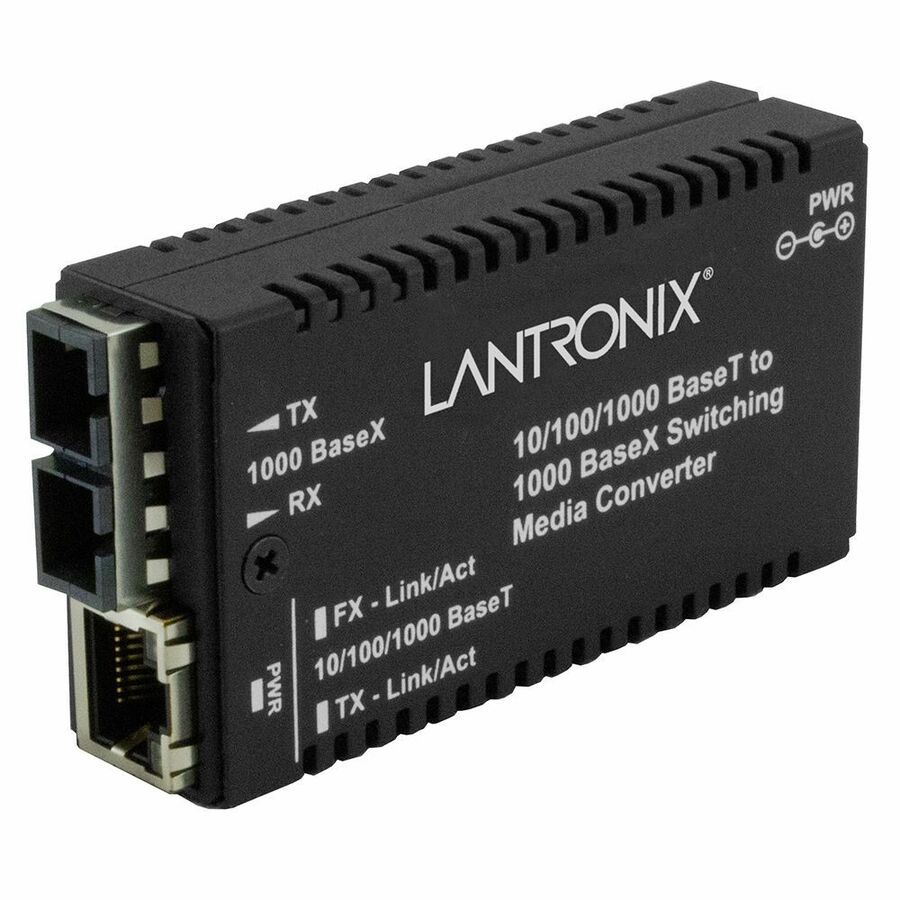

Lantronix M/GE-T-SX-01-EU belongs to the M/GE-T Series of Mini Gigabit Ethernet Media Converters. It converts 1000Base-T RJ-45 copper to 1000Base-SX 850nm multimode fiber with an SC interface. This EU power-supply configuration lists 100m/328 ft. on the copper side, 220 m/722 ft. on 62.5/125 µm multimode fiber and 550 m/1804 ft. on 50/125 µm multimode fiber. The listed link budget is 7.0 dB. The series lists Auto-Negotiation, Auto-MDI/MDIX, Automatic Link Restoration, Fiber Link Pass Through, Low-Latency Design and Jumbo Frames up to 13312bytes. Status LEDs report power, fiber link/activity and copper link/activity. The unit measures 1.8” [46 mm] x 3.3” [85 mm] x 0.85″ [22 mm] and operates from 0°C to 50°C. The series lists an external AC/DC supply requirement of +12VDC, 0.5A.
Ideal For
- Extending a Gigabit Ethernet copper connection onto 1000Base-SX multimode fiber
- Adding fiber optic cabling into copper-rich Gigabit Ethernet environments on a port-by-port basis
- Fiber-to-the-desk deployments using SC multimode cabling
- Connecting 1000Base-T and 1000Base-SX NICs or switch ports
Specifications
| Weight | 2 lbs. [0.90 kg] |
| Pwr LED | On = Power |
| Sc Port | 1 x SC |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 1000 Mbps |
| Standards | IEEE 802.3z; IEEE 802.3ab |
| Conversion | 1000Base-T (RJ-45) [100m/328 ft.] to 1000Base-SX 850nm multimode (SC) |
| Dimensions | 1.8” [46 mm] x 3.3” [85 mm] x 0.85″ [22 mm] |
| Link Budget | 7.0 dB |
| Power Input | 7.5VDC to 13.9VDC |
| Network Port | 1 x Network (RJ-45) |
| Power Supply | External AC/DC required; +12VDC, 0.5A |
| Certifications | Safety: Wall Mount Power Supply, UL Listed, cUL Listed (Canada), FCC Class A, CISPR22 / EN55022 Class A, EN55024, CE Mark |
| Fx-link Act LED | On = link, Flashing = Activity |
| Tx-link Act LED | On = link, Flashing = Activity |
| Power Consumption | 2.6 Watts |
| Storage Temperature | -15°C to 65°C |
| Operating Temperature | 0°C to 50°C |
| 50 125 µM Fiber Distance | 550 m/1804 ft |
| 625 125 µM Fiber Distance | 220 m/722 ft |
Frequently Asked Questions
What does M/GE-T-SX-01-EU convert?▾
It converts 1000Base-T RJ-45 copper to 1000Base-SX 850nm multimode fiber with an SC interface.
What distances are listed for this media converter?▾
The SKU lists 100m/328 ft. on the RJ-45 side, 220 m/722 ft. on 62.5/125 µm fiber and 550 m/1804 ft. on 50/125 µm fiber.
Which Ethernet standards does it support?▾
The listed standards are IEEE 802.3z and IEEE 802.3ab.
What status LEDs are available?▾
Status LEDs indicate PWR, FX-Link/Act for fiber link/activity and TX-Link/Act for copper link/activity.
