Lantronix M/GE-T-SX-01-UK — M/GE-T Series 1000Base-T to 1000Base-SX Media Converter
$225.82$336.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-T RJ-45 to 1000Base-SX 850nm multimode SC fiber conversion
- 220 m/722 ft. over 62.5/125 µm fiber and 550 m/1804 ft. over 50/125 µm fiber
- 1000 Mbps data rate with IEEE 802.3z and IEEE 802.3ab standards
- Auto-Negotiation, Auto-MDI/MDIX and Automatic Link Restoration
- Fiber Link Pass Through and status LEDs for power, fiber link/activity and copper link/activity
- United Kingdom Power Supply configuration with external AC/DC +12VDC, 0.5A

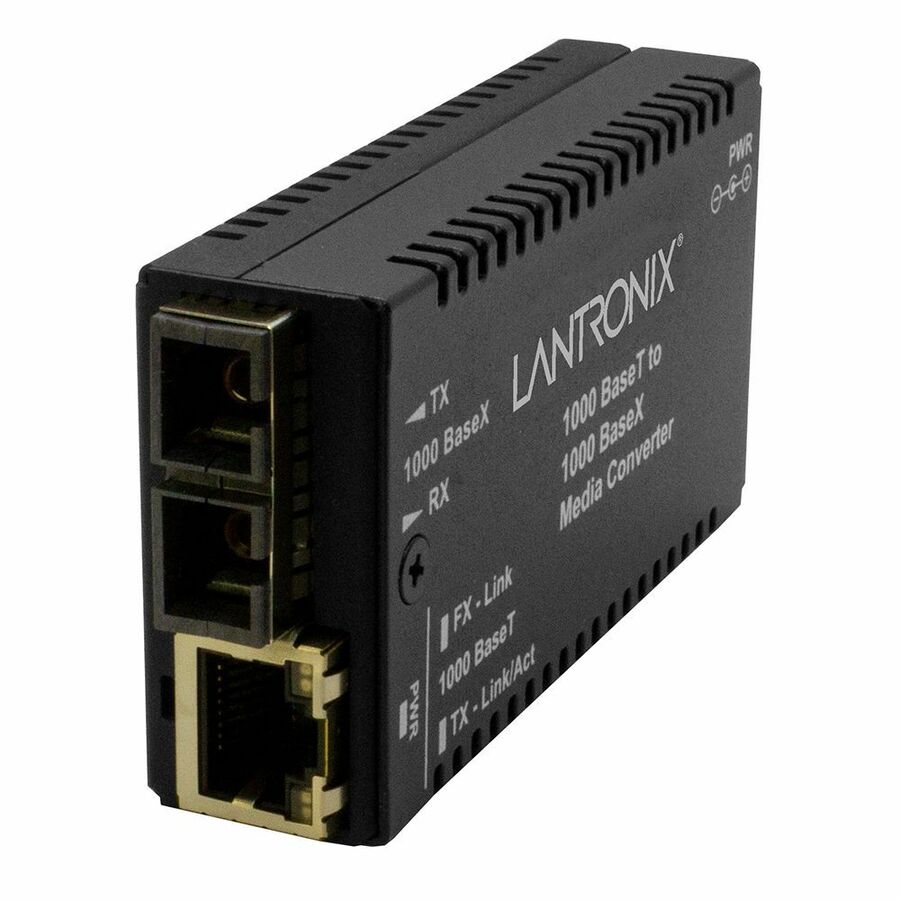

The Lantronix M/GE-T-SX-01-UK is an M/GE-T Series Mini Gigabit Ethernet Media Converter for 1000Base-T to 1000Base-SX links. This SKU converts 1000Base-T (RJ-45) copper at 100m/328 ft. to 1000Base-SX 850nm multimode fiber through an SC connection. The listed fiber reach is 220 m/722 ft. on 62.5/125 µm fiber and 550 m/1804 ft. on 50/125 µm fiber, with a 7.0 dB link budget. The series supports 1000 Mbps data rate, Auto-Negotiation, Auto-MDI/MDIX, Automatic Link Restoration, Fiber Link Pass Through and Jumbo Frames up to 13312bytes. Status LEDs show power, fiber link/activity and copper link/activity. This is the United Kingdom Power Supply configuration.
Ideal For
- Extending a Gigabit Ethernet link from 1000Base-T RJ-45 copper to 1000Base-SX multimode SC fiber
- Connecting 1000Base-T NICs or switch ports to 1000Base-SX multimode fiber runs
- Fiber-to-the-desk deployments using an M/GE-T Series mini media converter
- Monitoring power, fiber link/activity and copper link/activity at the converter
Specifications
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 1000 Mbps |
| Standards | IEEE 802.3z; IEEE 802.3ab |
| Dimensions | 1.8” [46 mm] x 3.3” [85 mm] x 0.85″ [22 mm] |
| Fiber Mode | Multi-mode |
| Form Factor | Standalone; Rack-mountable; DIN Rail Mountable; Wall Mountable |
| Link Budget | 7.0 dB |
| Power Input | 7.5VDC to 13.9VDC |
| Jumbo Frames | Up to 13312bytes |
| Power Supply | External AC/DC required; +12VDC, 0.5A |
| Certifications | Safety: Wall Mount Power Supply, UL Listed, cUL Listed (Canada), FCC Class A, CISPR22 / EN55022 Class A, EN55024, CE Mark |
| Copper Distance | 100m/328 ft |
| Fiber Interface | 1000Base-SX 850nm multimode (SC) |
| Copper Interface | 1000Base-T (RJ-45) |
| Power Consumption | 2.6 Watts |
| MTBF Unit Bellcore | Greater than 687,500 Hours |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -15°C to 65°C |
| Operating Temperature | 0°C to 50°C |
| MTBF Unit Mil-hdbk-217f | Greater than 250,000 Hours |
| Fiber Distance 50 125 µM | 550 m/1804 ft |
| Fiber Distance 625 125 µM | 220 m/722 ft |
| MTBF With Power Supply Bellcore | Greater than 114,580 Hours |
| MTBF With Power Supply Mil-hdbk-217f | Greater than 41,660 Hours |
Frequently Asked Questions
What network connection does M/GE-T-SX-01-UK convert?▾
It converts 1000Base-T RJ-45 copper to 1000Base-SX 850nm multimode fiber using an SC fiber connection.
What fiber distances does this SKU support?▾
The part row lists 220 m/722 ft. over 62.5/125 µm fiber and 550 m/1804 ft. over 50/125 µm fiber.
What power supply configuration is listed for this SKU?▾
This is the United Kingdom Power Supply configuration. The series specifications list an external AC/DC power supply required at +12VDC, 0.5A, with 7.5VDC to 13.9VDC power input.
What mounting options are listed?▾
The distributor data lists standalone, wall mountable, DIN rail mountable and rack-mountable form factors.
