Lantronix M/GE-T-SX-01-OZ — 1000Base-T to 1000Base-SX SC Media Converter Australia Power
$225.82$336.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-T (RJ-45) to 1000Base-SX 850nm multimode (SC) conversion
- 100m/328 ft. copper reach on 1000Base-T (RJ-45)
- 220 m/722 ft. over 62.5/125 µm fiber and 550 m/1804 ft. over 50/125 µm fiber
- 1000 Mbps data rate
- Auto-Negotiation and Auto-MDI/MDIX
- Fiber Link Pass Through and Automatic Link Restoration
- Status LEDs for power, fiber link/activity and copper link/activity

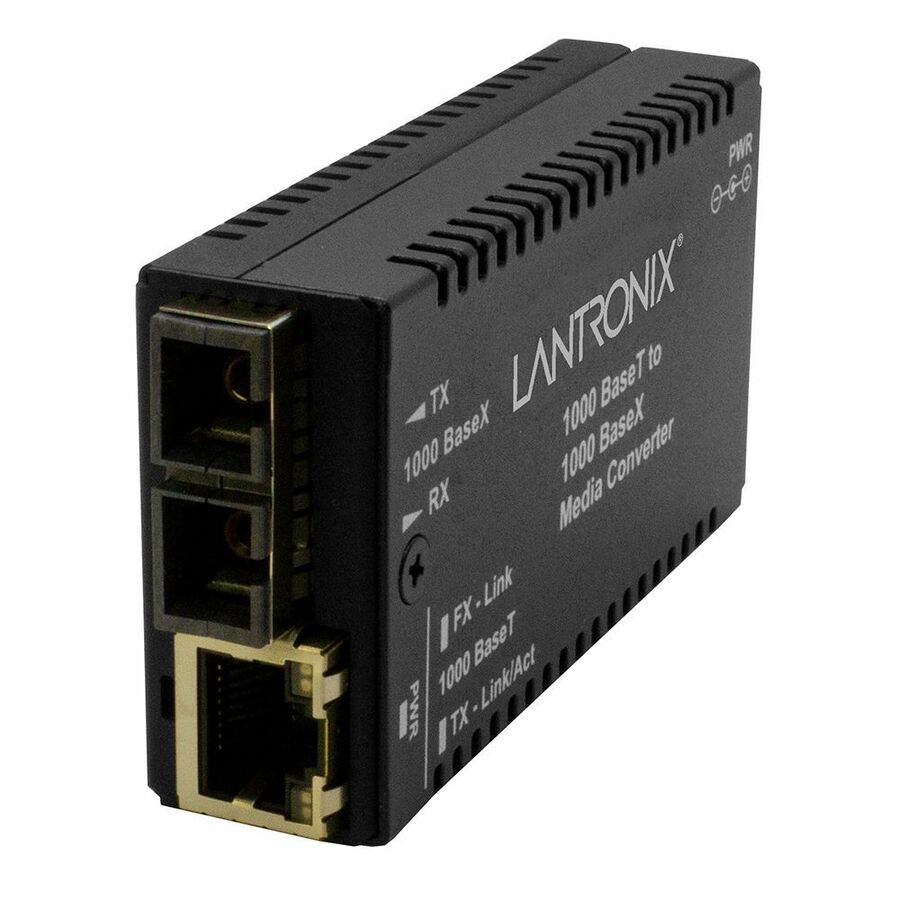

The Lantronix M/GE-T-SX-01-OZ is an M/GE-T Series mini Gigabit Ethernet media converter for 1000Base-T (RJ-45) to 1000Base-SX 850nm multimode (SC) connections. The SKU is specified with an Australia Power Supply and a 7.0 dB link budget. It supports 100m/328 ft. on the copper side, 220 m/722 ft. over 62.5/125 µm fiber and 550 m/1804 ft. over 50/125 µm fiber. The M/GE-T Series lists a 1000 Mbps data rate and IEEE 802.3z and IEEE 802.3ab standards. Lantronix lists Auto-Negotiation, Auto-MDI/MDIX, Automatic Link Restoration, Fiber Link Pass Through, low-latency design and jumbo frames up to 13312bytes. Status LEDs report power, fiber link/activity and copper link/activity.
Ideal For
- Extending Gigabit Ethernet from 1000Base-T copper to 1000Base-SX multimode fiber
- Connecting 1000Base-T switch ports to 1000Base-SX/LX NICs or switch ports
- Fiber-to-the-desk applications using multimode SC fiber
- Standalone, wall, DIN rail or rack-mounted media conversion
Specifications
| Series | M/GE-T Series |
| Weight | 2 lbs. [0.90 kg] |
| Pwr LED | On = Power |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Mounting | Wall Mountable; DIN Rail Mountable; Rack-mountable |
| Warranty | Lifetime |
| Data Rate | 1000 Mbps |
| Standards | IEEE 802.3z; IEEE 802.3ab |
| Dimensions | 1.8” [46 mm] x 3.3” [85 mm] x 0.85″ [22 mm] |
| Fiber Port | 1 x SC Ports |
| Form Factor | Standalone |
| Link Budget | 7.0 dB |
| Power Input | 7.5VDC to 13.9VDC |
| Network Port | 1 x Network (RJ-45) |
| Power Supply | External AC/DC required; +12VDC, 0.5A |
| Certifications | Safety: Wall Mount Power Supply, UL Listed, cUL Listed (Canada), FCC Class A, CISPR22 / EN55022 Class A, EN55024, CE Mark |
| TAA Compliance | TAA Compliant |
| Copper Distance | 100m/328 ft |
| Fiber Interface | 1000Base-SX 850nm multimode (SC) |
| Fx-link Act LED | On = link, Flashing = Activity |
| Tx-link Act LED | On = link, Flashing = Activity |
| Copper Interface | 1000Base-T (RJ-45) |
| Power Consumption | 2.6 Watts |
| Storage Temperature | -15°C to 65°C |
| Fiber Mode Supported | Multi-mode |
| Operating Temperature | 0°C to 50°C |
| Fiber Distance 50 125 µM | 550 m/1804 ft |
| Fiber Distance 625 125 µM | 220 m/722 ft |
Frequently Asked Questions
What network media does this converter support?▾
It converts 1000Base-T (RJ-45) to 1000Base-SX 850nm multimode (SC).
What fiber distances are supported?▾
It supports 220 m/722 ft. over 62.5/125 µm fiber and 550 m/1804 ft. over 50/125 µm fiber.
What power supply is specified for this SKU?▾
The part description specifies an Australia Power Supply. The series specifications list an external AC/DC supply required at +12VDC, 0.5A.
How can this media converter be mounted?▾
The input lists standalone, wall mountable, DIN rail mountable and rack-mountable form factors.
