Lantronix M/GE-T-SX-01-JP — M/GE-T Series 1000Base-SX Media Converter
$226.06$336.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-T RJ-45 copper to 1000Base-SX 850nm multimode SC fiber conversion
- 220 m/722 ft. reach on 62.5/125 µm fiber
- 550 m/1804 ft. reach on 50/125 µm fiber
- 1000 Mbps data rate
- Auto-Negotiation and Auto-MDI/MDIX
- Fiber Link Pass Through and Automatic Link Restoration
- Status LEDs for power, fiber link/activity, and copper link/activity

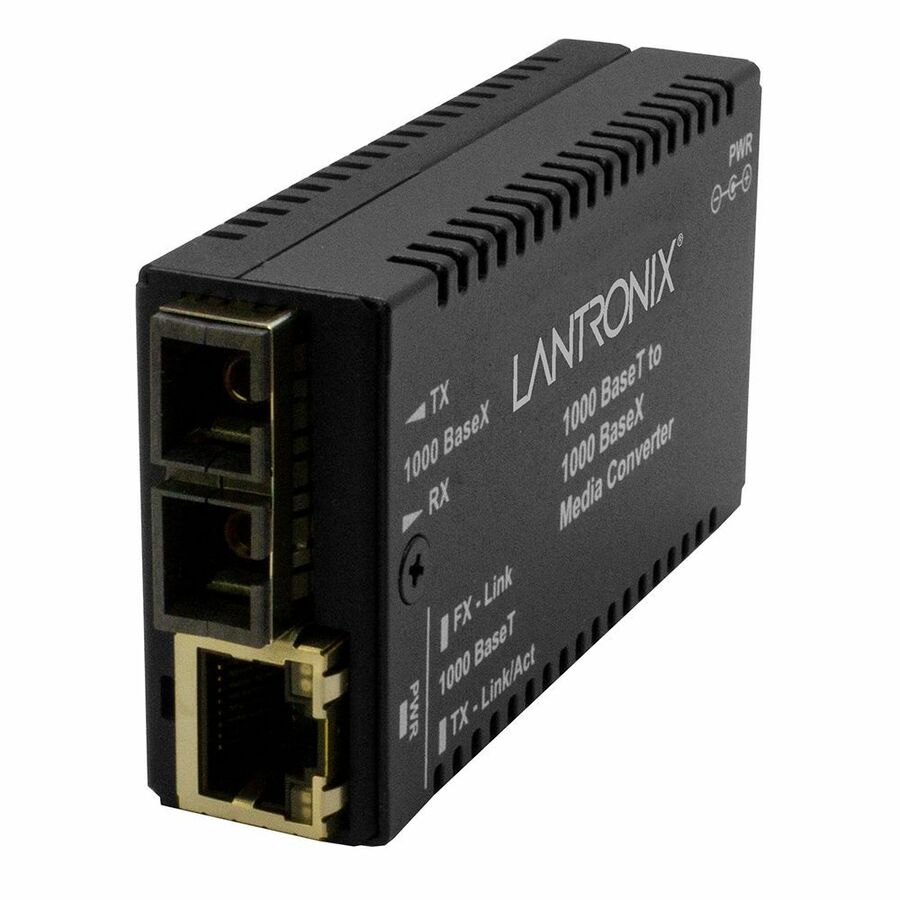

Lantronix M/GE-T-SX-01-JP is a Mini Gigabit Ethernet Media Converter for 1000Base-T to 1000Base-SX. This SKU uses an RJ-45 copper interface and an 850nm multimode SC fiber interface, with the Japan Power Supply configuration identified in the Lantronix part row. The converter supports 1000 Mbps operation, IEEE 802.3z, and IEEE 802.3ab. Fiber reach is 220 m/722 ft. on 62.5/125 µm fiber and 550 m/1804 ft. on 50/125 µm fiber, with a 7.0 dB link budget. M/GE-T Series features include Auto-Negotiation, Auto-MDI/MDIX, Automatic Link Restoration, Fiber Link Pass Through, Low-Latency Design, and Jumbo Frames up to 13312bytes. Status LEDs show power, fiber link/activity, and copper link/activity.
Ideal For
- Extending Gigabit Ethernet over multimode fiber
- Connecting 1000Base-T RJ-45 equipment to 1000Base-SX SC fiber cabling
- Fiber-to-the-desk applications using 62.5/125 µm or 50/125 µm multimode fiber
- Deploying a mini standalone Gigabit Ethernet media converter with Japan Power Supply
Specifications
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 1000 Mbps |
| Standards | IEEE 802.3z; IEEE 802.3ab |
| Dimensions | 1.8” [46 mm] x 3.3” [85 mm] x 0.85″ [22 mm] |
| Fiber Port | 1 x SC |
| Link Budget | 7.0 dB |
| Power Input | 7.5VDC to 13.9VDC |
| Network Port | 1 x Network (RJ-45) |
| Power Supply | External AC/DC required; +12VDC, 0.5A |
| Fiber Distance | 62.5/125 µm fiber: 220 m/722 ft.; 50/125 µm fiber: 550 m/1804 ft |
| Copper Distance | 100m/328 ft |
| Fiber Interface | 1000Base-SX 850nm multimode (SC) |
| Copper Interface | 1000Base-T (RJ-45) |
| Power Consumption | 2.6 Watts |
| Storage Temperature | -15°C to 65°C |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What network media does this converter connect?▾
It converts 1000Base-T RJ-45 copper to 1000Base-SX 850nm multimode SC fiber.
What fiber distance does M/GE-T-SX-01-JP support?▾
The SKU supports 220 m/722 ft. on 62.5/125 µm fiber and 550 m/1804 ft. on 50/125 µm fiber.
Is this the Japan Power Supply version?▾
Yes. The Lantronix part row identifies M/GE-T-SX-01-JP as the Japan Power Supply configuration.
Which link and management features are supported?▾
The M/GE-T Series supports Auto-Negotiation, Auto-MDI/MDIX, Automatic Link Restoration, Fiber Link Pass Through, status LEDs, and Jumbo Frames up to 13312bytes.
