Lantronix ION106 Series 6-Slot Media Converter Chassis
The ION106 is a 6-slot, 1.75-inch-high chassis for ION slide-in media converter and network interface modules, sized for network edge closets and smaller fiber aggregation points that still need central management.
From $688.00
Overview
About the Lantronix ION106 Series
The ION106 (also written ION 106) holds up to six ION slide-in modules, the Lantronix platform for converting between fiber and copper RJ-45 equipment across Ethernet and TDM networks. It suits sites that need more than one or two converters but not a full-size shelf: a building entrance, a campus edge, a customer premises or a small central office position. Modules in one ION chassis can pair with modules in another ION chassis or with Lantronix stand-alone converters for an end-to-end fiber link.
Two front bays accept ION 6-slot power supply modules for 100-240 VAC or -21 to -72 VDC and +21 to +72 VDC. One supply powers the chassis and all modules, delivering up to +12 VDC to each slot; a second supply adds instant failover. The chassis draws 10 W, measures 17 x 10 x 1.75 inches and operates from 0°C to 50°C at up to 10,000 ft.
Adding an ION Management Module enables remote configuration, monitoring and troubleshooting of every slide-in card over web, telnet CLI or SNMP using public MIBs. Security options include management VLAN, SSL, SSH, IEEE 802.1X and SNMPv3, and TFTP handles module firmware upgrades and configuration backups from a central point.
Key capabilities
- Compact 6-slot capacity
- Six front slots for ION modules in a 17 by 10 inch chassis just 1.75 inches high, for edge racks with limited space.
- Wide DC input option
- DC power modules accept both -21 to -72 VDC and +21 to +72 VDC, covering telecom negative-rail and positive-rail plant.
- Redundant power with failover
- One supply runs the fully loaded chassis; installing a second IONPS6-A or IONPS6-D provides instant failover if the first fails.
- Optional central management
- An IONMM management module adds web, CLI and SNMP control of every slide-in card, with SSH, SSL, 802.1X and management VLAN security.
- Low 10 W draw
- The chassis itself consumes 10 W, and Lantronix lists MTBF above 687,500 hours (Bellcore) for the chassis without power supplies.
How to choose the right ION106 Series part number
Choose by power and management. ION106-A includes one AC supply and ION106-D one DC supply, both unmanaged until you add an IONMM. ION106-AAB adds a second AC supply for redundancy. ION106-AAMB is the complete build: two AC supplies plus an ION Management Module. Upgrade later with IONPS6-A (100-240 VAC) or IONPS6-D (+/-21 to 72 VDC) redundant supplies, IONMM (USB CLI port) or IONMM-232 (RS-232 RJ-45 CLI port) management modules, IONRE6-23 23-inch rack ears and IONFP blank face plates.
Configure & order
Find your ION106 Series part number
Every orderable ION106 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

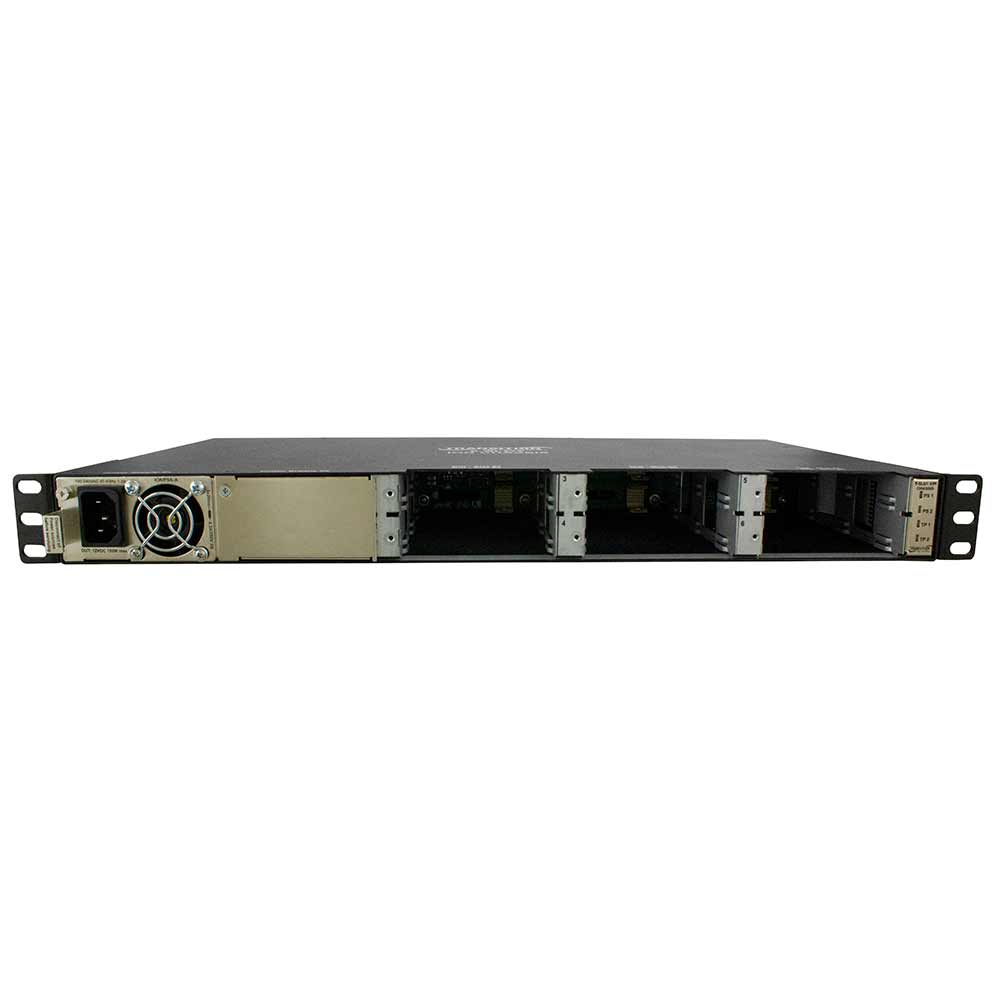

ION106-A
$688.00
Ships on backorder
ION106-D
$891.00
Ships on backorder

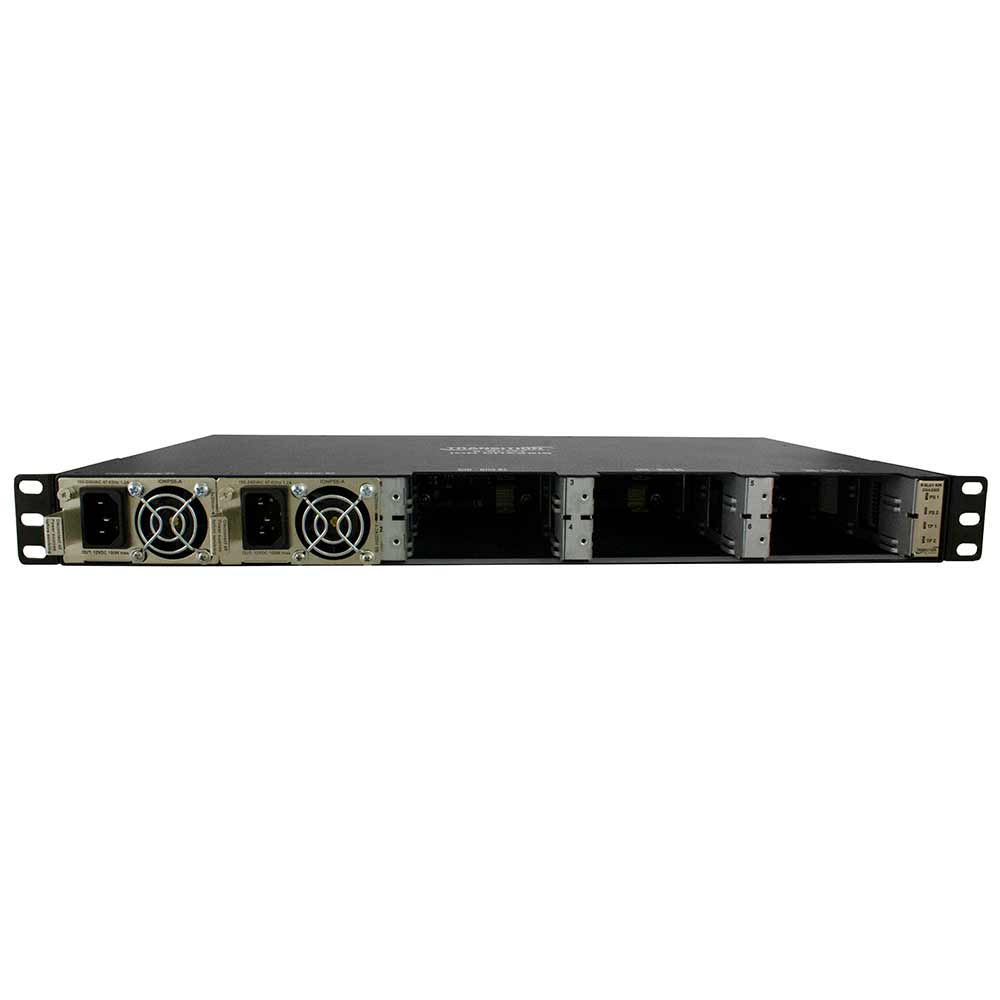

ION106-AAB
ION106-AAMB
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the ION106 Series, organized by what it does — power, mounting & enclosures, modules & option cards— each with why you'd add it.
Power
2 items
IONPS6-D
IONPS6-D
Redundant DC power supply module for the ION106 6-Slot Chassis. It supports -21 to -72 VDC and +21 to +72 VDC input.
$594.00
Ships on backorder
IONPS6-A
IONPS6-A
Redundant AC power supply module for the ION106 6-Slot Chassis with 100 to 240 VAC input. A second AC or DC power supply enables instant fail-over operation in the chassis.
Mounting & enclosures
2 items
IONFP
IONFP
ION front blank face plate that occupies one slot. It is listed as a Lantronix ION Face Plate and TAA Compliant.
$11.00
Ships on backorder
IONRE6-23
IONRE6-23
23″ rack mount ear kit for the ION 6-Slot Chassis. It is a rack-mountable, TAA-compliant chassis accessory.
$30.00
Ships on backorder
Modules & option cards
2 items
IONMM Series
IONMM-232
ION Management Module for the ION Chassis with an RS232 RJ-45 CLI port. It connects to the chassis backplane and carries only management traffic, not end-user data traffic.
$506.00
Ships on backorder
IONMM Series
IONMM
ION Management Module for the ION Chassis with a USB Type B CLI port. It enables remote configuration, monitoring and troubleshooting of ION slide-in modules.
$534.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the ION106 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the ION106 Series is used
- Copper-to-fiber conversion at building entrances and campus edges
- Telco and service provider customer-premises fiber demarcation
- Small central office or data center fiber integration points
- Remotely managed media conversion over SNMP
ION106 Series datasheets & documentation
ION106 Series FAQ
Do I need a management module in the ION106 chassis?
No, modules work without it, but Lantronix states an ION Management Module is required to use all chassis features. It connects to the backplane and lets you configure, monitor and troubleshoot each slide-in module remotely.
What power options does the ION106 support?
Two bays accept ION 6-slot power supply modules: AC for 100-240 VAC, or DC for -21 to -72 VDC and +21 to +72 VDC. One supply powers the full chassis and all modules; a second provides redundancy with instant failover.
What is the difference between the ION106 and the ION219?
The ION106 holds six slide-in modules in a 1.75-inch-high chassis that draws 10 W. The ION219 holds nineteen modules in a 3.5-inch-high chassis for higher-density central office and data center installations.
What are the ION106 dimensions and operating temperature?
The chassis is 17 inches wide, 10 inches deep and 1.75 inches high and weighs 10 lbs (4.5 kg). It operates from 0°C to 50°C at 5% to 95% non-condensing humidity and stores from -40°C to 85°C.
Can the ION106 be mounted in a 23-inch rack?
Yes. The IONRE6-23 accessory provides 23-inch rack mount ears for the ION 6-slot chassis, whose standard width is 17 inches. Unused module slots can be covered with IONFP face plates.
