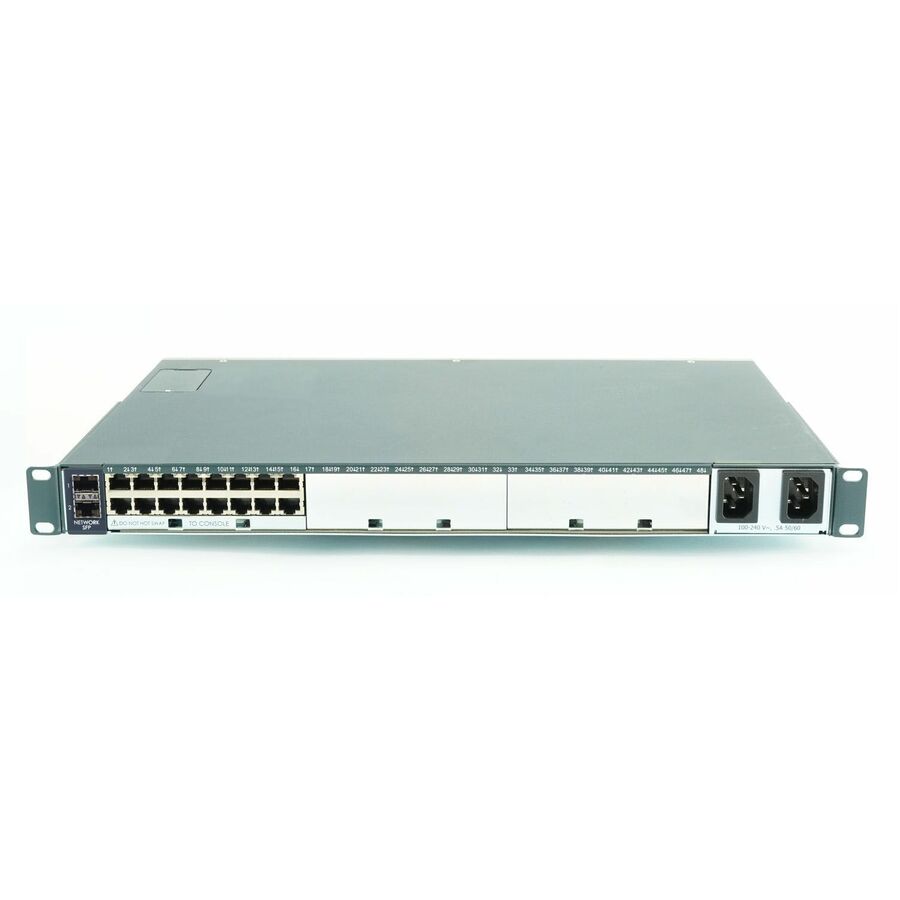

Lantronix SLC80162211G — SLC 8000 16-Port RJ-45 Console Manager
$2,559.97$3,260.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 16 RJ-45 serial ports provide the SLC 8000 16 Port Models configuration
- Dual 10/100/1000 Base-T RJ-45 Ethernet and dual 1 Gb fiber SFP ports support in-band access with bonding and IP filtering
- AC-Dual Supply configuration accepts 100-240 VAC, 50 to 60 Hz
- HTML5 based Java-free web based telnet/SSH remote access works through a browser independent interface
- FIPS 140-2 compliant cryptography is listed with Certificate #2398
- Remote authentication supports LDAP, RADIUS, Kerberos, TACACS+, Active Directory, NIS
- Percepxion for Networking compatibility supports centralized and automated monitoring management software
- Resilience – Align your infrastructure growth plans for cost-effective scalability and flexibility with swappable I/O modules for RJ45 and USB console, and Ethernet.
Lantronix SLC80162211G is a US-only SLC 8000 advanced console manager configured as RJ45 16-Port, AC-Dual Supply, SFP, and TAA. It belongs to the SLC 8000 16 Port Models group. Lantronix SLC 8000 is an advanced modular console manager that provides secure access to IT equipment with RS-232 and USB console, and/or Ethernet. As part of Lantronix Remote Environment Management out-of-band solution, it supports secure access during unscheduled network downtime. Administrators can access device ports through Telnet/SSH, Telnet/SSH/RAW-TCP direct to IP address and port number, or HTML5 based Java-free web based telnet/SSH remote access. Security features include SSH v2, TLS v1.0 through TLS v1.3, packet filtering, per port user permissions, remote authentication, and FIPS 140-2 compliant cryptography. The SLC 8000 is compatible with Lantronix Percepxion central management software. Percepxion for Networking provides visibility and control and drives software-defined automation across all locations.
Ideal For
- Remote Environment Management out-of-band access for data centers and remote environments
- Console access to switches, routers, servers, PDUs, UPSs and IoT environment assets
- Troubleshooting through Telnet/SSH, RAW-TCP direct access, HTML5 based Java-free web based telnet/SSH remote access
- Centralized monitoring and management with Lantronix Percepxion for Networking
Specifications
| USB | USB 2.0 High Speed, Full Speed, Low Speed |
| Weight | 11.1 lbs. maximum, depending on option |
| Console | RS-232 (RJ-45), 300 to 230400 bps |
| Storage | -20 to 80⁰ C (-4 to 176⁰ F), 10 to 90%RH, non-condensing |
| Mounting | Front-mid-rear mounting brackets |
| Operating | 0 to 50⁰ C (32 to 122⁰ F), 30 to 90%RH, non-condensing |
| SFP+ Ports | Dual 1 Gb fiber SFP |
| Device Type | Console Server |
| Form Factor | Rack-mountable |
| Device Ports | RJ-45 16-Port |
| Sd Card Slot | SD and SDHC |
| Serial Ports | 16 x Serial Port |
| AC Model Input | 100-240 VAC, 50 to 60 Hz |
| Ethernet Ports | Dual 10/100/1000 Base-T RJ-45 Ethernet |
| Heat Flow Rate | 68 BTU per hour |
| TAA Compliance | TAA Compliant |
| Shipping Weight | 15.1 lbs. maximum, depending on option |
| Limited Warranty | 3 Year |
| Operating System | Embedded Linux |
| FIPS Cryptography | FIPS 140-2 compliant cryptography (Certificate #2398) |
| Power Consumption | Less than 30W |
| Dimensions L X W X H | 30.5 x 44.4 x 4.4 cm (12 x 17.48 x 1.75 in), 1U |
| Remote Authentication | LDAP, RADIUS, Kerberos, TACACS+, Active Directory, NIS |
| Power Supply Configuration | AC-Dual Supply |
Frequently Asked Questions
Is SLC80162211G a 16-port SLC 8000 model?▾
Yes. The Lantronix part-table row places SLC80162211G in the 16 Port Models group and describes it as RJ45 16-Port.
What network interfaces does this configuration include?▾
The listed network interfaces are dual 10/100/1000 Base-T RJ45 Ethernet and dual 1 Gb fiber SFP.
Does the SLC 8000 work with Percepxion for Networking?▾
Yes. The SLC 8000 is compatible with Lantronix Percepxion central management software, and the series copy describes Percepxion for Networking as centralized and automated monitoring management software.
What power input does the AC model use?▾
This AC-Dual Supply configuration uses the AC model input specification: 100-240 VAC, 50 to 60 Hz.
