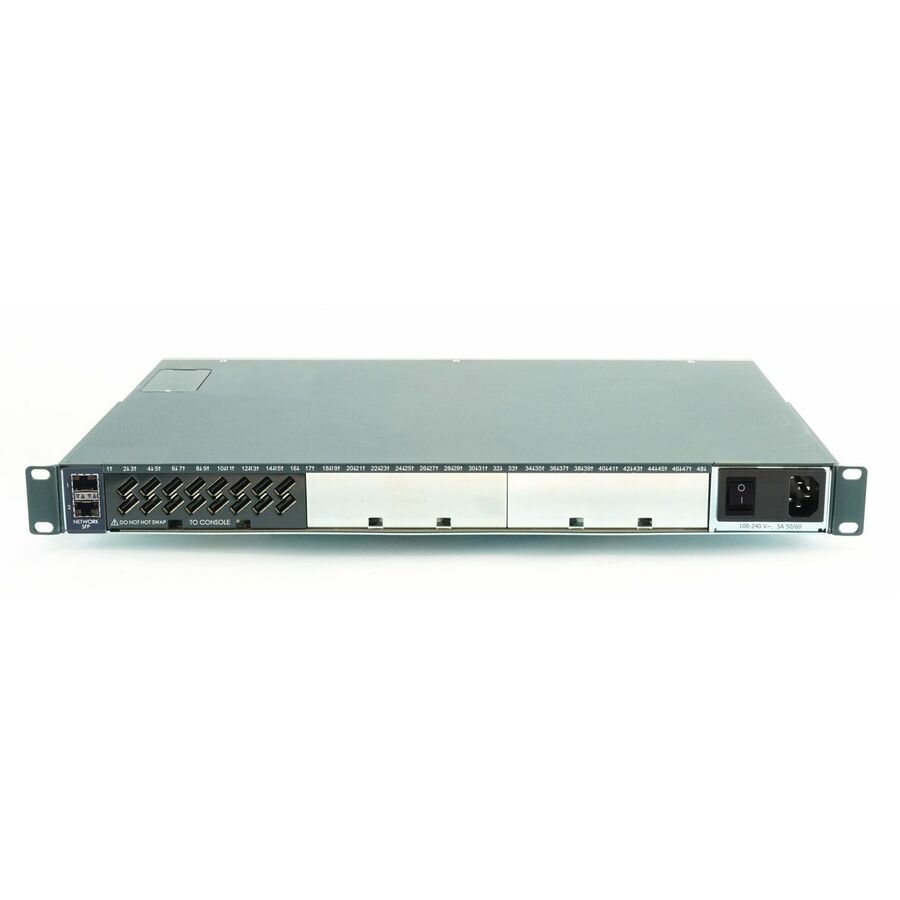

Lantronix SLC81161211S — SLC 8000 16-Port USB Console Manager
$2,605.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 16 Ports USB configuration for USB console access
- Single AC Supply configuration with 100-240 VAC, 50 to 60 Hz input
- Dual 10/100/1000 Base-T RJ-45 Ethernet for in-band network access
- Dual 1 Gb fiber SFP interfaces with bonding and IP filtering
- HTML5 Java-free web based Telnet/SSH remote access
- Percepxion compatibility for centralized management software
- FIPS 140-2 compliant cryptography with Certificate #2398
- Resilience – Align your infrastructure growth plans for cost-effective scalability and flexibility with swappable I/O modules for RJ45 and USB console, and Ethernet.
Lantronix SLC 8000 is an advanced modular console manager that provides secure access to IT equipment with RS-232 and USB console, and/or Ethernet. This SKU is the 16 Ports USB, Single AC Supply, SFP configuration.
Ideal For
- Secure remote access to IT equipment with USB console
- Out-of-band management for data centers and remote environments during unscheduled network downtime
- Centralized monitoring and management with Lantronix Percepxion central management software
- Remote management of network, server and power infrastructure
Specifications
| USB | USB 2.0 High Speed, Full Speed, Low Speed |
| Weight | 11.1 lbs. maximum, depending on option |
| Console | RS-232 (RJ-45), 300 to 230400 bps |
| Network | Dual 10/100/1000 Base-T RJ-45 Ethernet |
| Storage | -20 to 80⁰ C (-4 to 176⁰ F), 10 to 90%RH, non-condensing |
| Mounting | Front-mid-rear mounting brackets |
| Fiber SFP+ | Dual 1 Gb fiber SFP |
| Operating | 0 to 50⁰ C (32 to 122⁰ F), 30 to 90%RH, non-condensing |
| Dimensions | 30.5 x 44.4 x 4.4 cm (12 x 17.48 x 1.75 in), 1U |
| Cryptography | FIPS 140-2 compliant cryptography (Certificate #2398) |
| Device Ports | 16 Ports USB |
| Power Supply | Single AC Supply |
| Sd Card Slot | SD and SDHC |
| Secure Shell | SSH v2, Public Key |
| Certification | FCC Part 15, CE (EN55022, EN55024, EN60950), CSA, VCCI, UL/CUL, C-Tick, CB Scheme,NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197,IPv6 Ready, FIPS 140-2 |
| AC Model Input | 100-240 VAC, 50 to 60 Hz |
| Heat Flow Rate | 68 BTU per hour |
| Port Buffering | 256 KB per port |
| Shipping Weight | 15.1 lbs. maximum, depending on option |
| Concurrent Users | Maximum of 352 concurrent users and maximum 15 users per device port at 9600 baudrate (typical) |
| Operating System | Embedded Linux |
| Power Consumption | Less than 30W |
| Secure Sockets Layer | TLS v1.0, TLS v1.1, TLS v1.2, TLS v1.3 |
| Remote Authentication | LDAP, RADIUS, Kerberos, TACACS+, Active Directory, NIS |
Documentation
Frequently Asked Questions
What is the configuration of SLC81161211S?▾
SLC81161211S is an SLC 8000 Advanced Console Manager with 16 Ports USB, Single AC Supply, and SFP.
What network interfaces does the SLC 8000 provide?▾
The SLC 8000 network interfaces are Dual 10/100/1000 Base-T RJ45 Ethernet and Dual 1 Gb fiber SFP.
Is this model compatible with Percepxion?▾
Yes. The SLC 8000 is compatible with the Lantronix Percepxion central management software.
Which remote authentication methods are supported?▾
Remote authentication support includes LDAP, RADIUS, Kerberos, TACACS+, Active Directory, and NIS.
