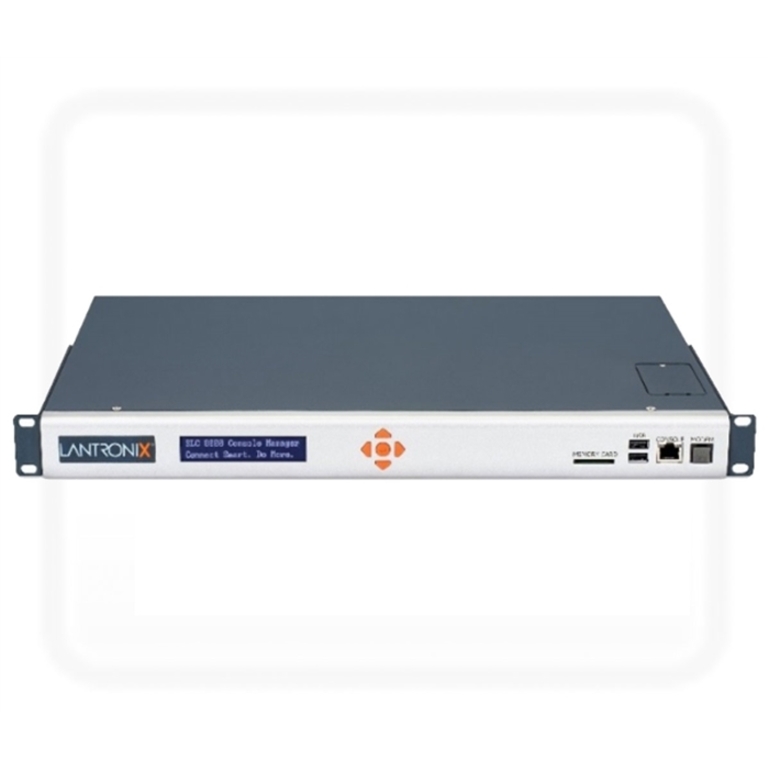

Lantronix SLC81322201S — SLC 8000 32-Port USB Console Manager
$3,179.61$4,050.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 32 USB ports for console connectivity
- Dual 10/100/1000 Base-T RJ-45 Ethernet and dual 1 Gb fiber SFP network interfaces
- Dual AC supply with 100-240 VAC, 50 to 60 Hz input
- HTML5 based Java-free web based telnet/SSH remote access
- FIPS 140-2 compliant cryptography (Certificate #2398), SSH v2 and TLS v1.0 through TLS v1.3
- Port logging to local files, syslog, USB thumb drive, SD card and NFS share
- Percepxion compatibility for centralized and automated monitoring management software
- Resilience – Align your infrastructure growth plans for cost-effective scalability and flexibility with swappable I/O modules for RJ45 and USB console, and Ethernet.
Lantronix SLC 8000 SLC81322201S is an Advanced Console Manager in a USB 32-Port, AC-Dual Supply configuration. It provides secure access to IT equipment with USB console and Ethernet while minimizing deployment headaches and time. This model lists dual 10/100/1000 Base-T RJ45 Ethernet, dual 1 Gb fiber SFP, USB 2.0 High Speed, Full Speed and Low Speed support, and an SD/SDHC card slot. The 1U rack-mountable chassis uses front-mid-rear mounting brackets. The SLC 8000 supports browser independent HTML5 support for Java-free web based telnet/SSH remote access, SSH v2, TLS v1.0 through TLS v1.3, packet filtering, per port user permissions and remote authentication through LDAP, RADIUS, Kerberos, TACACS+, Active Directory and NIS. As part of Lantronix Remote Environment Management out-of-band, the SLC 8000 helps administrators monitor, manage and troubleshoot IT equipment from anywhere. It is compatible with Percepxion for Networking, a centralized and automated monitoring management software.
Ideal For
- Remote Environment Management out-of-band for data centers and remote environments
- Remote monitoring, management and troubleshooting of IT equipment from anywhere at any time over the Internet
- Quality and test engineering workflows with up to 15 concurrent connections per port at 9600 baudrate (typical)
- Centralized monitoring and management with Lantronix Percepxion
Specifications
| USB | USB 2.0 High Speed, Full Speed, Low Speed |
| Fiber | Dual 1 Gb fiber SFP |
| Weight | 11.1 lbs. maximum, depending on option |
| Network | Dual 10/100/1000 Base-T RJ-45 Ethernet |
| Dimensions | 30.5 x 44.4 x 4.4 cm (12 x 17.48 x 1.75 in), 1U |
| Device Type | Console Server |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Device Ports | 32 x USB |
| Sd Card Slot | SD and SDHC |
| Certification | FCC Part 15, CE (EN55022, EN55024, EN60950), CSA, VCCI, UL/CUL, C-Tick, CB Scheme,NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197,IPv6 Ready, FIPS 140-2 |
| AC Model Input | 100-240 VAC, 50 to 60 Hz |
| Heat Flow Rate | 68 BTU per hour |
| Expansion Slots | 2 Total Expansion Slot(s) |
| Shipping Weight | 15.1 lbs. maximum, depending on option |
| Power Consumption | Less than 30W |
| Storage Environment | -20 to 80⁰ C (-4 to 176⁰ F), 10 to 90%RH, non-condensing |
| Operating Environment | 0 to 50⁰ C (32 to 122⁰ F), 30 to 90%RH, non-condensing |
| Remote Authentication | LDAP, RADIUS, Kerberos, TACACS+, Active Directory, NIS |
Frequently Asked Questions
What is the SLC81322201S configuration?▾
SLC81322201S is the Lantronix SLC 8000 Advanced Console Manager in a USB 32-Port, AC-Dual Supply configuration.
What network interfaces does this SLC 8000 model provide?▾
It lists dual 10/100/1000 Base-T RJ45 Ethernet and dual 1 Gb fiber SFP network interfaces.
Does it support web based console access without Java?▾
Yes. The SLC 8000 supports browser independent HTML5 support for Java-free web based telnet/SSH remote access.
Is it compatible with Percepxion?▾
Yes. The SLC 8000 is compatible with the Lantronix Percepxion central management software.
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
SLC81322201S-L1Y1
$364.32 - 3-year technical support
SLC81322201S-L1Y3
$1,062.61 - 5-year technical support
SLC81322201S-L1Y5
$1,720.40 - 1-year extended warranty & technical support
SLC81322201S-L2Y1
$647.69 - 3-year extended warranty & technical support
SLC81322201S-L2Y3
$1,882.33 - 5-year extended warranty & technical support
SLC81322201S-L2Y5
$3,036.00
