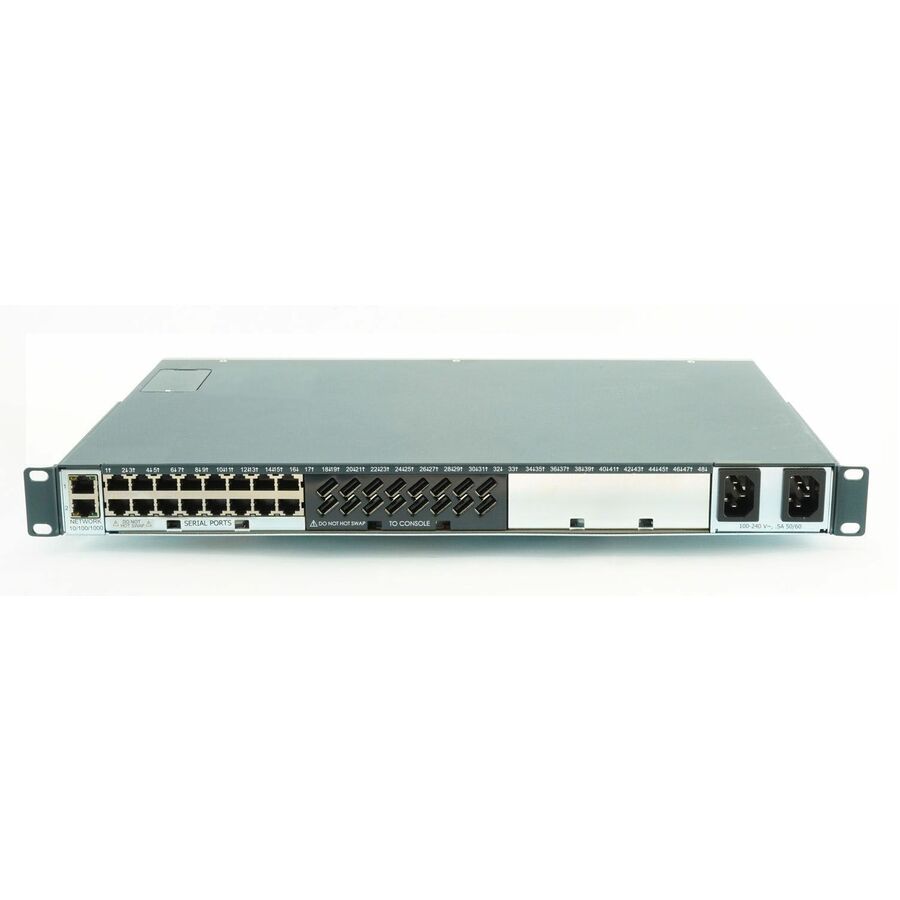

Lantronix SLC82322201S — SLC 8000 16-Port RJ-45/USB Dual AC Console Manager
$4,050.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 16 RJ-45 RS-232 serial ports for console access at 300 to 230400 bps
- 16 USB ports for USB console connectivity
- Dual 10/100/1000 Base-T RJ-45 Ethernet and dual 1 Gb fiber SFP network interfaces
- Dual AC supply with 100-240 VAC, 50 to 60 Hz input
- HTML5 Java-free web based Telnet/SSH remote access
- FIPS 140-2 compliant cryptography with Certificate #2398
- Percepxion central management software compatibility
- Resilience – Align your infrastructure growth plans for cost-effective scalability and flexibility with swappable I/O modules for RJ45 and USB console, and Ethernet.
Lantronix SLC82322201S is an SLC 8000 Advanced Console Manager configured with 16 RJ45 ports, 16 USB ports, and AC-Dual Supply. It provides secure access to IT equipment with RS-232 and USB console, and Ethernet. The SLC 8000 supports in-band access through dual 10/100/1000 Base-T RJ45 Ethernet and dual 1 Gb fiber SFP ports. It also supports out-of-band dial-up options and cellular connectivity with Lantronix G520 LTE gateway. For secure administration, the SLC 8000 includes HTML5 web based Telnet/SSH remote access, SSH v2, TLS v1.0 through TLS v1.3, packet filtering, per port user permissions, and FIPS 140-2 compliant cryptography. It is compatible with Lantronix Percepxion central management software.
Ideal For
- Remote administration of network, server and power infrastructure in data centers and remote environments
- Secure console access to routers, switches, servers, firewalls, PBXs, UPSs and building access devices through serial ports
- Browser-based HTML5 Telnet/SSH access to device ports without proprietary software
- Central monitoring and management with Lantronix Percepxion software
Specifications
| Weight | 11.1 lbs. maximum, depending on option |
| Console | RS-232 (RJ-45), 300 to 230400 bps |
| Network | Dual 10/100/1000 Base-T RJ-45 Ethernet |
| Mounting | Front-mid-rear mounting brackets |
| USB Ports | 16 |
| SSH Support | SSH v2, Public Key |
| TLS Support | TLS v1.0, TLS v1.1, TLS v1.2, TLS v1.3 |
| Cryptography | FIPS 140-2 compliant cryptography (Certificate #2398) |
| Power Supply | AC-Dual Supply |
| Sd Card Slot | SD and SDHC |
| Fiber Network | Dual 1 Gb fiber SFP |
| USB Interface | USB 2.0 High Speed, Full Speed, Low Speed |
| AC Model Input | 100-240 VAC, 50 to 60 Hz |
| Heat Flow Rate | 68 BTU per hour |
| Shipping Weight | 15.1 lbs. maximum, depending on option |
| Operating System | Embedded Linux |
| Power Consumption | Less than 30W |
| Central Management | Compatible with the Lantronix Percepxion™ central management software |
| RJ-45 Serial Ports | 16 |
| Storage Temperature | -20 to 80⁰ C (-4 to 176⁰ F), 10 to 90%RH, non-condensing |
| Dimensions L X W X H | 30.5 x 44.4 x 4.4 cm (12 x 17.48 x 1.75 in), 1U |
| Operating Temperature | 0 to 50⁰ C (32 to 122⁰ F), 30 to 90%RH, non-condensing |
| Remote Authentication | LDAP, RADIUS, Kerberos, TACACS+, Active Directory, NIS |
Frequently Asked Questions
What is the port configuration for SLC82322201S?▾
SLC82322201S is configured with RJ45 16-Port, USB 16-Port, and AC-Dual Supply.
Does this SLC 8000 model support both RS-232 and USB console access?▾
Yes. The SLC 8000 provides secure access to IT equipment with RS-232 and USB console, and Ethernet.
What secure access and authentication options are supported?▾
It supports browser independent HTML5 web based Telnet/SSH remote access, SSH v2, TLS v1.0 through TLS v1.3, packet filtering, per port user permissions, and remote authentication including LDAP, RADIUS, Kerberos, TACACS+, Active Directory, and NIS.
Is it compatible with Percepxion?▾
Yes. The SLC 8000 is compatible with the Lantronix Percepxion central management software.
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
SLC82322201S-L1Y1
$364.32 - 3-year technical support
SLC82322201S-L1Y3
$1,062.61 - 5-year technical support
SLC82322201S-L1Y5
$1,720.40 - 1-year extended warranty & technical support
SLC82322201S-L2Y1
$647.69 - 3-year extended warranty & technical support
SLC82322201S-L2Y3
$1,882.33 - 5-year extended warranty & technical support
SLC82322201S-L2Y5
$3,036.00
