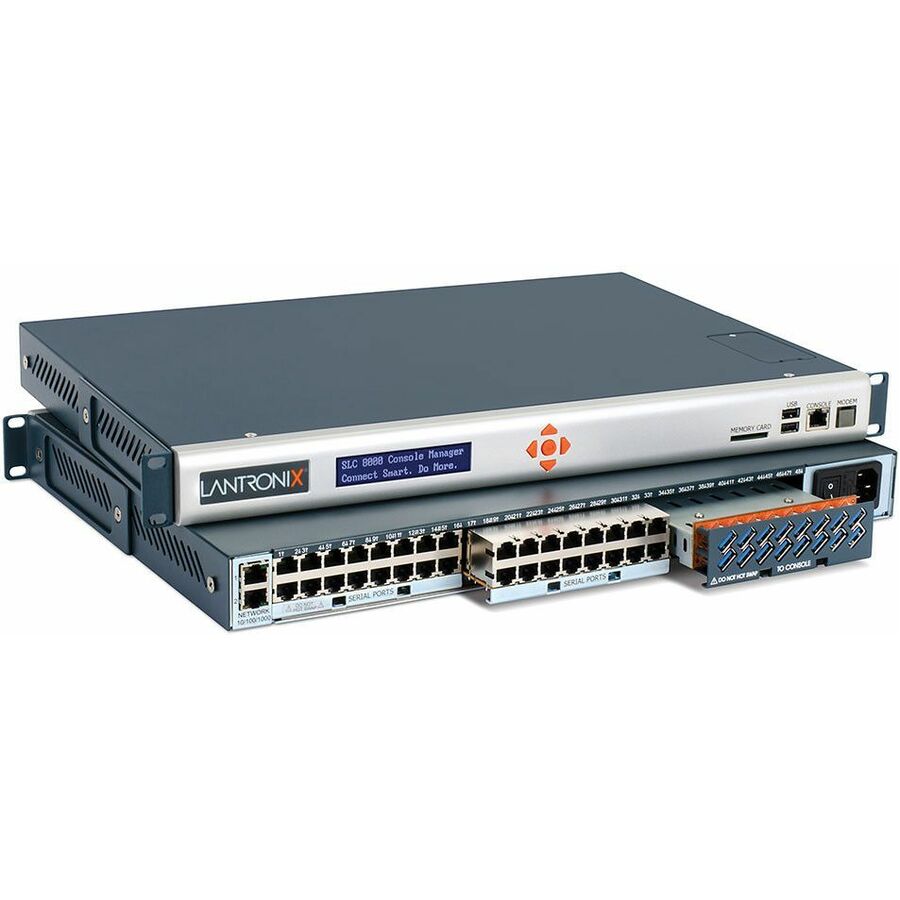

Lantronix SLC80162401G — SLC 8000 16-Port RJ-45 Console Manager
$3,754.04$4,070.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 16 RJ-45 serial ports in a US only SLC 8000 Advanced Console Manager configuration
- DC-dual supply input with -20 to –72 VDC power for the DC model
- Dual 10/100/1000 Base-T RJ-45 Ethernet and dual 1 Gb fiber SFP network interfaces
- HTML5 Java-free Telnet/SSH remote access through a browser-independent web interface
- FIPS 140-2 compliant cryptography with Certificate #2398
- Percepxion central management compatibility for Lantronix Percepxion software
- 1U rack form factor with front-mid-rear mounting brackets
- Resilience – Align your infrastructure growth plans for cost-effective scalability and flexibility with swappable I/O modules for RJ45 and USB console, and Ethernet.
Lantronix SLC 8000 is an advanced modular console manager that provides secure access to IT equipment with RS-232 and USB console, and/or Ethernet. SLC80162401G is the US only RJ45 16-Port, DC-Dual Supply, TAA configuration. The SLC 8000 supports in-band access through dual 10/100/1000 Base-T Ethernet and dual 1 Gb fiber SFP ports. It also supports out-of-band dial-up through local terminal, internal modem or USB modem, and cellular with a Lantronix G520 LTE gateway. For secure administration, the SLC 8000 includes SSH v2, TLS v1.0 through TLS v1.3, packet filtering, per-port user permissions and remote authentication through LDAP, RADIUS, Kerberos, TACACS+, Active Directory and NIS. It is compatible with Lantronix Percepxion central management software.
Ideal For
- Remote management of network, server and power infrastructure in data centers and remote environments
- Secure access during unscheduled network downtime through out-of-band management paths
- Administration by system administrators, quality engineers and test engineers from a single point of contact
- Vendor-neutral access to switches, routers, servers, PDUs, UPSs and IoT environment assets
Specifications
| USB | USB 2.0 High Speed, Full Speed, Low Speed |
| Series | Lantronix SLC 8000 |
| Weight | 11.1 lbs. maximum, depending on option |
| Console | RS-232 (RJ-45), 300 to 230400 bps |
| Network | Dual 10/100/1000 Base-T RJ-45 Ethernet, Dual 1 Gb fiber SFP |
| Storage | -20 to 80⁰ C (-4 to 176⁰ F), 10 to 90%RH, non-condensing |
| DC Input | -20 to –72 VDC |
| Mounting | Front-mid-rear mounting brackets |
| Operating | 0 to 50⁰ C (32 to 122⁰ F), 30 to 90%RH, non-condensing |
| Power Supply | DC-Dual Supply |
| Sd Card Slot | SD and SDHC |
| Serial Ports | 16 x Serial Port |
| Heat Flow Rate | 68 BTU per hour |
| TAA Compliance | TAA Compliant |
| Shipping Weight | 15.1 lbs. maximum, depending on option |
| Limited Warranty | 3 Year |
| Power Consumption | Less than 30W |
| Central Management | Compatible with the Lantronix Percepxion™ central management software |
| Dimensions L X W X H | 30.5 x 44.4 x 4.4 cm (12 x 17.48 x 1.75 in), 1U |
| Device Port Connector | RJ-45 |
| Remote Authentication | LDAP, RADIUS, Kerberos, TACACS+, Active Directory, NIS |
| Serial Device Port Speed | 300 to 230400 bps |
| Security And Authentication | FIPS 140-2 compliant cryptography (Certificate #2398) |
Frequently Asked Questions
Is SLC80162401G TAA compliant?▾
Yes. The part row identifies SLC80162401G as a TAA configuration, and Etilize lists it as TAA Compliant.
What power input does this SLC 8000 model use?▾
This SKU is a DC-dual supply model. The listed DC model input is -20 to –72 VDC.
Which remote authentication services are supported?▾
It supports remote authentication through LDAP, RADIUS, Kerberos, TACACS+, Active Directory and NIS.
Is the SLC 8000 compatible with Percepxion?▾
Yes. The SLC 8000 is listed as compatible with Lantronix Percepxion central management software.
