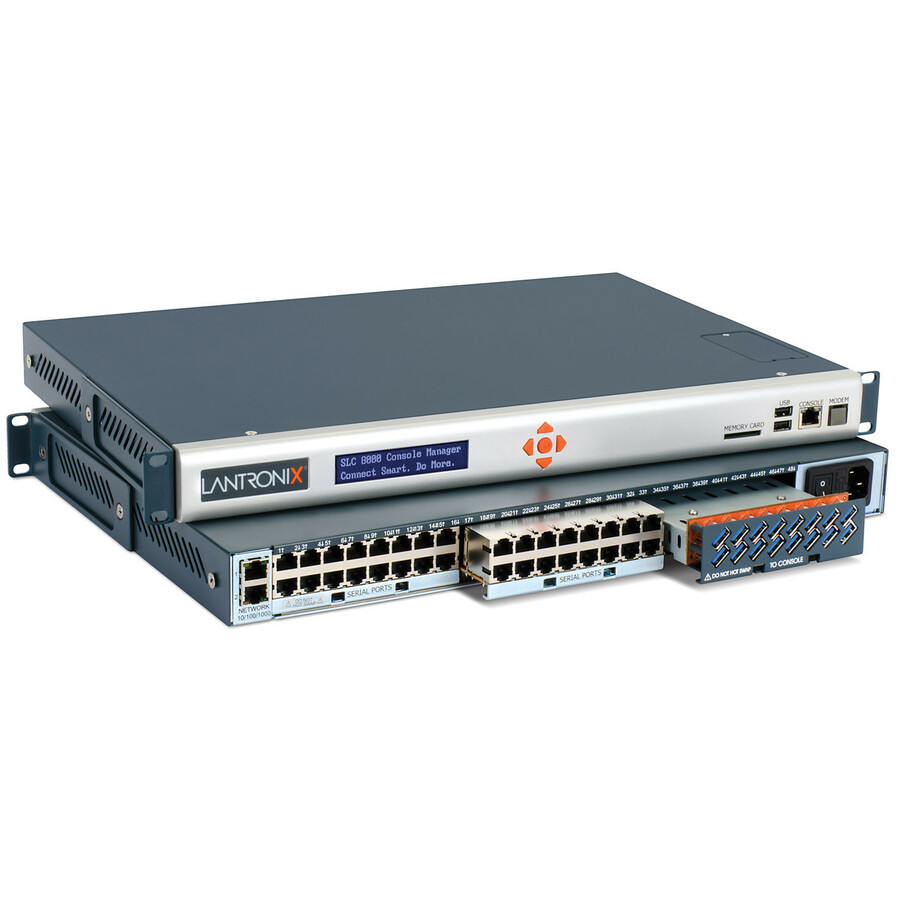

Lantronix SLC81162411S — SLC 8000 16-Port Serial USB Console Manager
$3,907.20
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 16-port Serial USB configuration for SLC 8000 advanced console management
- Dual 10/100/1000 Base-T RJ-45 Ethernet for in-band access
- Dual 1 Gb fiber SFP ports with bonding and IP filtering
- Dual DC power supply input for -20 to –72 VDC installations
- HTML5 based Java-free web based telnet/SSH remote access
- FIPS 140-2 compliant cryptography (Certificate #2398)
- Percepxion™ central management software compatibility
- Resilience – Align your infrastructure growth plans for cost-effective scalability and flexibility with swappable I/O modules for RJ45 and USB console, and Ethernet.
Lantronix SLC 8000 is the industry’s first advanced modular console manager for secure access to IT equipment with RS-232 and USB console, and/or Ethernet. This SKU is the Serial USB 16-Port, Dual SFP, Dual DC PSU configuration. As part of Lantronix Remote Environment Management out-of-band, the SLC 8000 provides secure remote access for network, server and power infrastructure in data centers and remote environments. Users can access device ports via Telnet/SSH or a web browser-based console client without proprietary software. Security and authentication features include SSH v2, TLS v1.0 through TLS v1.3, packet filtering, per port user permissions, remote authentication, local username/password, and FIPS 140-2 compliant cryptography. The SLC 8000 is compatible with Lantronix Percepxion™ central management software.
Ideal For
- Remote Environment Management out-of-band access for data centers and remote environments
- Central administration of routers, switches, servers, firewalls, PBXs, UPSs, and building access devices through serial ports
- Secure browser-based telnet/SSH remote access without proprietary software
- Centralized monitoring and management with Percepxion for Networking
Specifications
| Weight | 11.1 lbs. maximum, depending on option |
| Storage | -20 to 80⁰ C (-4 to 176⁰ F), 10 to 90%RH, non-condensing |
| Mounting | Front-mid-rear mounting brackets |
| Operating | 0 to 50⁰ C (32 to 122⁰ F), 30 to 90%RH, non-condensing |
| Dimensions | 30.5 x 44.4 x 4.4 cm (12 x 17.48 x 1.75 in), 1U |
| Device Ports | 16 x Serial Port |
| Sd Card Slot | SD and SDHC |
| Secure Shell | SSH v2, Public Key |
| USB Interface | USB 2.0 High Speed, Full Speed, Low Speed |
| DC Model Input | -20 to –72 VDC |
| Heat Flow Rate | 68 BTU per hour |
| Shipping Weight | 15.1 lbs. maximum, depending on option |
| Limited Warranty | 3 Year |
| Operating System | Embedded Linux |
| Console Interface | RS-232 (RJ-45), 300 to 230400 bps |
| FIPS Cryptography | FIPS 140-2 compliant cryptography (Certificate #2398) |
| Power Consumption | Less than 30W |
| Model Configuration | Advanced Console Manager, Serial USB 16-Port, Dual SFP, Dual DC PSU |
| Fiber SFP+ Interfaces | Dual 1 Gb fiber SFP |
| Secure Sockets Layer | TLS v1.0, TLS v1.1, TLS v1.2, TLS v1.3 |
| Remote Authentication | LDAP, RADIUS, Kerberos, TACACS+, Active Directory, NIS |
| RJ-45 Ethernet Interfaces | Dual 10/100/1000 Base-T RJ-45 Ethernet |
Frequently Asked Questions
What configuration is SLC81162411S?▾
SLC81162411S is the Lantronix SLC 8000 Advanced Console Manager, Serial USB 16-Port, Dual SFP, Dual DC PSU configuration.
What network interfaces does this SLC 8000 model include?▾
The network interfaces are Dual 10/100/1000 Base-T RJ45 Ethernet and Dual 1 Gb fiber SFP.
What power input does this DC model use?▾
The DC model input (dual) is -20 to –72 VDC, and power consumption is Less than 30W.
Is this model compatible with Percepxion?▾
Yes. The SLC 8000 is compatible with the Lantronix Percepxion™ central management software.
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
SLC81162411S-L1Y1
$351.65 - 3-year technical support
SLC81162411S-L1Y3
$1,025.64 - 5-year technical support
SLC81162411S-L1Y5
$1,660.56 - 1-year extended warranty & technical support
SLC81162411S-L2Y1
$625.16 - 3-year extended warranty & technical support
SLC81162411S-L2Y3
$1,816.85 - 5-year extended warranty & technical support
SLC81162411S-L2Y5
$2,930.40
