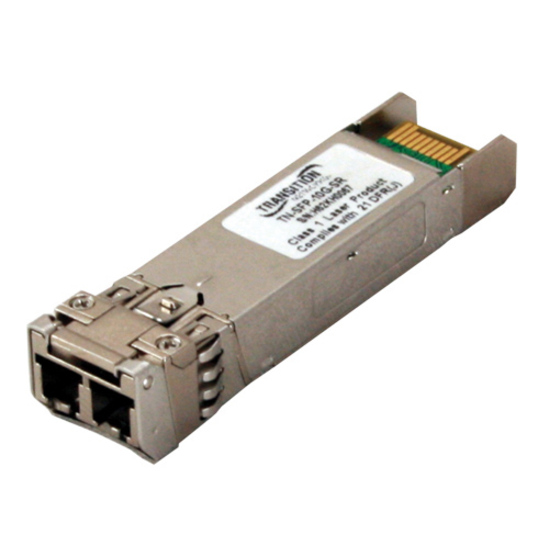

Lantronix TN-SFP-10G-D-10 — TN-SFP-10G-x-xx Series 10GBase-BX SFP+ Transceiver
$320.23$477.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10GBase-BX SFP+ optical transceiver with LC connector
- 1330nm TX/1270nm RX single fiber single mode (LC)
- 10 km/6.2 mi. link length with 5.9 dB link budget
- SFF-8472 Digital Diagnostic Function (DMI)
- 10G Small Form-Factor Pluggable (SFP+) MSA compliant design
- Single +3.3V power supply
- RoHS compliant
Lantronix TN-SFP-10G-D-10 is a Cisco Compatible 10GBase-BX SFP+ optical transceiver in the TN-SFP-10G-x-xx Series. It provides 1330nm TX/1270nm RX operation over single fiber single mode with an LC connector. This SKU supports a 10 km/6.2 mi. link length and lists a 5.9 dB link budget. The series includes SFF-8472 Digital Diagnostic Function (DMI) and uses a single +3.3V power supply. Lantronix lists applications including 10G Ethernet switches and routers and Metro Edge Switching.
Ideal For
- 10G Ethernet switches
- 10G Ethernet routers
- Metro Edge Switching
- Data networking over single-mode optical fiber
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Standard | IEEE 802.3z; IEEE 802.3ae |
| Warranty | Lifetime |
| Form Factor | SFP+ |
| Link Budget | 5.9 dB |
| Power Input | 3.3V |
| Certification | IEC-60825; FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| TAA Compliance | TAA Compliant |
| Network Technology | 10GBase-BX |
| Receive Wavelength | 1270nm |
| Ethernet Technology | 10 Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Transmit Wavelength | 1330nm |
| Fiber Mode Supported | Single-mode |
| Media Type Supported | Optical Fiber |
| Operating Temperature | 0°C to 70°C |
| Environmental Compliance | RoHS |
| Maximum Distance Supported | 10 km |
| Digital Diagnostic Function | SFF-8472 (DMI) |
Frequently Asked Questions
What wavelength configuration does TN-SFP-10G-D-10 use?▾
It uses 1330nm TX/1270nm RX over single fiber single mode with an LC connector.
What link distance does this transceiver support?▾
The SKU part row lists 10 km/6.2 mi. with a 5.9 dB link budget.
Does this SFP+ transceiver include DMI?▾
Yes. The series features SFF-8472 Digital Diagnostic Function (DMI).
What applications does Lantronix list for this series?▾
Lantronix lists applications including 10G Ethernet switches and routers and Metro Edge Switching.
