Lantronix TN-SFP-10G-D-20 — TN-SFP-10G-x-xx Series 10GBase-BX SFP+ Transceiver
$689.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10GBase-BX SFP+ optical transceiver with LC connector
- 1330nm TX/1270nm RX single fiber single mode operation
- 20 km/12.4 mi. link length with 12.1 dB link budget
- SFF-8472 Digital Diagnostic Function (DMI)
- 10G Small Form-Factor Pluggable (SFP+) MSA compliant
- Single +3.3V power supply
- 0°C to 70°C operating temperature

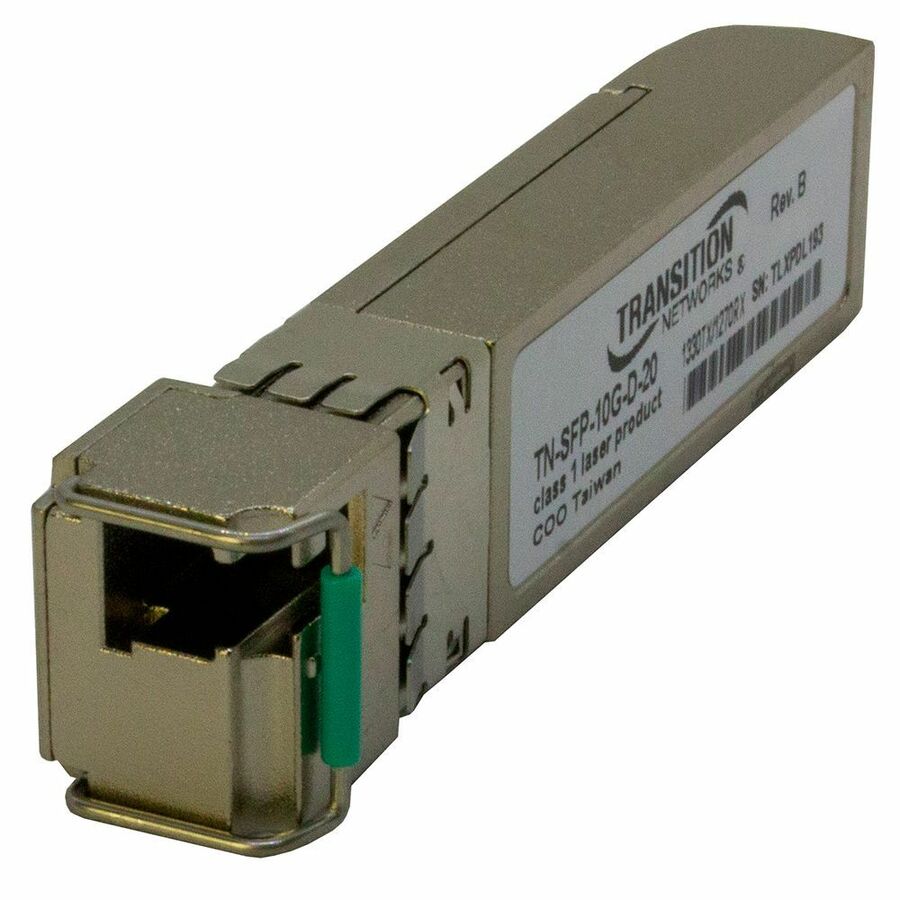

Lantronix TN-SFP-10G-D-20 is a Cisco Compatible 10GBase-BX SFP+ optical transceiver with DMI and an LC connector. It is specified for single fiber single mode links at 20 km/12.4 mi., with 1330nm TX and 1270nm RX wavelengths. Applications include 10G Ethernet switches and routers and Metro Edge Switching. The TN-SFP-10G-x-xx Series lists SFP+ MSA compliance, SFF-8472 Digital Diagnostic Function (DMI), a single +3.3V power supply, RoHS compliance and a lifetime warranty.
Ideal For
- 10G Ethernet switches
- 10G Ethernet routers
- Metro Edge Switching
- Optical network data networking links
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Warranty | Lifetime |
| Standards | IEEE 802.3z; IEEE 802.3; IEEE 802.3ae |
| Form Factor | SFP+ |
| Link Budget | 12.1 dB |
| Link Length | 20 km/12.4 mi. |
| Power Input | 3.3V |
| Compatibility | MSA Compliant |
| Rx Wavelength | 1270nm |
| Tx Wavelength | 1330nm |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Network Technology | 10GBase-BX |
| Ethernet Technology | 10 Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Fiber Mode Supported | Single-mode |
| Operating Temperature | 0°C to 70°C |
| Digital Diagnostic Function | SFF-8472 Digital Diagnostic Function (DMI) |
Frequently Asked Questions
What connector and fiber type does TN-SFP-10G-D-20 use?▾
It is a 10GBase-BX SFP+ optical transceiver with an LC connector for single fiber single mode links.
What are the transmit and receive wavelengths?▾
TN-SFP-10G-D-20 uses 1330nm TX and 1270nm RX wavelengths.
Does this SFP+ transceiver support DMI?▾
Yes. The series features SFF-8472 Digital Diagnostic Function (DMI).
What is the operating temperature range?▾
The operating temperature is 0°C to 70°C.
