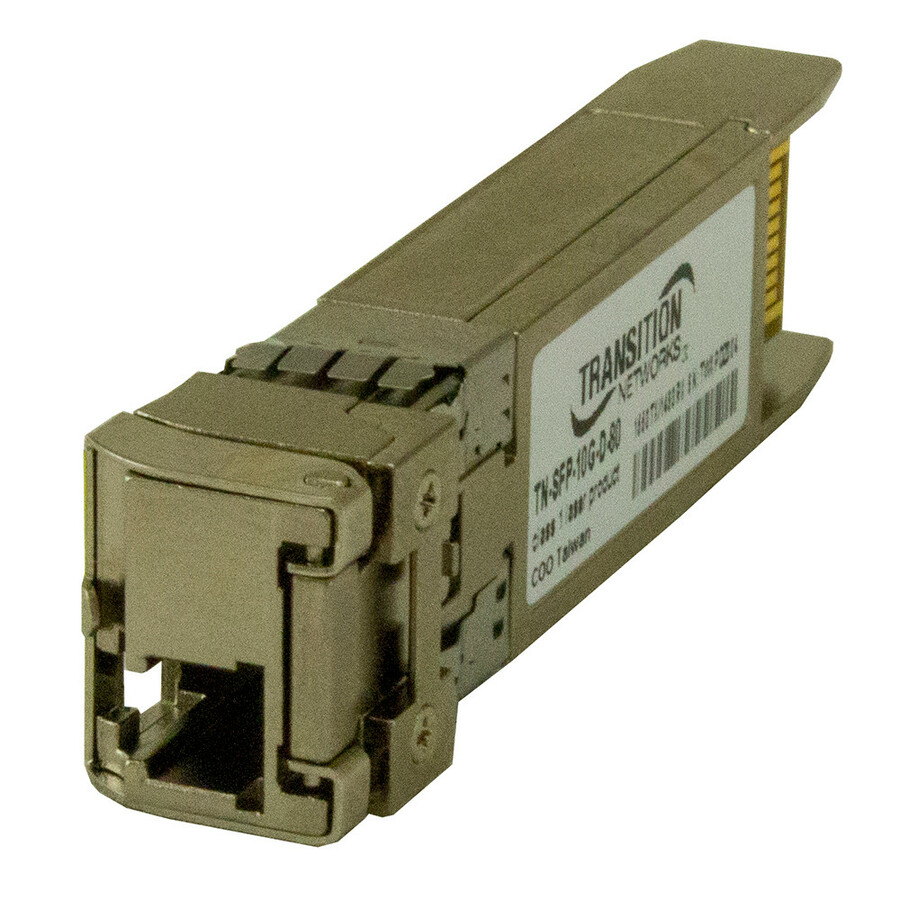

Lantronix TN-SFP-10G-D-80 — TN-SFP-10G-x-xx Series 10GBase-BX SFP+ Transceiver
$3,074.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10GBase-BX SFP+ optical transceiver with LC connector
- 1550nm TX/1490nm RX single fiber single mode operation
- 80 km/49.7 mi. maximum link length
- 23.0 dB link budget
- SFF-8472 Digital Diagnostic Function (DMI)
- 3.3V power input
- RoHS compliant
Lantronix TN-SFP-10G-D-80 is a Cisco Compatible 10GBase-BX SFP+ optical transceiver with DMI and an LC connector. This configuration supports 1550nm TX/1490nm RX single fiber single mode operation. The module is part of the TN-SFP-10G-x-xx Series and is listed with an 80 km/49.7 mi. link length and 23.0 dB link budget. Applications include 10G Ethernet switches and routers, and Metro Edge Switching. The module supports a single +3.3V power supply and operates from 0°C to 70°C.
Ideal For
- 10G Ethernet switches
- 10G Ethernet routers
- Metro Edge Switching
- Optical network data networking
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Standard | IEEE 802.3z; IEEE 802.3ae |
| Warranty | Lifetime |
| Link Budget | 23.0 dB |
| Power Input | 3.3V |
| Certification | IEC-60825; FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Output Wavelength | -5.5nm < λc < +7.5nm |
| Network Technology | 10GBase-BX |
| Receive Wavelength | 1490nm |
| Ethernet Technology | 10 Gigabit Ethernet |
| Maximum Link Length | 80 km |
| Storage Temperature | -40°C to 85°C |
| Transmit Wavelength | 1550nm |
| Fiber Mode Supported | Single-mode |
| Media Type Supported | Optical Fiber |
| Operating Temperature | 0°C to 70°C |
| Environmental Compliance | RoHS; WEEE; REACH |
| Digital Diagnostic Function | SFF-8472 Digital Diagnostic Function (DMI) |
Frequently Asked Questions
What applications is the TN-SFP-10G-D-80 listed for?▾
It is listed for 10G Ethernet switches and routers, and Metro Edge Switching.
What connector and fiber type does this SFP+ module use?▾
It uses an LC connector and supports single fiber single mode operation.
Does this module include DMI?▾
Yes. The TN-SFP-10G-D-80 includes SFF-8472 Digital Diagnostic Function (DMI).
What is the operating temperature range?▾
The operating temperature range is 0°C to 70°C.
