Lantronix TN-SFP-10G-U-80 — TN-SFP-10G-x-xx Series 10GBase-BX SFP+ Transceiver
$2,063.20$3,074.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10GBase-BX compliance for single-fiber single-mode links
- 1490nm TX/1550nm RX operation with LC connector
- 80 km/49.7 mi. maximum link length with 23.0 dB link budget
- SFF-8472 Digital Diagnostic Function (DMI)
- Single +3.3V power supply
- IEEE 802.3z, IEEE 802.3 and IEEE 802.3ae standards support

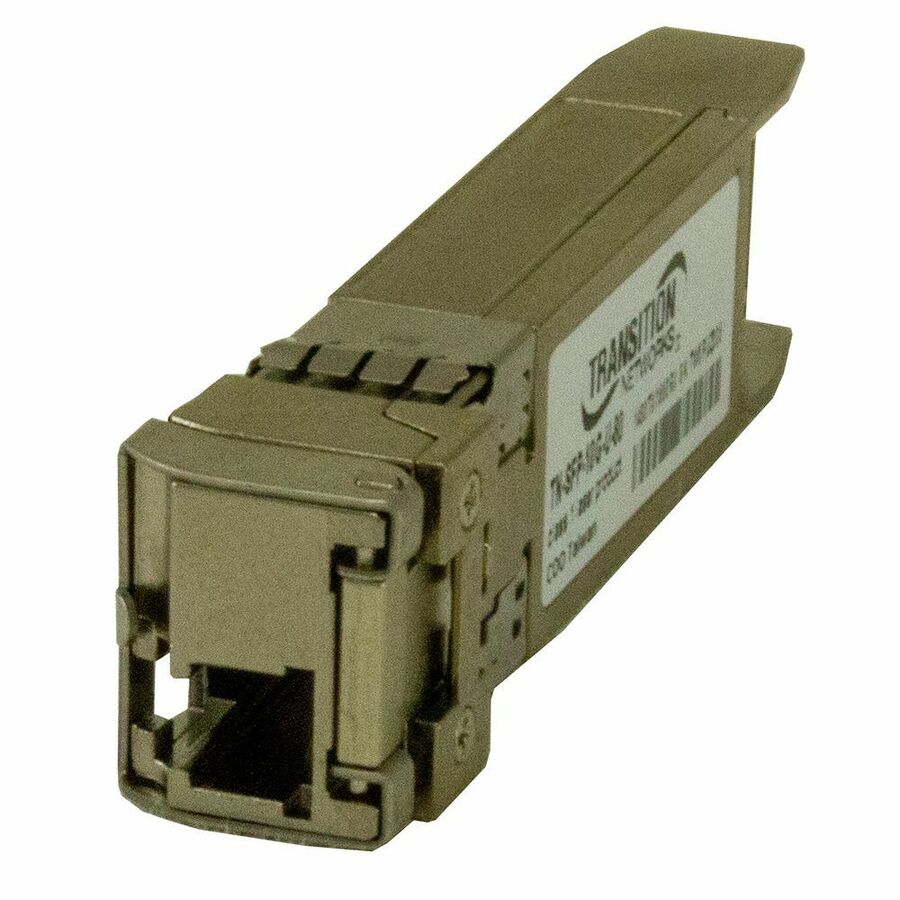

Lantronix TN-SFP-10G-U-80 is a Cisco compatible 10GBase-BX SFP+ optical transceiver in the TN-SFP-10G-x-xx Series. It uses an LC connector and supports SFF-8472 Digital Diagnostic Function (DMI). This SKU is configured for 1490nm TX/1550nm RX single fiber single mode links. It supports a maximum link length of 80 km/49.7 mi. with a 23.0 dB link budget. Applications include 10G Ethernet switches and routers and Metro Edge Switching.
Ideal For
- 10G Ethernet switches
- 10G Ethernet routers
- Metro Edge Switching
- Single-fiber single-mode 10GBase-BX links
Specifications
| Warranty | Lifetime |
| Standards | IEEE 802.3z; IEEE 802.3; IEEE 802.3ae |
| Dimensions | 0.52” [13 mm] x 2.18” [55 mm] x 0.33” [8 mm] |
| Link Budget | 23.0 dB |
| Power Input | 3.3V |
| Link Distance | 80 km/49.7 mi. |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Network Technology | 10GBase-BX |
| Receive Wavelength | 1550nm |
| Ethernet Technology | 10 Gigabit Ethernet |
| Maximum Link Length | 80 km |
| Storage Temperature | -40°C to 85°C |
| Transmit Wavelength | 1490nm |
| Fiber Mode Supported | Single-mode |
| Operating Temperature | 0°C to 70°C |
| Environmental Compliance | RoHS |
| Digital Diagnostic Function | SFF-8472 Digital Diagnostic Function (DMI) |
Frequently Asked Questions
What connector does TN-SFP-10G-U-80 use?▾
TN-SFP-10G-U-80 uses an LC connector.
What distance does this SFP+ support?▾
It supports a maximum link length of 80 km/49.7 mi. with a 23.0 dB link budget.
What are the transmit and receive wavelengths?▾
This SKU uses 1490nm TX and 1550nm RX on single fiber single mode links.
What applications is the TN-SFP-10G-x-xx Series used for?▾
Lantronix lists applications including 10G Ethernet switches and routers and Metro Edge Switching.
