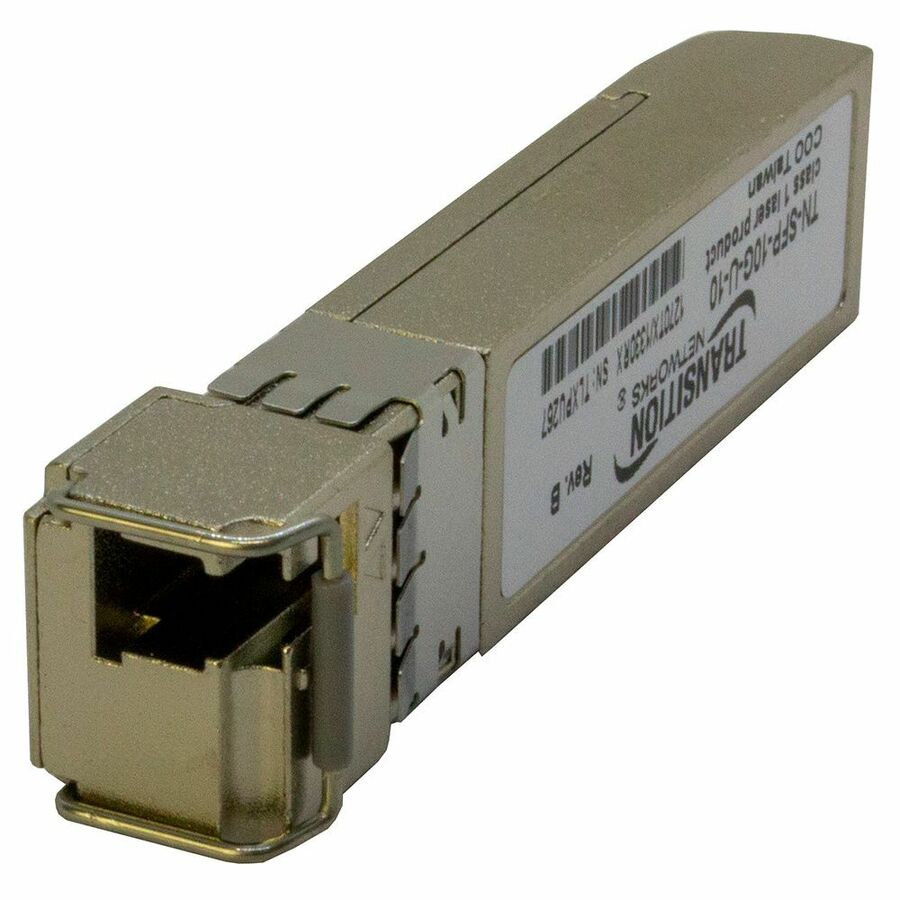

Lantronix TN-SFP-10G-U-10 — TN-SFP-10G-x-xx Series 10GBase-BX SFP+ Transceiver
$320.23$477.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10GBase-BX SFP+ optical transceiver with LC connector
- 1270nm TX/1330nm RX single-fiber single-mode operation
- 10 km/6.2 mi. link length with 5.9 dB link budget
- SFF-8472 Digital Diagnostic Function (DMI)
- Cisco compatible 10GBase SFP+ module
- 3.3V power input
Lantronix TN-SFP-10G-U-10 is a Cisco compatible 10GBase-BX SFP+ optical transceiver in the TN-SFP-10G-x-xx Series. It provides 1270nm TX/1330nm RX single-fiber single-mode operation through an LC connector, with DMI support. This SKU is listed for a 10 km/6.2 mi. link length and a 5.9 dB link budget. Applications include 10G Ethernet switches and routers and Metro Edge Switching. The series is 10G Small Form-Factor Pluggable (SFP+) MSA compliant, compliant with 10GBase-BX, and RoHS compliant. It uses a single +3.3V power supply and is backed by a Lifetime warranty.
Ideal For
- 10G Ethernet switches
- 10G Ethernet routers
- Metro Edge Switching
- Data networking over single-fiber single-mode optical fiber
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Standard | IEEE 802.3z; IEEE 802.3ae |
| Warranty | Lifetime |
| Fiber Mode | Single-mode |
| Media Type | Optical Fiber |
| Form Factor | SFP+ |
| Link Budget | 5.9 dB |
| Link Length | 10 km/6.2 mi. |
| Power Input | 3.3V |
| Rx Wavelength | 1330nm |
| Tx Wavelength | 1270nm |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Network Technology | 10GBase-BX |
| Digital Diagnostics | SFF-8472 Digital Diagnostic Function (DMI) |
| Ethernet Technology | 10 Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 70°C |
Frequently Asked Questions
What wavelength pair does TN-SFP-10G-U-10 use?▾
TN-SFP-10G-U-10 uses 1270nm TX and 1330nm RX for single-fiber single-mode operation.
What link distance does this transceiver support?▾
This SKU is listed for 10 km/6.2 mi. with a 5.9 dB link budget.
Does TN-SFP-10G-U-10 include DMI?▾
Yes. The series features SFF-8472 Digital Diagnostic Function (DMI), and this part row identifies the SKU as SFP+ with DMI.
What applications is this SFP+ module used for?▾
Lantronix lists applications including 10G Ethernet switches and routers and Metro Edge Switching.
