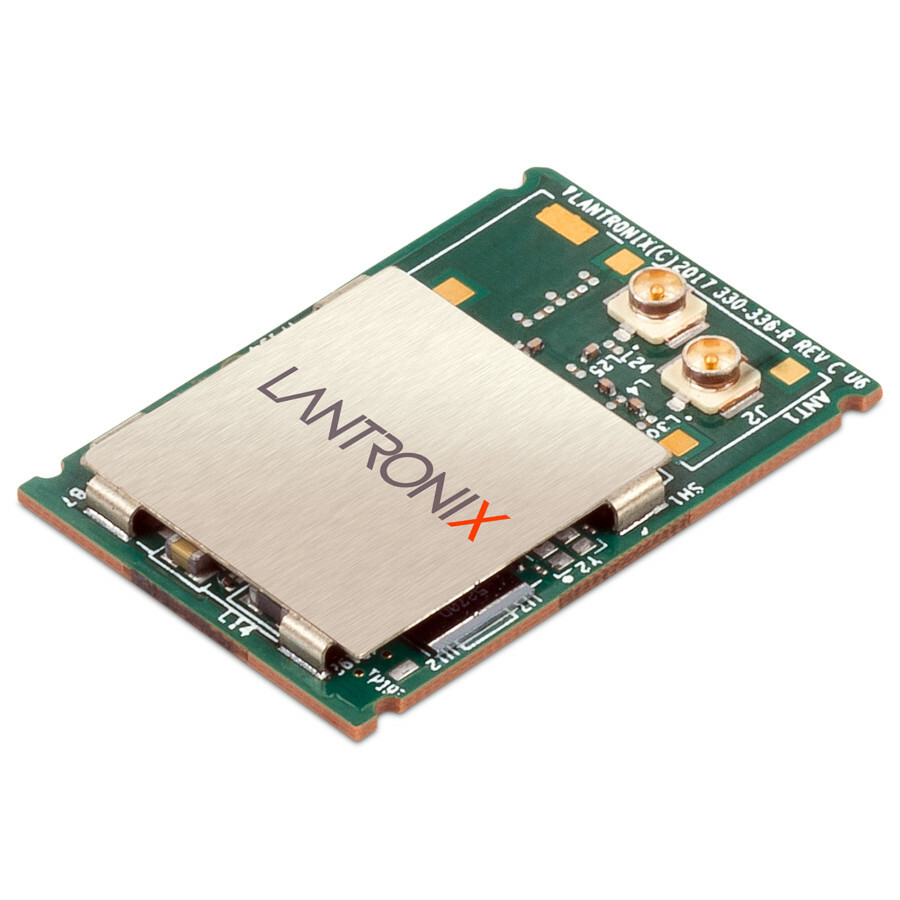

Lantronix XPC240100B-02 — xPico 240 Embedded IoT Gateway
$31.29
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping on US orders $50+Ordered on its own: $16.89 ground shipping. Add $50 or more to your cart and it ships free.Ships as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Dual-band Wi-Fi and Ethernet: 802.11 a/b/g up to 54 Mbps, 802.11 n (1×1) up to 150 Mbps, and 10Base-T/100Base-TX (RMII)
- Concurrent Soft AP + STA: client and Soft AP modes with up to 4 in Concurrent Mode
- Enterprise Wi-Fi security: WPA2 Enterprise with EAP-TLS, EAP-TTLS, EAP-PEAP and EAP-FAST
- Percepxion™ management: Lantronix Percepxion™ Cloud Software Platform, REST, MQTT and secure firmware upgrade via HTTPS
- Host integration: UART Port TTL data rates from 9600 bps to 4 Mbps, USB (Host) and 12 Programmable I/O Pins (GPIOs)
- LGA production packaging: Tape and Reel, MSL 3, with 17mm x 25mm x 2mm LGA dimensions
- Industrial operating range: -40°C to +85°C operating temp
- Dual-band Wi-Fi (802.11 a/b/g/n) and Ethernet
Lantronix xPico 240 Embedded IoT Gateway delivers secure Ethernet and Wi-Fi connectivity for OEM smart connected products. The XPC240100B-02 configuration is 802.11 A/B/G/N with Ethernet, dual U.FL, industrial temperature, LGA and T&R 250. The xPico 240 line includes enterprise security, intelligent networking, production ready software and pre-integration with the Percepxion™ platform. It supports dual-band 2.4 GHz and 5 GHz Wi-Fi, Ethernet to Wi-Fi Client Bridge, Concurrent Soft AP + STA and WLAN QuickConnect. The gateway can operate as a network co-processor or as a wireless MCU with the provided SDK. TruPort® Serial supports transparent pass-through of proprietary serial and standard Fieldbus protocols, while TruPort® Socket supports TCP, UDP and TLS connections. Infinishield™ security software includes Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates, Secure Key Storage, Encrypted Configuration, role based access control and software controlled network service ports enable/disable. Lantronix Percepxion™ provides cloud-based device management and remote updates.
Ideal For
- Adding Ethernet and dual-band Wi-Fi connectivity to OEM smart connected products
- Offloading network and IoT communications from an embedded microcontroller as a network co-processor
- Using the gateway as a wireless MCU with the provided SDK
- Managing remote updates and device status through Percepxion™
Specifications
| Series | XPico 240 Embedded IoT Gateway |
| Roaming | 802.11r fast roaming |
| Data Rates | 9600 bps to 4 Mbps (software selectable) |
| Encryption | AES Algorithm, 256-bit, 192-bit, 128-bit |
| Key Storage | Secure Key Storage, Encrypted Configuration |
| Secure Boot | Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates |
| Channel Width | 20 and 40 MHz channel width with optional SGI |
| Client Bridge | Ethernet to Wi-Fi Client Bridge (Single Host Mode), Auto-MAC ID |
| Access Control | Role Based Access Control |
| Web Management | Serial Port, Internal Web Server (HTTP/HTTPS) |
| Wireless Modes | Concurrent Soft AP + STA (Client), Client, Soft AP |
| Concurrent Mode | Up to 4 in Concurrent Mode |
| Frequency Bands | Dual Band 2.4 GHz and 5 GHz, Channels 1-13, UNII-1, 2a, 2e and 3 |
| Gateway Support | Modbus TCP to Modbus RTU/ ASCII gateway |
| Wi-Fi Data Rate | 802.11 n (1×1) up to 150 Mbps |
| Wi-Fi Standards | IEEE 802.11 a/b/g up to 54 Mbps |
| Firmware Upgrade | Secure Firmware Upgrade via HTTPS, Percepxion™ |
| Protocol Support | DHCP Client, Server (Soft AP), HTTP Server/Client; IPv4, TCP/IP, UDP/IP, ARP, ICMP, Auto-IP, DNS; SNMP v1/v2; IPv6 |
| Serial Interface | UART Port TTL |
| Security Software | Infinishield™ Security Software |
| SKU Configuration | XPICO 240 EMBEDDED IOT GW, 802.11 A/B/G/N, ETH, DUAL U.FL, IND TEMP, LGA T&R 250 |
| Wireless Features | Connect to multiple WLAN networks, WLAN QuickConnect |
| Data Communication | TruPort ® Serial Technology— TCP and UDP Server Mode, TCP and UDP Client Mode, Multi-host Connect; TLS Client and Server |
| Discovery Protocol | Lantronix Discovery Protocol (77FE) |
| Secure Connections | Secure Connections with SSL/TLS, HTTPS |
| Socket Communication | TruPort ® Socket— Multi-host Client and Server Modes, HTTP(S), Sockets, TLS |
| Wi-Fi Authentication | WPA2 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST) |
| Management Interfaces | Lantronix Percepxion™ Cloud Software Platform, REST, MQTT |
| Ethernet Specifications | IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII) |
| Configuration Management | XML Configuration and XML Status (CLI, API) |
Documentation
Frequently Asked Questions
Does XPC240100B-02 support both Wi-Fi and Ethernet?▾
Yes. The xPico 240 supports dual-band Wi-Fi with IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps, plus Ethernet with 10Base-T and 100Base-TX (RMII).
What package format is this SKU?▾
XPC240100B-02 is the LGA tape-and-reel configuration. The Lantronix part row describes it as LGA T&R 250, and the LGA packaging is Tape and Reel, MSL 3.
What management interfaces are supported?▾
Management interfaces include Lantronix Percepxion™ Cloud Software Platform, REST, MQTT, Lantronix Discovery Protocol (77FE), Serial Port, Internal Web Server (HTTP/HTTPS), XML Configuration and XML Status, and secure firmware upgrade via HTTPS and Percepxion™.
What operating temperature range is listed for the xPico 240?▾
The listed operating temperature is -40°C to +85°C.
