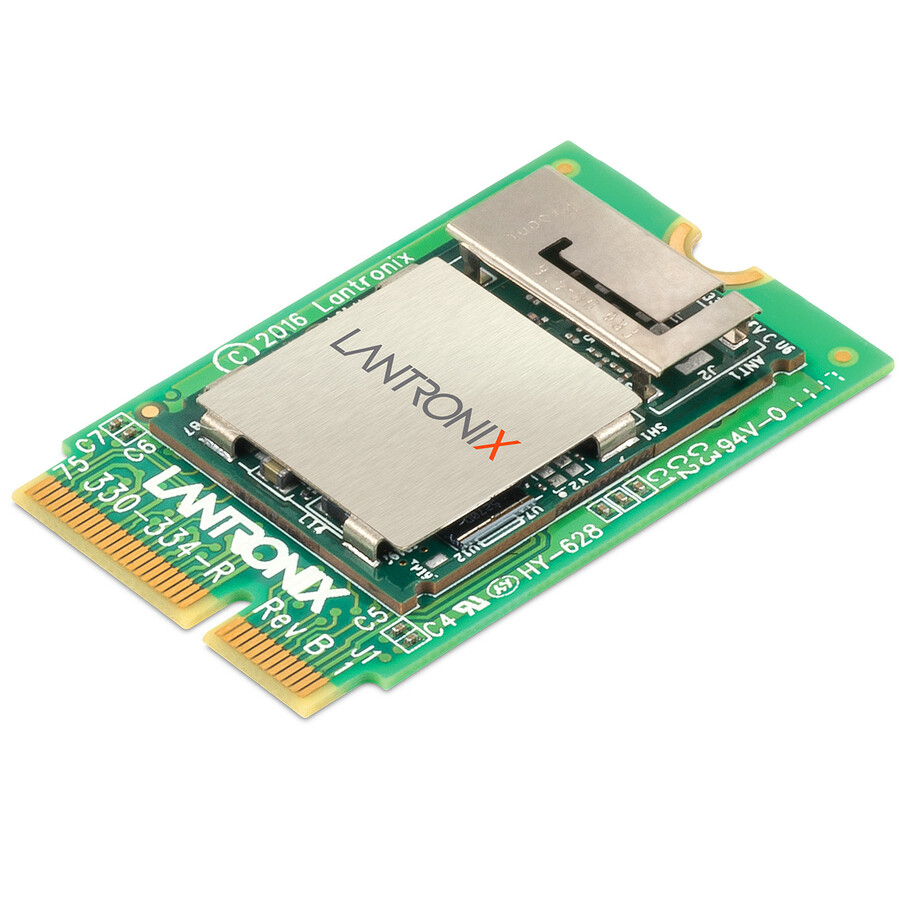

Lantronix XPC240400B-02 — xPico 240 Edge Connector IoT Gateway Tray
$31.73$33.24
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Dual-band Wi-Fi supports IEEE 802.11 a/b/g/n on 2.4 GHz and 5 GHz
- Ethernet connectivity supports IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)
- Concurrent Soft AP + STA mode enables direct wireless service access without disrupting machine field operations
- Percepxion management supports remote updates and device management
- Infinishield security includes Secure Boot, Secure Firmware-Over-the-Air (FOTA) updates, Secure Key Storage and Encrypted Configuration
- Edge connector configuration ships with on-module antenna and tray packaging
- UART Port TTL data rates span 9600 bps to 4 Mbps (software selectable)
- Dual-band Wi-Fi (802.11 a/b/g/n) and Ethernet
Lantronix xPico 240 delivers Ethernet and Wi-Fi connectivity for OEM smart connected products. XPC240400B-02 is the xPico 240 edge connector SKU with an on-module antenna and tray packaging. The module supports dual-band IEEE 802.11 a/b/g/n Wi-Fi, Ethernet, automatic network connection management and Concurrent Soft AP + STA operation. It can operate as a network co-processor or wireless MCU. Security and management are built in. Infinishield includes Secure Boot, Secure Firmware-Over-the-Air updates, Secure Key Storage and Encrypted Configuration, while Percepxion provides remote updates and device management.
Ideal For
- Adding Ethernet and dual-band Wi-Fi connectivity to OEM smart connected products
- Using xPico 240 as a network co-processor for an embedded microcontroller
- Using xPico 240 as a wireless MCU with the provided SDK
- Providing direct wireless service access through Concurrent Soft AP + client mode without disrupting machine field operations
Specifications
| TLS | SSLv3/TLS 1.2 with PKI and X.509 Certificates (up to 4096-bit Keys) |
| Gpios | 12 Programmable I/O Pins (GPIOs) |
| Series | XPico 240 |
| Channels | Channels 1-13, UNII-1, 2a, 2e and 3 |
| Security | Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates; Secure Key Storage, Encrypted Configuration |
| Packaging | Tray |
| Data Rates | 9600 bps to 4 Mbps (software selectable) |
| Form Factor | Edge Connector |
| System Pins | RESET, DEFAULT, WAKE |
| Fast Roaming | 802.11r fast roaming |
| Flow Control | RTS/CTS; XON/XOFF |
| AES Algorithm | 256-bit, 192-bit, 128-bit |
| Channel Width | 20 and 40 MHz channel width with optional SGI |
| Host Interface | USB (Host) |
| Wi-Fi Security | AES/CCMP and TKIP encryption, WPA/WPA2 Personal; WPA2 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST) |
| Wireless Modes | Concurrent Soft AP + STA (Client), Client, Soft AP |
| Concurrent Mode | Up to 4 in Concurrent Mode |
| Control Signals | DTR/DCD |
| Frequency Bands | Dual Band 2.4 GHz and 5 GHz |
| Management Apis | REST, MQTT |
| Protocol Support | DHCP Client, Server (Soft AP), HTTP Server/Client; IPv4, TCP/IP, UDP/IP, ARP, ICMP, Auto-IP, DNS; SNMP v1/v2; IPv6 |
| Serial Interface | UART Port TTL |
| Discovery Protocol | Lantronix Discovery Protocol (77FE) |
| Wireless Standards | IEEE 802.11 a/b/g; 802.11 n (1×1) |
| Internal Web Server | HTTP/HTTPS |
| Management Platform | Lantronix Percepxion™ Cloud Software Platform |
| Max 80211 N Data Rate | Up to 150 Mbps |
| Ethernet Specifications | IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII) |
| Max 80211 A B G Data Rate | Up to 54 Mbps |
| Soft Ap Client Connections | Up to 5 simultaneous client connections to Soft AP interface |
Documentation
Additional pdf1
Manufacturer Brochure
User Manual
Product Brief
xPico 240 Product Brief (A4)
Cert, IC, xPico 200
Cert, Bureau Veritas Certificate of Conformity, xPico 200
Environmental Certs RoHS and REACH_xPico®200
CERTIFICATION, XPICO 270, EU/CE DOC, CERTIFICATES CE
Cert, EU RED NBO certificate, xPico 240/xPico 250/xPico 270 CE
Frequently Asked Questions
Does XPC240400B-02 support dual-band Wi-Fi?▾
Yes. The xPico 240 supports dual-band 2.4 GHz and 5 GHz Wi-Fi with IEEE 802.11 a/b/g and 802.11 n (1×1).
What configuration does XPC240400B-02 ship in?▾
This SKU is the edge connector configuration with an on-module antenna and tray packaging.
Does xPico 240 support Percepxion management?▾
Yes. Management interfaces include the Lantronix Percepxion™ Cloud Software Platform, REST and MQTT, with secure firmware upgrade via HTTPS and Percepxion™.
What input voltage does the module require?▾
The input voltage is 3.3VDC.
